STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-25080-01iBU6#,7#,8#,9#..DYN198508-198708

BLACK,BLACK

main45100-25080-04iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

main45100-36100iBU6#,70,8#,9#198409-198508

45125MARK, STEERING WHEEL PAD

main45125-25030-01iBU6#,7#,8#,9#..DYN198508-198708

BLACK,BLACK

main45125-25030-04iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

main45125-36030iBU6#,70,8#,9#198409-198508

sub45125-25020

45129BUTTON, HORN, NO.2

main45129-36010iBU6#,7#,8#,9#198409-198708

45130BUTTON ASSY, HORN

main45130-25060-01iBU6#,7#,8#,9#..DYN198508-198708

BLACK,BLACK

main45130-25060-04iBU6#,77,8#,9#..TOY198508-198708

BLUE,BLUE

main45130-36080iBU6#,70,8#,9#198409-198508

45131BUTTON, HORN, NO.1

main45131-36050iBU6#,7#,8#,9#198409-198708

45136PLATE, HORN BUTTON CONTACT

main45136-26020×2iBU6#,7#,8#,9#198409-198708

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iBU6#,70,8#,9#198409-198508

main90945-02040iBU6#,7#,8#,9#198508-198708

45146SPRING, HORN BUTTON CONTACT

main45146-36010×2iBU6#,7#,8#,9#198409-198708

45201PNUT, STEERING WHEEL SET

main90179-12086iBU6#,7#,8#,9#198409-198708

45207RING, HORN CONTACT

main45176-20030iBU6#,7#,8#,9#198409-198708

9331915014

main93319-15014

9351013010

main93510-13010

9351015014

main93510-15014

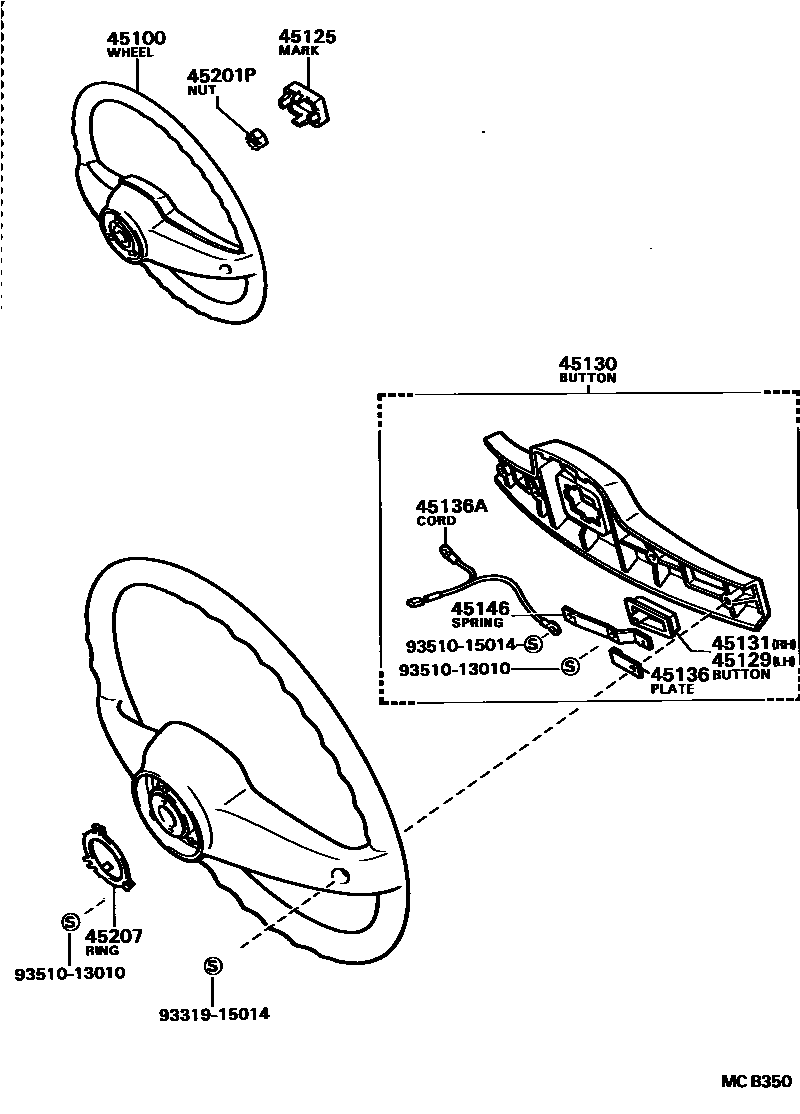

13 parts on this diagram · 1 diagram in section
