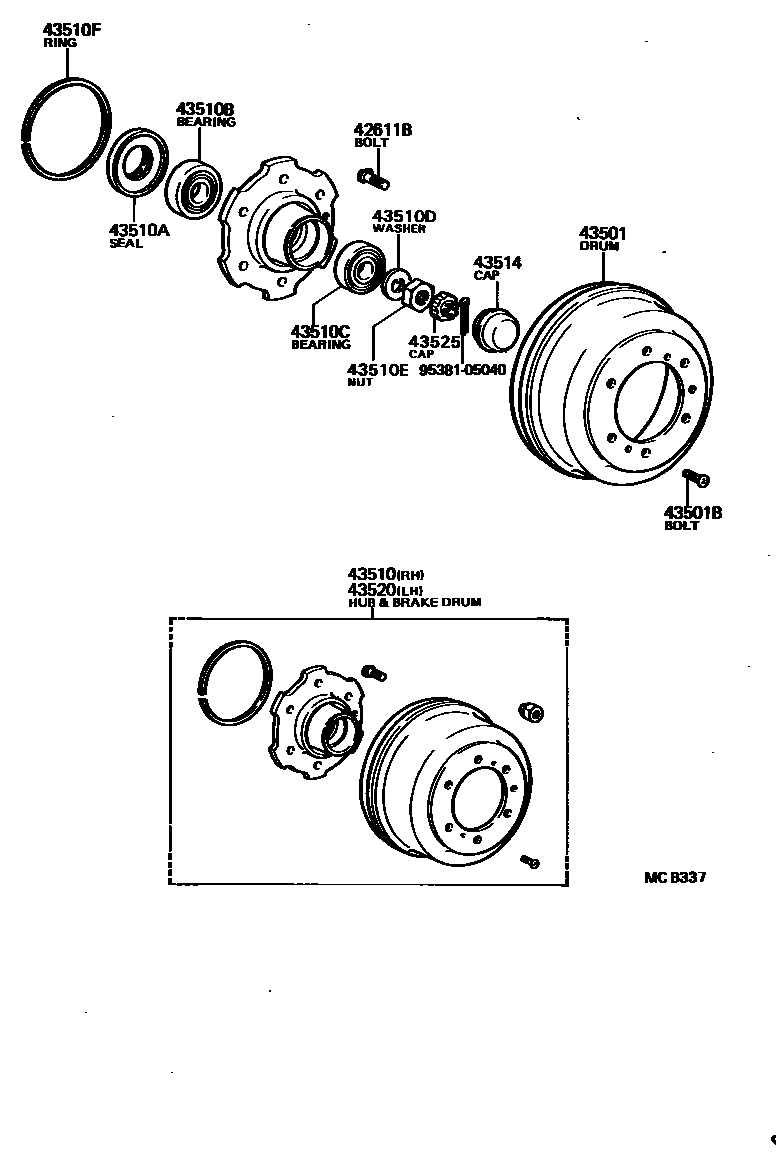

FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1 0005 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024×6iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

RH

main90942-02025×6iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

LH

main90942-02045×6iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1,TW4)..WT198409-198708

RH

main90942-02046×6iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1,TW4)..WT198409-198708

LH

main90942-02050×6iBU60,61,62,80,81..T4,TW4198409-198708

RH

main90942-02051×6iBU60,61,62,80,81..T4,TW4198409-198708

LH

main90942-02061iBU60,61,62,80,81..T4,TW4198608-198708

RH,FR DISC

main90942-02062iBU60,61,62,80,81..T4,TW4198608-198708

LH,FR DISC

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-36060×2iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

main43512-36090×2iBU60,61,62,80,81..T4,TW4198409-198708

main43512-36100×2iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main43512-36110×2iBU90,95198409-198708

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035×2iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36110iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

main43510-36120iBU60,61,62,80,81..T4,TW4198409-198708

main43510-36130iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main43510-36140iBU90,95198409-198708

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90033-19001×2iBU90,95198409-198708

main90311-68001×2iBU6#,7#,8#,93,98198409-198708

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045×2iBU6#,7#,8#,93,98198409-198708

main90368-50001×2iBU90,95198409-198708

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001×2iBU6#,7#,8#,93,98198409-198708

main90368-35001×2iBU90,95198409-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001×2iBU6#,7#,8#,93,98198409-198708

main90214-33001×2iBU90,95198409-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001×2iBU6#,7#,8#,93,98198409-198708

main90171-33001×2iBU90,95198409-198708

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065×2iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

43514CAP, FRONT HUB GREASE

main43514-36030×2iBU6#,7#,8#,93,98198409-198708

main43514-37020×2iBU90,95198409-198708

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36110iBU85..T2;BU60..T3..ST;BU61,62..(DM2,T2,T3)..20T;BU60,70,80,81..HRF,SRF,T1,T2,TW1,TW2198409-198708

main43520-36120iBU60,61,62,80,81..T4,TW4198409-198708

main43520-36130iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main43520-36140iBU90,95198409-198708

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010×2iBU6#,7#,8#,93,98198409-198708

9538105040

main95381-05040

14 parts on this diagram · 5 diagrams in section
