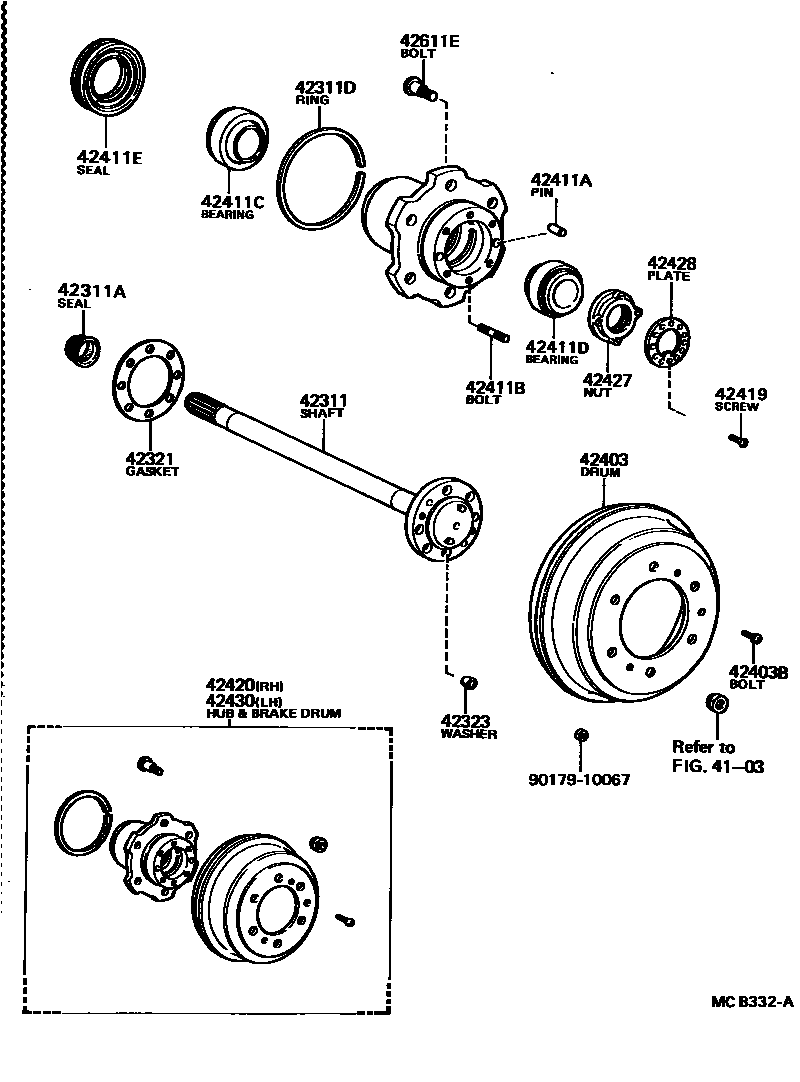

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

4103

42311SHAFT, REAR AXLE

main42311-25050×2iBU62..DTP;BU85..20T..TD;BU62,82,85,93,98..275,30T198409-198708

main42311-36050×2iBU77,82,85..(T3,TW1)..20T..DSL198409-198708

sub42311-36051

main42311-36070×2iBU60..T3..WT198409-198708

sub42311-36071

main42311-36090×2iBU60,61,62..DM2,T2,TW2198409-198708

sub42311-36091

main42311-36100×2iBU80,81,85..T2198409-198708

sub42311-36101

main42311-36130×2iBU90,95198409-198708

sub42311-36131

main42311-36140×2iBU64..DMP198409-198708

main42311-36150×2iBU60,61,62..T4,TW4198409-198708

sub42311-36151

main42311-36160×2iBU80,81..T4198409-198708

sub42311-36161

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-38033×2iBU85..20T..DSL;BU62,85..BTP,CTP,ETP;BU62,82..(T3,TW1)..20T;BU62..DM2,DM3,T2,T4,TW1;BU60,61,64,7#,80,81..TR,V198409-198708

main90310-40001×2iBU62..DTP;BU64..DMP;BU85..20T..TD;BU62,82,85,93,98..275,30T198409-198708

main90310-41001×2iBU90,95198409-198708

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-99065×2iBU60,61,62,70..ST198409-198708

42321GASKET, REAR AXLE SHAFT

main42321-36020×2iBU90,95198409-198708

main42321-36030×2iBU6#,7#,8#,93,98198409-198708

sub42321-36040

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010×12iBU6#,7#,8#,93,98198409-198708

main42323-36020×12iBU90,95198409-198708

42403DRUM SUB-ASSY, REAR BRAKE

main42431-36090×2iBU60,61,62,80,81,85..DM2,T2,TW2198409-198708

main42431-36100×2iBU60,61,62,80,81..T4,TW4198409-198708

main42431-36110×2iBU90,95198409-198708

main42431-36120×2iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

main43512-36020×2iBU60,61,62,70..ST198409-198708

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10035×2iBU60,61,62,70..ST198409-198708

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-10055×4iBU6#,7#,8#,93,98198409-198708

main90250-13066×4iBU90,95198409-198708

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-10191×12iBU6#,7#,8#,93,98198409-198708

main90116-12009×12iBU90,95198409-198708

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90368-57010×2iBU6#,7#,8#,93,98198409-198708

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-52043×2iBU6#,7#,8#,93,98198409-198708

42411ESEAL, OIL (FOR REAR AXLE HUB)

main42404-36010×2iBU6#,70,8#198409-198412

main90311-75003×2iBU6#,7#,8#,93,98198412-198708

main90311-88102×2iBU90,95198409-198708

42419SCREW, REAR AXLE BEARING LOCK NUT

main93311-16012×4iBU6#,7#,8#,93,98198409-198708

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-36050iBU60,61,62,70..ST198409-198708

main42420-36100iBU60,61,62,80,81,85..DM2,T2,TW2198409-198708

sub42420-29035

main42420-36110iBU60,61,62,80,81..T4,TW4198409-198708

main42420-36120iBU90,95198409-198708

main42420-36130iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

sub42420-37040

42427NUT, REAR AXLE BEARING LOCK

main42427-36020×2iBU90,95198409-198708

main42427-36030×2iBU6#,7#,8#,93,98198409-198708

42428PLATE, REAR AXLE LOCK NUT

main42428-36020×2iBU6#,7#,8#,93,98198409-198708

main90214-57002×2iBU90,95198409-198708

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-36050iBU60,61,62,70..ST198409-198708

main42430-36100iBU60,61,62,80,81,85..DM2,T2,TW2198409-198708

sub42430-29035

main42430-36110iBU60,61,62,80,81..T4,TW4198409-198708

main42430-36120iBU90,95198409-198708

main42430-36130iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,93,98..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

sub42430-37040

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02024iBU60,61,62,70..ST198409-198708

RH

main90942-02025iBU60,61,62,70..ST198409-198708

LH

main90942-02045iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

RH

main90942-02046iBU62,85..BTP,CTP,DTP,ETP;BU60,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1)..WT198409-198708

LH

main90942-02050iBU60,61,62,80,81,85..DM2,T2,T4,TW2,TW4198409-198708

RH

main90942-02051iBU60,61,62,80,81,85..DM2,T2,T4,TW2,TW4198409-198708

LH

9017910067

main90179-10067

20 parts on this diagram · 4 diagrams in section
