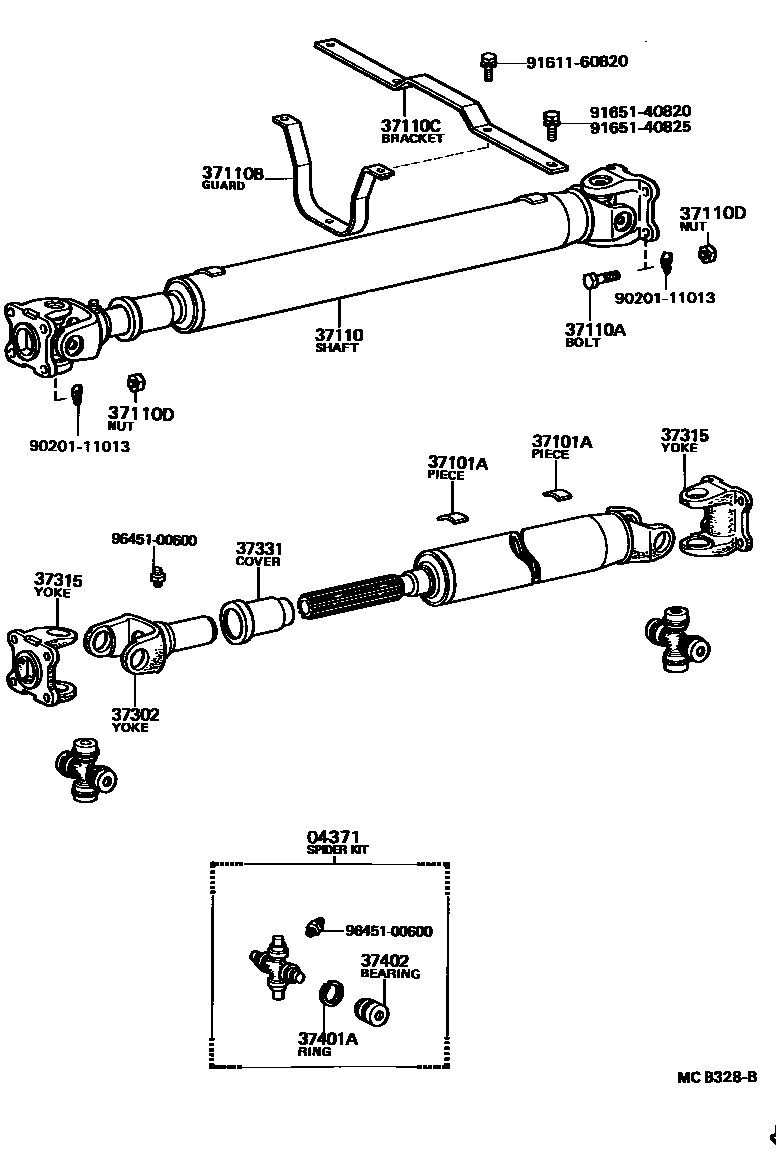

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-36030iBU6#,7#,8#,9#198409-198708

sub04371-60210

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iBU6#,7#,8#,9#198409-198608

main90937-01136iBU6#,7#,8#,9#198409-198608

main90937-01140iBU6#,7#,8#,9#198409-198608

main90937-01147iBU6#,7#,8#,9#198409-198708

main90937-01148iBU6#,7#,8#,9#198409-198708

main90937-01149iBU6#,7#,8#,9#198409-198708

main90937-01150iBU6#,7#,8#,9#198409-198708

main90937-01151iBU6#,7#,8#,9#198409-198708

main90937-01152iBU6#,7#,8#,9#198409-198708

main90937-01153iBU6#,7#,8#,9#198409-198608

main90937-01154iBU6#,7#,8#,9#198409-198608

main90937-01155iBU6#,7#,8#,9#198409-198608

main90937-01156iBU6#,7#,8#,9#198409-198608

main90937-01157iBU6#,7#,8#,9#198409-198608

main90937-01158iBU6#,7#,8#,9#198409-198608

37110SHAFT ASSY, PROPELLER

main37110-36500iBU6#..5F..(CBU,IV3)198409-198708

main37110-36510iBU62..4FC198409-198708

main37110-36520iBU70198409-198708

main37110-36530iBU77198508-198708

main37110-36550iBU80,81,82198409-198708

main37110-36560iBU85..DSL198409-198708

main37110-36570iBU85..TD198409-198708

main37110-36590iBU90198409-198708

main37110-36600iBU98198508-198708

main37110-36610iBU93,95198409-198708

main37110-36620iBU62..IV4198410-198708

37110ABOLT (FOR PROPELLER SHAFT)

main90105-11013iBU6#,7#,8#,9#198409-198708

37110BGUARD, PROPELLER SHAFT

main51569-36060iBU85..T2198409-198708

main51569-36070iBU85,90,95..TD198409-198708

main51569-36080iBU98198510-198708

main51569-36090iBU64198409-198708

main51569-36100iBU60,61,62,80,81,82..5F..WT198409-198708

37110CBRACKET, PROPELLER SHAFT GUARD

main51568-36020iBU60,61,62,8#,90,95198409-198708

main51568-36050iBU98198510-198708

main51568-36070iBU64198409-198708

37110DNUT (FOR PROPELLER SHAFT)

main90179-11005iBU6#,7#,8#,9#198409-198708

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-36010iBU6#,70,8#,9#198409-198508

main37302-36020iBU6#,7#,8#,9#198508-198708

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-36020iBU6#,7#,8#,9#198409-198708

sub37315-60090

37331COVER, SLIDING SHAFT DUST

main37305-36010iBU6#,70,8#,9#198409-198508

main37305-36020iBU6#,7#,8#,9#198508-198708

37401SPIDER KIT, UNIVERSAL JOINT

main90520-29024

main90520-29025

main90520-29026

main90520-29027

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-29024iBU6#,7#,8#,9#198409-198708

main90520-29025iBU6#,7#,8#,9#198409-198708

main90520-29026iBU6#,7#,8#,9#198409-198708

main90520-29027iBU6#,7#,8#,9#198409-198708

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-36080iBU6#,7#,8#,9#198409-198708

9020111013

main90201-11013

9161160820

main91611-60820

9165140820

main91651-40820

9165140825

main91651-40825

9645100600

main96451-00600

18 parts on this diagram · 2 diagrams in section
