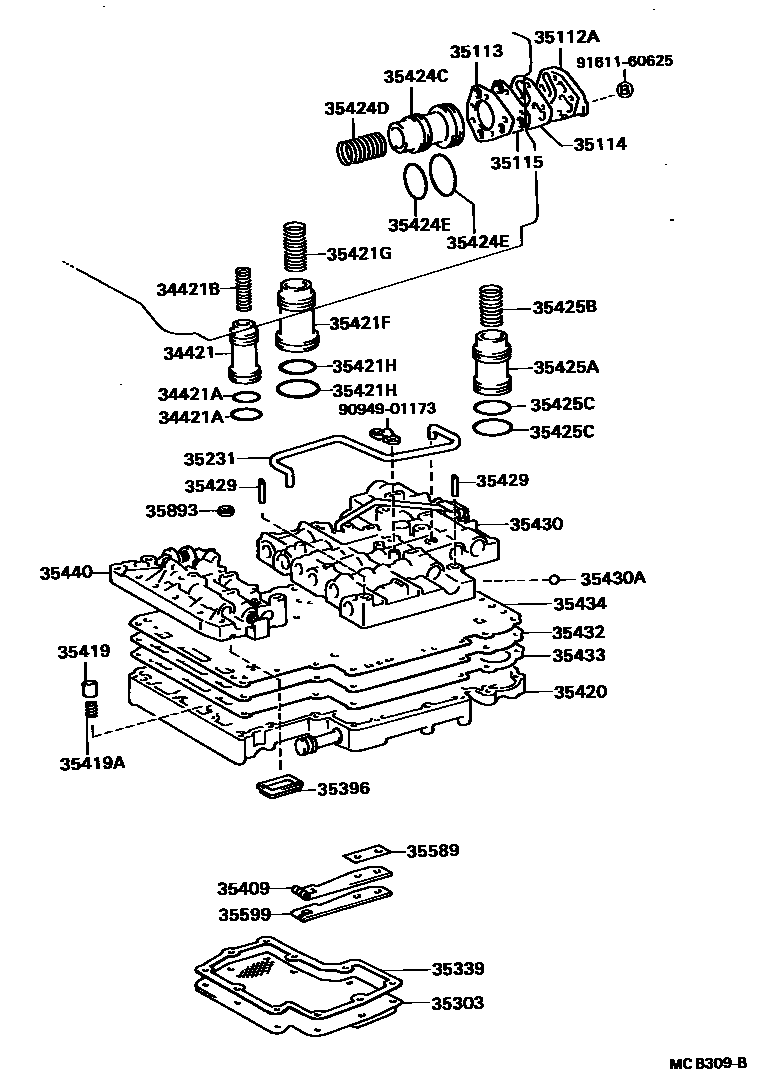

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

34421PISTON, OVERDRIVE BRAKE ACCUMULATOR

main34421-36010iBU62,85..4FC198409-198708

sub34421-37010

34421ARING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

main90301-26003iBU62,85..4FC198409-198708

UPR

main90301-29003iBU62,85..4FC198409-198708

LWR

34421BSPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

main90501-32013iBU62,85..4FC198409-198708

35112ACOVER, FRONT CLUTCH ACCUMULATOR

main35112-36010iBU62,85..4FC198409-198708

35113GASKET, FRONT CLUTCH ACCUMLATOR, NO.2

main35113-36010iBU62,85..4FC198409-198708

sub35113-60010

35114GASKET, FRONT CLUTCH ACCUMLATOR, NO.1

main35114-36010iBU62,85..4FC198409-198708

sub35114-60010

35115PLATE, FRONT CLUTCH ACCUMULATOR

main35115-36010iBU62,85..4FC198409-198708

35231TUBE, LOCK UP SIGNAL VALVE APPLY

main35231-36010iBU62,85..4FC198409-198708

FRXRR VALVE BODY

main35231-36020iBU62,85..4FC198409-198708

RR VALVE BODY

35303STRAINER SUB-ASSY, OIL

main35303-36010iBU62,85..4FC198409-198708

35339GASKET, OIL STRAINER

main35339-36010iBU62,85..4FC198409-198708

sub35339-60020

35396STRAINER, THROTTLE OIL

main35396-36010iBU62,85..4FC198409-198708

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-36010iBU62,85..4FC198409-198708

35419VALVE, CHECK, NO.1

main35419-36010iBU62,85..4FC198409-198708

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-10098iBU62,85..4FC198409-198708

35420BODY ASSY, LOWER VALVE

main35420-36010iBU62,85..4FC198409-198411

main35420-36011iBU62,85..4FC198411-198509

main35420-36012iBU62,85..4FC198509-198708

sub35420-36013

35421FPISTON, ACCUMULATOR, NO.2

main35423-36010iBU62,85..4FC198409-198708

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-40008iBU62,85..4FC198409-198708

35421HRING (FOR ACCUMULATOR PISTON NO.2)

main90301-29003iBU62,85..4FC198409-198708

UPR

main90301-37004iBU62,85..4FC198409-198708

LWR

35424CPISTON, C-1 ACCUMULATOR

main35424-36010iBU62,85..4FC198409-198708

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-27008iBU62,85..4FC198409-198708

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-22003iBU62,85..4FC198409-198708

UPR

main90301-24002iBU62,85..4FC198409-198708

LWR

35425APISTON, C-2 ACCUMULATOR

main35425-36010iBU62,85..4FC198409-198708

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-35009iBU62,85..4FC198409-198708

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-28003iBU62,85..4FC198409-198708

UPR

main90301-33006iBU62,85..4FC198409-198708

LWR

35429TUBE, LINE PRESSURE

main35429-36010×2iBU62,85..4FC198409-198708

35430BODY ASSY, REAR UPPER VALVE

main35430-36020iBU62..4FC..WT198409-198601

main35430-36030iBU85..4FC198409-198601

main35430-36040iBU62..4FC..ST198409-198601

*AXC=L404

main35430-36041iBU62..4FC..ST198601-198708

*AXC=L404

main35430-36050iBU62..4FC..ST198409-198708

*AXC=L154

main35430-36060iBU62..CTP198508-198601

*AXC=L234

main35430-36070iBU62,85..4FC..WT198601-198708

35430ABALL (FOR REAR UPPER VALVE BODY)

main90360-06004×7iBU62,85..4FC198409-198708

35432PLATE, VALVE BODY, NO.1

main35432-36010iBU62,85..4FC198409-198708

sub35432-36011

35433GASKET, VALVE BODY, NO.1

main35433-36010iBU62,85..4FC198409-198708

35434GASKET, VALVE BODY, NO.2

main35434-36010iBU62,85..4FC198409-198708

35440BODY ASSY, FRONT UPPER VALVE

main35440-36010iBU62,85..4FC198409-198708

sub35440-36011

35589SPACER, MANUAL DETENT SPRING

main35589-36010iBU62,85..4FC198409-198708

35599COVER, MANUAL DETENT SPRING

main35599-36010iBU62,85..4FC198409-198708

35893GASKET, CENTER SUPPORT APPLY

main35893-36010×4iBU62,85..4FC198409-198708

9094901173

main90949-01173

9161160625

main91611-60625

36 parts on this diagram · 5 diagrams in section
