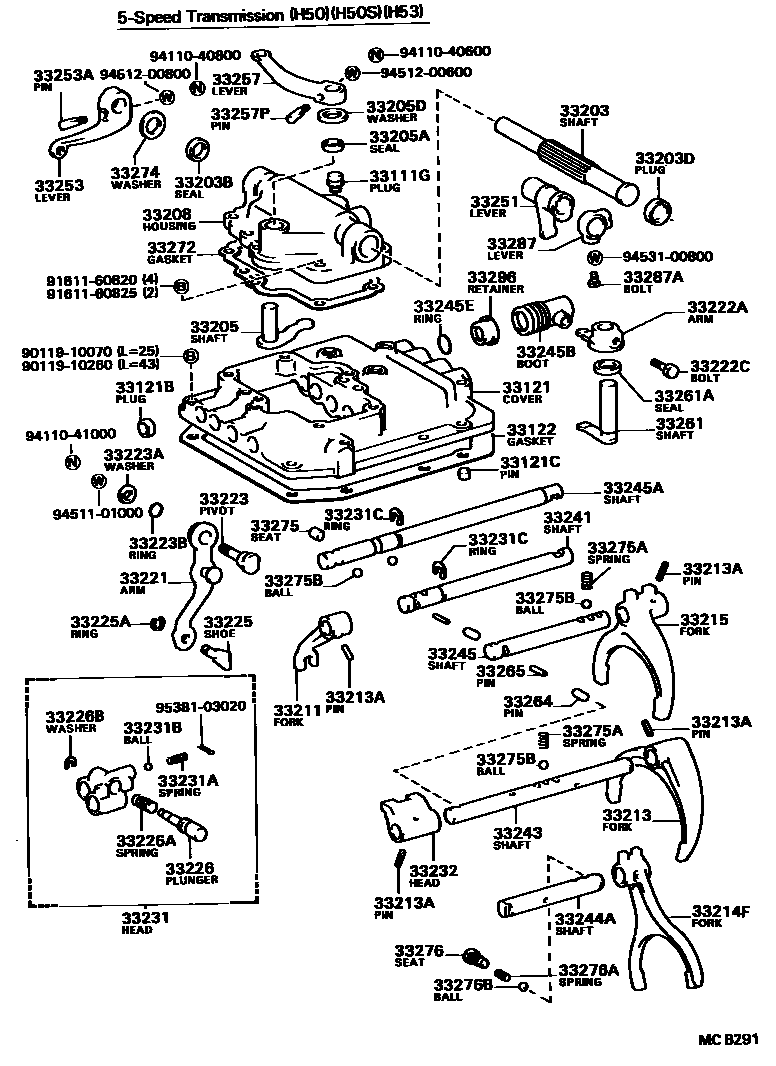

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0004 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03090iBU6#,7#,8#,9#..5F198409-198708

33121COVER, MANUAL TRANSMISSION CASE

main33121-36080iBU6#,70,8#..5F..DSL198409-198708

main33121-36090iBU85,9#..TD198409-198508

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90331-16050iBU62..IV4198409-198609

sub96411-11600

main96411-11600iBU62..IV4198609-198708

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iBU6#,70,8#,9#..5F198409-198708

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-36011iBU85,9#..TD198409-198508

main33122-36020iBU62..IV4198409-198708

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-36012iBU85,9#..TD198409-198508

main33261-36040iBU6#,70,8#..5F..DSL198409-198708

main33261-36060iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

main90312-17001iBU6#,70,8#,9#..5F198409-198708

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main90331-20044iBU6#,70,8#..5F..DSL198409-198708

main96411-12500iBU85,9#..TD198409-198508

sub96411-42500

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-36031iBU85,9#..TD198409-198508

main33205-36050iBU6#,70,8#..5F..DSL198409-198708

main33262-36050iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iBU6#,7#,8#,9#..5F198409-198708

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iBU6#,7#,8#,9#..5F198409-198708

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33271-36060iBU6#,70,8#..5F..DSL198409-198708

W/EXHAUST BRAKE

main33271-36070iBU62..T4;BU60,61,70,80,81198409-198508

sub33271-36060

sub90341-16013

main33271-36090iBU85,9#..TD198409-198508

33211FORK, REVERSE SHIFT

main33211-36011iBU85,9#..TD198409-198508

main33211-36020iBU6#,70,8#..5F..DSL198409-198708

33213FORK, 1ST & 2ND SHIFT

main33212-36011iBU6#,70,8#..5F..DSL198409-198708

main33212-36020iBU85,9#..TD198409-198508

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05016iBU62..IV4198409-198708

33214FORK, 2ND & 3RD SHIFT

main33213-36041iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

33214FFORK, 5TH SHIFT

main33214-36030iBU6#,70,8#..5F..DSL198409-198708

main33214-36041iBU85,9#..TD198409-198508

33215FORK, 3RD & 4TH SHIFT

main33213-36020iBU6#,70,8#..5F..DSL198409-198708

main33213-36030iBU85,9#..TD198409-198508

33221ARM, REVERSE SHIFT

main33201-36030iBU85,9#..TD198409-198508

main33201-36040iBU62..IV4198409-198708

33222AARM, 5TH SHIFT

main33222-36020iBU6#,70,8#..5F..DSL198409-198708

main33222-36040iBU85,9#..TD198409-198508

33222CBOLT(FOR 5TH SHIFT ARM)

main90105-08079iBU85,9#..TD198409-198508

33223PIVOT, SHIFT ARM

main33223-36020iBU62..IV4198409-198708

33223AWASHER(FOR SHIFT ARM PIVOT)

main90201-10092iBU6#,70,8#,9#198409-198708

33223BRING, O(FOR SHIFT ARM PIVOT)

main96711-19010iBU6#,70,8#,9#..5F198409-198708

33225SHOE, SHIFT ARM

main33225-36030iBU62..IV4198409-198708

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main90520-08098iBU62..IV4198409-198708

33226PLUNGER, REVERSE SHIFT RETURN

main33226-36011iBU85,9#..TD198409-198508

main33226-36020iBU6#,70,8#..5F..DSL198409-198708

33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)

main90501-16029iBU6#,70,8#..5F..DSL198409-198708

main90501-16051iBU85,9#..TD198409-198508

33226BWASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)

main90213-06001iBU62..IV4198409-198708

33231HEAD, REVERSE SHIFT

main33202-36030iBU6#,70,8#..5F..DSL198409-198708

main33202-36040iBU85,9#..TD198409-198508

33231ASPRING, REVERSE SHIFT RESTRICT

main90501-09031iBU85,9#..TD198409-198508

main90501-12019iBU62..IV4198409-198708

33231BBALL, REVERSE SHIFT RESTRICT

main90360-06004iBU6#,70,8#,9#..5F198409-198708

33231CRING(FOR REVERSE SHIFT HEAD)

main90523-15025iBU6#,70,8#,9#..5F198409-198708

33232HEAD, 1ST & 2ND SHIFT

main33232-36020iBU85,9#..TD198409-198508

main33232-36040iBU62..IV4198409-198708

33241SHAFT, REVERSE SHIFT FORK

main33241-36021iBU62..IV4198409-198708

main33241-36050iBU85,9#..TD198409-198508

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-36030iBU85,9#..TD198409-198508

sub33242-36031

main33242-36040iBU6#,70,8#..5F..DSL198409-198708

33244SHAFT, 2ND & 3RD SHIFT FORK

main33243-36061iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

33244ASHAFT, 5TH SHIFT FORK

main33244-36010iBU6#,70,8#..5F..DSL198409-198708

main33244-36030iBU85,9#..TD198409-198508

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-36020iBU6#,70,8#..5F..DSL198409-198708

main33243-36031iBU85,9#..TD198409-198508

33245ASHAFT, 5TH SHIFT ARM

main33245-36021iBU6#,70,8#..5F..DSL198409-198708

main33245-36030iBU85,9#..TD198409-198508

sub33245-60032

33245BBOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-36040iBU85,9#..TD198409-198508

33245ERING, O (FOR 5TH SHIFT ARM SHAFT)

main96711-19016iBU85,9#..TD198409-198508

33251LEVER, SHIFT & SELECT

main33251-36013iBU85,9#..TD198409-198508

main33251-36030iBU6#,70,8#..5F..DSL198409-198508

W/EXHAUST BRAKE

main33251-36030iBU62..IV4198508-198708

main33251-36050iBU62..T4;BU60,61,70,80,81198409-198508

sub33251-36030

main33251-36090iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

33253LEVER, SHIFT OUTER, NO.1

main33253-36050iBU6#,70,80,81,82..5F198409-198708

main33253-36080iBU85..5F..DSL198409-198508

main33253-36090iBU85,9#..TD198409-198508

main33253-36100iBU6#,70,80,81,82..5F..(CBU,IV3)198508-198708

main33253-36110iBU77,85,9#..5F198508-198708

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-36030iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

main33282-57010iBU6#,70,8#,9#..5F198409-198708

33257LEVER, SELECT OUTER

main33257-36050iBU6#,70,80,81,82..5F198409-198708

main33257-36070iBU85..5F..DSL198409-198508

main33257-36080iBU85,9#..TD198409-198508

main33257-36090iBU6#,70,80,81,82..5F..(CBU,IV3)198508-198708

main33257-36100iBU77,85,9#..5F198508-198708

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBU6#,7#,8#,9#..5F198409-198708

33261SHAFT, 5TH SHIFT ARM

main33251-36080iBU85,9#..TD198409-198508

33261ASEAL, OIL (FOR 5TH SHIFT ARM SHAFT)

main90312-17001iBU85,9#..TD198409-198508

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

main90361-10008iBU6#,70,8#..5F..DSL198409-198708

main90361-10037iBU85,9#..TD198409-198508

33265PIN, SHIFT INTERLOCK, NO.2

main90250-10014iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

main90361-05001iBU6#,70,8#,9#..5F198409-198708

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-36011iBU85,9#..TD198409-198508

main33272-36020iBU6#,70,8#..5F..DSL198409-198708

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main90201-17048iBU85,9#..TD198409-198508

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90250-10215iBU62..IV4198409-198708

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14237iBU6#,70,8#..5F..DSL198409-198708

main90501-14772iBU85,9#..TD198409-198508

main90501-16099iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

sub90501-16145

33275BBALL, SHAFT DETENT

main90360-10003iBU6#,7#,8#,9#..5F198409-198708

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-10004iBU85,9#..TD198409-198508

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-16075iBU85,9#..TD198409-198508

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iBU85,9#..TD198409-198508

33287LEVER, SWITCH PRESSURE

main33287-36012iBU85,9#..TD198409-198508

33287ABOLT, SHAFT RETAINING

main33454-12010iBU85,9#..TD198409-198508

33296RETAINER, SHIFT FORK SHAFT

main33296-36010iBU85,9#..TD198409-198508

9011910070

main90119-10070

9011910260

main90119-10260

9161160820

main91611-60820

9161160825

main91611-60825

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451101000

main94511-01000

9451200600

main94512-00600

9451200800

main94512-00800

9453100800

main94531-00800

9538103020

main95381-03020

74 parts on this diagram · 3 diagrams in section
