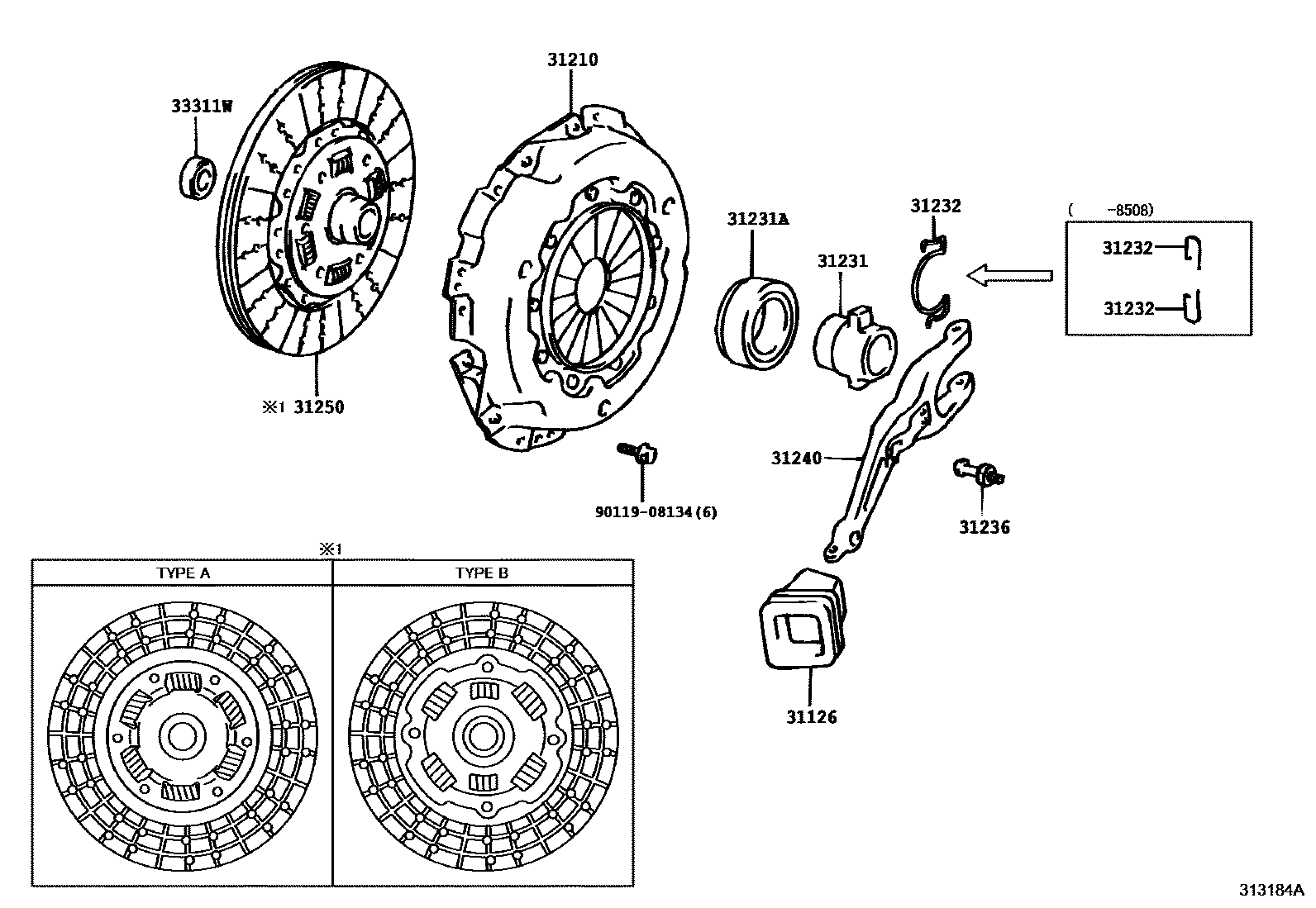

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iBU62..IV4198508-198708

main31126-20060iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

31210COVER ASSY, CLUTCH

main31210-36100iBU6#,7#,8#,93,98..5F..DSL198409-198708

main31210-36110iBU85,90,95..TD198409-198708

sub31210-36111

31231HUB, CLUTCH RELEASE BEARING

main31231-36062iBU6#,70,8#..5F..DSL198409-198508

main31231-36080iBU85,9#..TD198409-198508

main31231-36090iBU6#,7#,8#,93,98..5F..DSL..(CBU,IV3)198508-198708

main31231-36100iBU85,90,95..TD198508-198708

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-45002iBU6#,7#,8#,93,98..5F..DSL198409-198708

main90363-45009iBU85,90,95..TD198409-198708

sub90363-45013

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-30010×2iBU62..IV4198508-198708

main31232-35010iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

31236BALL, RELEASE FORK

main31236-30040iBU6#,70,8#,9#..5F198409-198508

main31236-35030iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

31240FORK ASSY, CLUTCH RELEASE

main31204-25010iBU6#,70,8#,9#..5F198409-198508

main31204-35030iBU6#,7#,8#,9#..5F..(CBU,IV3)198508-198708

sub31204-35031

31250DISC ASSY, CLUTCH

main31250-36230iBU6#,7#,8#,98..5F..DSL198409-198512

sub31250-36231

main31250-36240iBU85,90,95..TD198409-198701

main31250-36241iBU85,90,95..TD198701-198708

sub31250-36242

main31250-36280iBU6#,7#,8#,93,98..5F..DSL198512-198611

sub31250-36281

main31250-36301iBU6#,7#,8#,93,98..5F..DSL198611-198708

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBU6#,7#,8#,9#..5F198409-198708

sub90363-12024

9011908134

main90119-08134

10 parts on this diagram · 1 diagram in section
