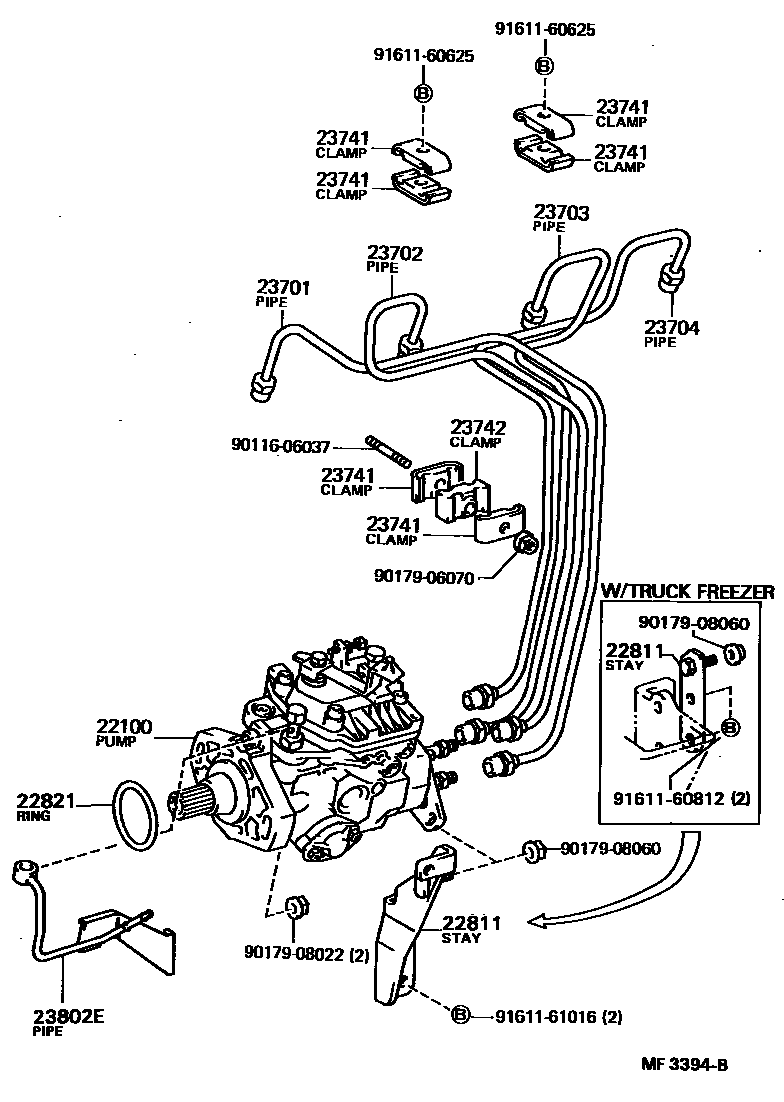

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0005 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56200iB..BU60,70,80198409-198708

main22100-56230i11B..BU61,81198501-198604

main22100-56231i11B..BU61,81198604-198708

main22100-58230i13B..BU62,64,77,82,85,93,98..5F..(CBU,IV3)198409-198604

main22100-58231i13B..BU64,77,82,93,98198604-198708

main22100-58270i13BT..BU85,90,95198409-198509

W/TACHO METER

sub22100-58271

main22100-58271i13BT..BU85,90,95198509-198708

W/TACHO METER

main22100-58320i13B..BU62..IV4198410-198604

main22100-58321i13B..BU62..IV4198604-198708

main22100-58330i13BT..BU85,90,95198409-198509

sub22100-58331

main22100-58331i13BT..BU85,90,95198509-198708

main22100-58340i13B..BU62,85..4FC198409-198512

sub22100-58341

sub35525-36011

main22100-58341i13B..BU62,85..4FC198512-198604

main22100-58343i13B..BU62,85..4FC198604-198708

22811STAY, INJECTION PUMP, NO.1

main22811-56020iB..BU60,70,80198409-198708

main22811-56040i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

main22811-58020iB..BU60..(T2,T4)..ATP198409-198708

W/TRUCK FREEZER

22821GASKET, INJECTION PUMP

main90301-49003iB..BU60,70,80198409-198708

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56050iB..BU60,70,80198409-198708

main23701-56060i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56050iB..BU60,70,80198409-198708

main23702-56060i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56050iB..BU60,70,80198409-198708

main23703-56060i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56050iB..BU60,70,80198409-198708

main23704-56060i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iB,11B,13B#..BU6#,7#,8#,9#198409-198708

23742CLAMP, INJECTION PIPE, NO.2

main23741-56020iB..BU60,70,80198409-198708

sub23741-56021

23802EPIPE SUB-ASSY, FUEL

main23801-56070iB..BU60,70,80198409-198708

9011606037

main90116-06037

9017906070

main90179-06070

9017908022

main90179-08022

9017908060

main90179-08060

9161160625

main91611-60625

9161160812

main91611-60812

9161161016

main91611-61016

17 parts on this diagram · 4 diagrams in section
