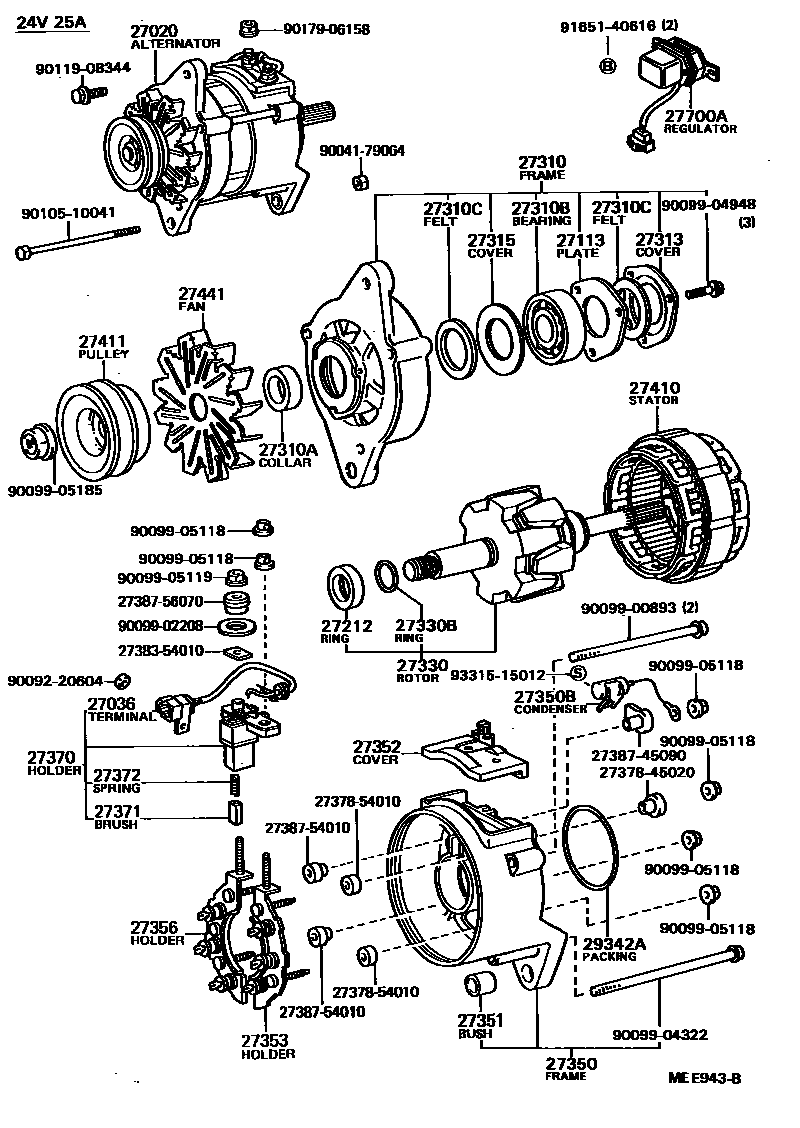

ALTERNATOR

0001 124V 25A 0002 124V 25A 0003 124V 30A 0005 124V 40A

27020ALTERNATOR ASSY

main27020-56110iB,13B#..BU6#,70,8#,9#198409-198412

sub27020-56230

main27020-56310i13B..BU62..BTP;13B..BU62..5F..WT..20T..ATP198409-198412

main27020-56360iB,11B,13B#..BU6#,7#,8#,9#198412-198708

main27020-56370i13B..BU62..BTP;13B..BU62..5F..WT..20T..ATP198412-198608

main27020-56430iB,11B..BU60,61..03S..WT..ATP198605-198608

main27020-56431iB,11B..BU60,61..03S..WT..ATP198608-198708

sub27020-56432

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

main27036-56390i13B..BU62,85..BTP,ETP;13B..BU62..5F..WT..20T..ATP;13B#..BU85,90..5F..(20T,30T,35T)..ATP198605-198708

24V 40A

main27036-57080iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

sub27036-57060

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-56070i13B..BU62,85..BTP,ETP;13B..BU62..5F..WT..20T..ATP;13B#..BU85,90..5F..(20T,30T,35T)..ATP198605-198708

24V 40A

main27312-57060iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

main27412-54040iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54300iB,11B..BU60,61..03S..WT..ATP198608-198708

24V 40A

main27310-56110iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

main27310-56430iB,11B..BU60,61..03S..WT..ATP198605-198608

24V 40A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-57060iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10120iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

main90099-10137iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02207i13B..BU62,85..BTP,ETP;13B..BU62..5F..WT..20T..ATP;13B#..BU85,90..5F..(20T,30T,35T)..ATP198605-198708

24V 40A

main90099-02209×2iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

27313COVER, ALTERNATOR FELT, INNER NO.2

main27313-57060iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27315-56070i13B..BU62,85..BTP,ETP;13B..BU62..5F..WT..20T..ATP;13B#..BU85,90..5F..(20T,30T,35T)..ATP198605-198708

24V 40A

main27315-57060iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

27330ROTOR ASSY, ALTERNATOR

main27330-56110iB,13B#..BU6#,70,8#,9#198409-198412

24V 25A,30A

main27330-56360iB,11B,13B#..BU6#,7#,8#,9#198412-198708

24V 25A,30A

main27330-56430iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

sub27330-56433

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07103iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

main90099-07108i13B..BU62,85..BTP,ETP;13B..BU62..5F..WT..20T..ATP;13B#..BU85,90..5F..(20T,30T,35T)..ATP198605-198708

24V 40A

27350FRAME ASSY, RECTIFIER END

main27350-56110iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

main27350-56430i13B..BU62,85..BTP,ETP;13B..BU62..5F..WT..20T..ATP;13B#..BU85,90..5F..(20T,30T,35T)..ATP198605-198608

24V 40A

main27350-56431iB,11B..BU60,61..03S..WT..ATP198608-198708

24V 40A

27350BCONDENSER, ALTERNATOR

main90099-52066iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

sub90099-52035

main90099-52082iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-56013iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A,40A

27352COVER, FRAME BRUSH

main27388-56430iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

main27388-57060iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

sub27388-56100

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-54020iB,13B#..BU6#,70,8#,9#198409-198412

24V 25A

sub27353-54010

main27353-68150iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

sub27353-54180

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-54020iB,13B#..BU6#,70,8#,9#198409-198412

24V 25A

sub27356-54010

main27356-68150iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-57080iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

sub27370-56210

main27373-57120iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

sub27373-57121

27371BRUSH, ALTERNATOR

main27371-56070×2iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A,40A

sub27371-54412

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A,40A

27410STATOR ASSY, ALTERNATOR

main27410-56110iB,11B,13B#..BU6#,7#,8#,9#198412-198708

24V 25A

main27410-56310iB,11B..BU60,61..03S..WT..ATP198504-198608

24V 30A

main27410-57020iB,13B#..BU6#,70,8#,9#198409-198412

24V 25A

main27410-68150i13B..BU62,85..BTP,ETP;13B..BU62..5F..WT..20T..ATP;13B#..BU85,90..5F..(20T,30T,35T)..ATP198605-198708

24V 40A

sub27410-56430

27411PULLEY, ALTERNATOR

main27411-57060iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

main27411-57061iB,11B..BU60,61..03S..WT..ATP198605-198708

24V 40A

27441FAN, ALTERNATOR

main27441-54070i13B..BU62,85..BTP,ETP;13B..BU62..5F..WT..20T..ATP;13B#..BU85,90..5F..(20T,30T,35T)..ATP198605-198708

24V 40A

main27441-56090iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

27700AREGULATOR ASSY, GENERATOR

main27700-57040iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

main27700-57050iB,11B..BU60,61..03S..WT..ATP198605-198608

24V 40A

sub90099-05118

main27700-57051iB,11B..BU60,61..03S..WT..ATP198608-198708

24V 40A

29342APACKING, VACUUM PUMP

main90099-14055iB,11B,13B#..BU6#,7#,8#,9#198409-198708

24V 25A,30A

2737845020INSULATOR, ALTERNATOR, NO.1

main27378-45020

2737854010INSULATOR, ALTERNATOR, NO.1

main27378-54010

2738354010WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-54010

2738745090INSULATOR, TERMINAL

main27387-45090

2738754010INSULATOR, TERMINAL

main27387-54010

2738756070INSULATOR, TERMINAL

main27387-56070

9004179064

main90041-79064

9009220604

main90092-20604

9009900893

main90099-00893

9009902208

main90099-02208

9009904322

main90099-04322

9009904948

main90099-04948

9009905118

main90099-05118

9009905119

main90099-05119

9009905185

main90099-05185

9010510041

main90105-10041

9011908344

main90119-08344

9017906158

main90179-06158

9165140616

main91651-40616

9331515012

main93315-15012
