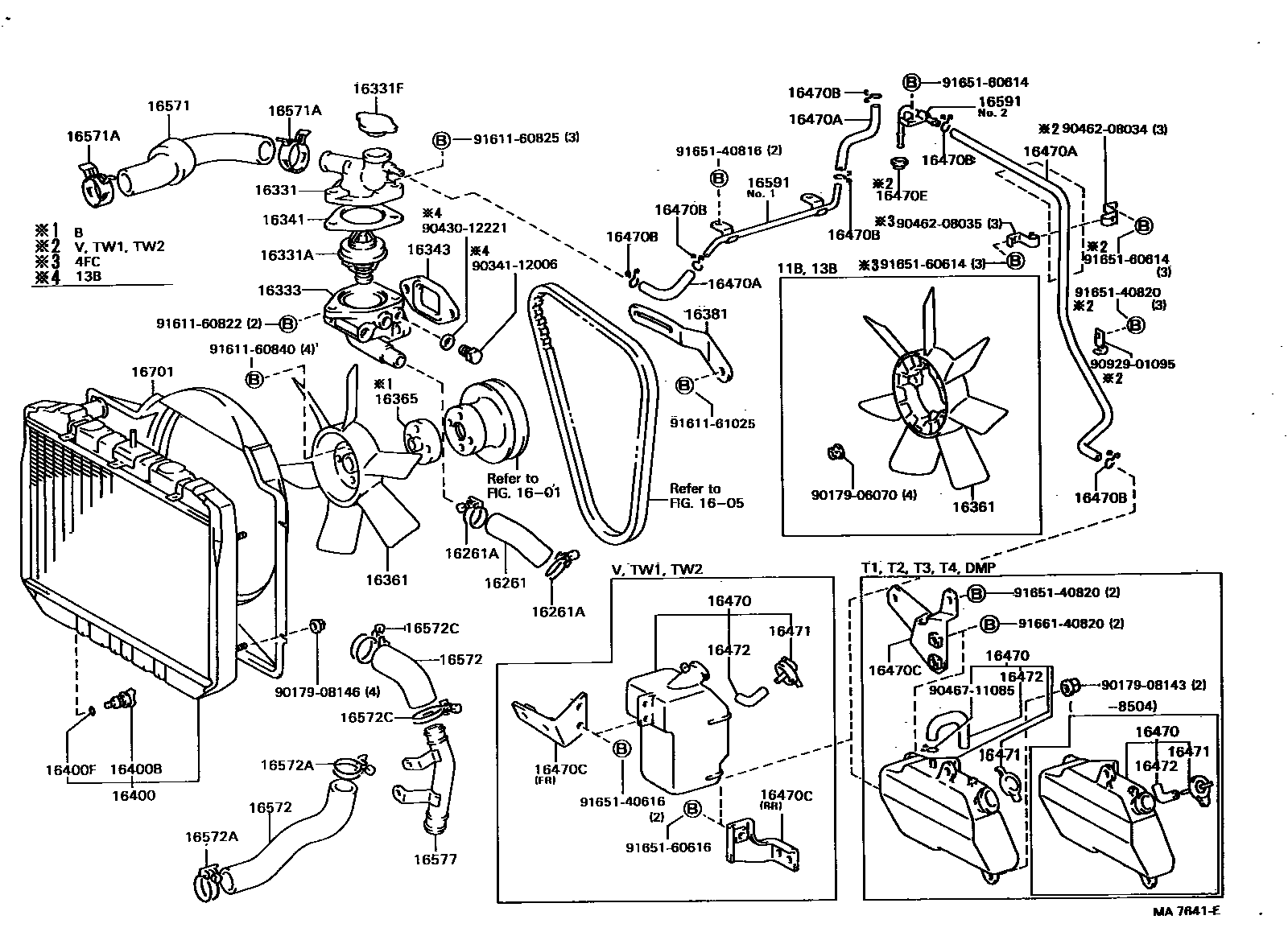

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

1601

1605

16261HOSE, WATER BY-PASS

main16261-56012iB,11B,13B#..BU6#,7#,8#,9#198409-198708

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053iB,11B,13B#..BU6#,7#,8#,9#198409-198609

main90044-67103iB,11B,13B#..BU6#,7#,8#,9#198609-198708

16331OUTLET, WATER

main16331-56020i13B..BU77,85,93,98198409-198708

main16331-56040iB,11B,13B..BU6#,70,80,81,82198409-198708

main16331-58020i13BT..BU85,90,95198409-198708

16331ATHERMOSTAT

main90916-03059iB,11B,13B#..BU6#,7#,8#,9#..CBU,IV3198409-198708

sub90916-03080

main90916-03066i13B..BU62..IV4198410-198708

sub90916-03077

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-71010i13BT..BU85,90,95198409-198708

sub16401-54750

16333HOUSING, WATER OUTLET

main16333-56060iB,11B,13B#..BU6#,7#,8#,9#198409-198708

sub16333-58080

sub16341-56030

sub16343-56023

sub90341-12006

sub90430-12221

sub92122-60832

sub94185-60800

16341GASKET, WATER OUTLET

main16341-56020iB,11B,13B#..BU6#,7#,8#,9#198409-198708

sub16341-56021

16343GASKET, WATER OUTLET HOUSING

main16343-56020iB,11B,13B#..BU6#,7#,8#,9#198409-198708

sub16343-56022

16361FAN

main16361-38010i13B..BU77,85,93,98198409-198708

main16361-56030iB..BU60,70,80198409-198708

main16361-56040iB..BU60..(T2,T4)..ATP198409-198708

W/TRUCK FREEZER

main16361-56040iB..BU60..(T2,T4)..ATP198409-198708

W/COOLER

main16361-56070i13B#..BU85,90..5F..03S..ATP198409-198708

W/TRUCK FREEZER

main16361-56070i13B..BU62..4FC198409-198508

W/COOLER

main16361-56070i13BT..BU85,90,95198409-198708

16365SPACER, FAN

main16365-56020iB..BU60,70,80198409-198708

sub16365-56021

16381BAR, FAN BELT ADJUSTING

main16381-56030iB,11B,13B#..BU6#,7#,8#,9#198409-198708

main16381-56040i11B..BU61..WT..20T..ATP198409-198605

W/TRUCK FREEZER

main16381-56041i13B..BU62..BTP;B,13B..BU60,62..(T2,T4)..5F..ATP198605-198708

W/TRUCK FREEZER

16400RADIATOR ASSY

main16400-58090iB,11B,13B..BU6#,70,80,81,82..5F..(CBU,IV3)198409-198708

main16400-58100i13B..BU62..4FC198409-198501

sub16400-58101

main16400-58101i13B..BU62..4FC198501-198608

main16400-58102i13B..BU62..4FC198608-198708

main16400-58130i13B..BU85..4FC198409-198608

main16400-58131i13B..BU85..4FC198608-198708

sub16400-58132

main16400-58140i13B..BU77,85,98..5F198409-198512

sub16400-58141

main16400-58141i13B..BU77,85,93,98..5F198512-198608

main16400-58142i13B..BU77,85,93,98..5F198608-198708

sub16400-58143

main16400-58150i13B..BU62..IV4198410-198708

main16400-58200i13BT..BU85,90,95198409-198608

main16400-58201i13BT..BU85,90,95198608-198708

sub16400-58202

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i13B#..BU77,85,9#198409-198708

main16417-58090iB,11B,13B..BU6#,70,80,81,82198409-198708

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051iB,11B,13B#..BU6#,7#,8#,9#198409-198708

16470TANK ASSY, RADIATOR RESERVE

main16470-56110i13B..BU82..03S198409-198708

CUSTOM PACK(W/WATER LEVEL SENSOR)

sub16470-56111

main16470-56110i13B..BU62..DM2,T2,T4198409-198708

CUSTOM PACK

sub16470-56111

main16470-56120iB,11B,13B..BU6#,80,81,82..03S198409-198708

sub16470-56121

main16470-56130iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

main16470-58010i13BT..BU85;13B#..BU77,85,90,93,95..TR..03S198409-198708

CUSTOM PACK

main16470-58020i13B#..BU77,85,9#198409-198708

main16470-58030i13B#..BU85,90..5F..03S..ATP198602-198708

W/TRUCK FREEZER

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16575-56010iB,11B,13B..BU6#,80,81,82..03S198508-198708

PIPE TO PIPE

main16575-56020iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198508-198708

PIPE TO PIPE

main90445-12038iB,11B,13B..BU6#,80,81,82..03S198409-198708

main90445-12043iB,11B,13B..BU6#,70,8#198409-198508

sub90445-12078

main90445-12048iB,11B,13B..BU6#,80,81,82..03S198409-198504

sub90445-12043

main90445-12143i13B..BU77,85,93,98198409-198708

main90445-12146i13BT..BU85,90,95198409-198708

main90445-12147iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

main90447-12077i13B#..BU85,90..5F..03S..ATP198602-198708

W/TRUCK FREEZER

main90910-05174iB,11B,13B..BU6#,70,80,81,82198409-198708

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iB,11B,13B#..BU6#,7#,8#,9#198409-198708

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-56050iB,11B,13B..BU6#,80,81,82..03S198409-198708

main16611-56060iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

FR

main16611-56070iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

RR

main16611-58010i13B#..BU85,90..5F..03S..ATP198602-198708

W/TRUCK FREEZER

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-13017iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2198409-198508

main90480-16015iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198508-198708

16471CAP SUB-ASSY, RESERVE TANK

main16405-56050iB,11B,13B..BU6#,80,81,82..03S198409-198504

main16405-56051iB,11B,13B..BU6#,80,81,82..03S198504-198708

sub16405-56052

main16405-56060iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

main16405-56070i13B#..BU77,85,9#198409-198708

main16405-58030i13B#..BU85,90..5F..03S..ATP198602-198708

W/TRUCK FREEZER

16472HOSE, BREATHER

main16472-56110iB,11B,13B..BU6#,80,81,82..03S198409-198504

sub85338-74040

main16472-56130iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198409-198708

main16472-58010i13B#..BU77,85,9#198409-198708

main85338-56110iB,11B,13B..BU6#,80,81,82..03S198504-198708

main90445-12078i13B#..BU85,90..5F..03S..ATP198602-198708

16571HOSE, RADIATOR, INLET

main16571-56040iB,11B,13B..BU6#,70,80,81,82198409-198708

main16571-56050i11B..BU61..WT..20T..ATP198409-198708

W/TRUCK FREEZER

main16571-58030i13B#..BU77,85,9#198409-198708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-42001iB,11B,13B..BU6#,7#,8#,93,98198409-198708

RADIATOR SIDE

sub90467-41002

main96111-10490i13BT..BU85,90,95198602-198708

WATER OUTLET SIDE

main96111-10510i13BT..BU85,90,95198409-198602

WATER OUTLET SIDE

16572HOSE, RADIATOR, OUTLET

main16572-56080iB,11B,13B..BU6#,70,80,81,82198409-198602

WATER PUMP SIDE

sub16572-56081

main16572-56081iB,11B,13B..BU6#,70,80,81,82198602-198708

WATER PUMP SIDE

main16572-58030i13B#..BU77,85,9#198409-198602

sub16572-58031

main16572-58031i13B#..BU77,85,9#198602-198708

main16572-58060i13B#..BU85,90..5F..03S..ATP198602-198608

RADIATOR SIDE,W/TRUCK FREEZER

sub16572-58061

main16572-58061i13B#..BU85,90..5F..03S..ATP198608-198708

RADIATOR SIDE,W/TRUCK FREEZER

main16573-56030iB,11B,13B..BU6#,70,80,81,82198409-198606

RADIATOR SIDE

main16573-56031iB,11B,13B..BU6#,70,80,81,82198606-198708

RADIATOR SIDE

main16573-58010i13B#..BU85,90..5F..03S..ATP198602-198608

ENGINE SIDE,W/TRUCK FREEZER

main16573-58011i13B#..BU85,90..5F..03S..ATP198608-198708

ENGINE SIDE,W/TRUCK FREEZER

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10510i13B#..BU77,85,9#198409-198708

RADIATOR SIDE

main96111-10510i13B#..BU85,90..5F..03S..ATP198602-198708

W/TRUCK FREEZER

main96111-10560i13B#..BU77,85,9#198409-198602

WATER PUMP SIDE

main96111-10570i13B#..BU77,85,9#198602-198708

WATER PUMP SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10510i13B#..BU85,90..5F..03S..ATP198602-198708

PIPE SIDE,W/TRUCK FREEZER

main96111-10510iB,11B,13B..BU6#,70,80,81,82198409-198708

PIPE SIDE

main96111-10560iB,11B,13B..BU6#,70,80,81,82198409-198602

WATER PUMP SIDE

main96111-10560i13B#..BU85,90..5F..03S..ATP198602-198608

PUMP SIDE,W/TRUCK FREEZER

main96111-10570iB,11B,13B..BU6#,70,80,81,82198602-198708

WATER PUMP SIDE

main96111-10570i13B#..BU85,90..5F..03S..ATP198608-198708

PUMP SIDE,W/TRUCK FREEZER

16577PIPE, RADIATOR, NO.7

main16577-56030iB,11B,13B..BU6#,70,80,81,82198409-198606

sub16577-56031

sub16573-56031

main16577-56031iB,11B,13B..BU6#,70,80,81,82198606-198708

main16577-58010i13B#..BU85,90..5F..03S..ATP198602-198708

W/TRUCK FREEZER

16591PIPE, RADIATOR

main16591-56010iB,11B,13B..BU6#,70,80,81,82198409-198708

NO.1

main16591-56020iB,11B,13B..BU60,61,62,80,81..T4198409-198708

NO.2

main16591-56020iB..BU60..T3..WT..CBU198608-198708

main16591-56030iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2198409-198508

NO.2

main16591-56040i13B..BU62..BTP,CTP,DTP;B,11B,13B..BU6#,80,81,82..DM1,DM2,DM3,DM4,T1,T2,T3198508-198708

NO.2

main16591-56050iB,13B..BU60,62,70,82..HRF,SRF,TW1,TW2,TW4198508-198708

NO.2

16701SHROUD SUB-ASSY, FAN

main16701-56300iB..BU60,70,80198409-198708

main16701-56310iB..BU60..(T1,T2,T4)..ATP198409-198708

W/TRUCK FREEZER

main16701-56310iB..BU60,70,80198409-198708

W/COOLER

main16701-58020i11B,13B..BU61,62,64,81,82..5F198409-198508

main16701-58030i13B..BU62..BTP;13B..BU62..TR..5F..WT..20T..ATP198409-198508

W/COOLER

main16701-58030i13B..BU62..BTP;13B..BU62..TR..5F..WT..20T..ATP198409-198508

W/TRUCK FREEZER

main16701-58030i11B,13B..BU61,62,64,81,82198508-198708

main16701-58040i13B..BU77,85,93,98198409-198708

main16701-58050i13BT..BU85,90,95198409-198708

sub16701-58051

main16701-58070i13B#..BU85,90..5F..03S..ATP198602-198708

W/TRUCK FREEZER

9017906070

main90179-06070

9017908143

main90179-08143

9017908146

main90179-08146

9034112006

main90341-12006

9043012221

main90430-12221

9046208034

main90462-08034

9046208035

main90462-08035

9046711085

main90467-11085

9092901095

main90929-01095

9161160822

main91611-60822

9161160825

main91611-60825

9161160840

main91611-60840

9161161025

main91611-61025

9165140616

main91651-40616

9165140816

main91651-40816

9165140820

main91651-40820

9165160614

main91651-60614

9165160616

main91651-60616

9166140820

main91661-40820
