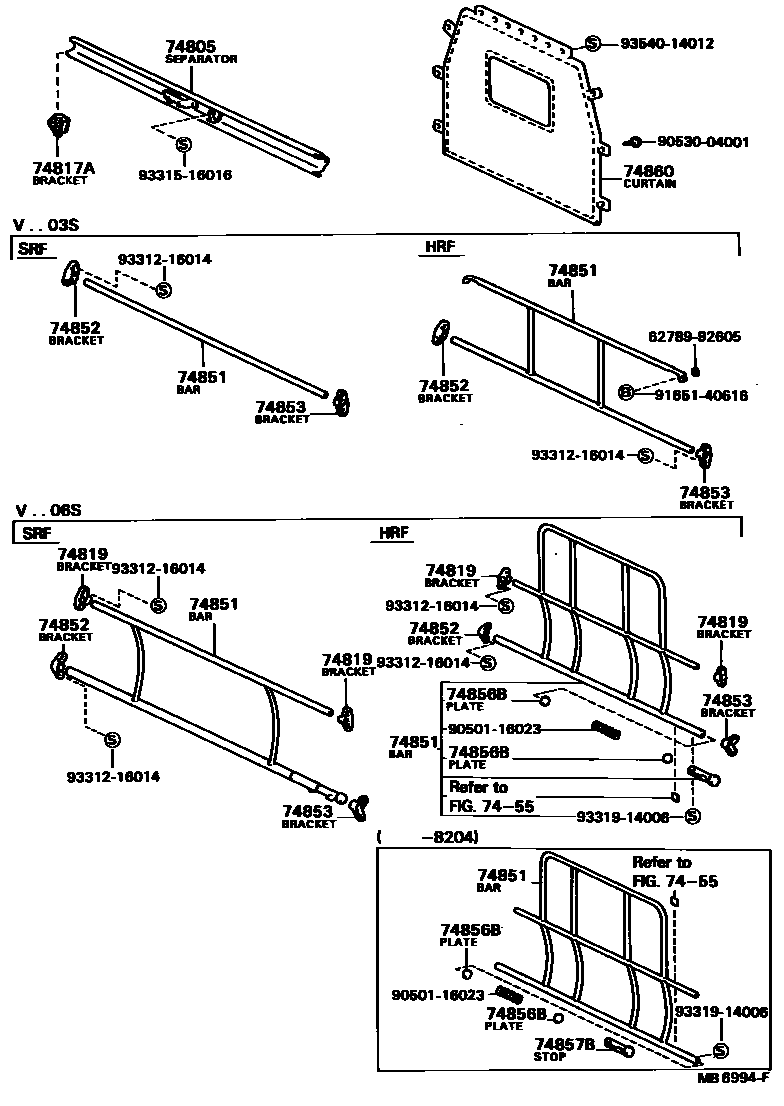

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1

7455

74805SEPARATOR SUB-ASSY

main74805-95400iBU20,22,30,32,34..06S,09S197708-198408

main74805-95402iBU20,22,30,32,34..TR..06S197708-198408

RR HEATER

74817ABRACKET, SEATBACK, RH

main74817-95400iBU20,22,30,32,34..06S,09S197708-198408

74819BRACKET, SEPARATOR FRAME

main74854-92625iBU20..V..06S197708-198204

main74854-92626iBU20,22..V..06S198204-198408

74851BAR, SEPARATOR

main74065-92660iBU20..09S198008-198204

main74065-92661iBU20,22..09S198204-198408

main74802-92105iBU20,22..HRF..03S197708-198408

main74802-92125iBU20..HRF..06S197708-198204

main74851-92605iBU20,22..SRF..03S197708-198408

main74860-92126iBU20,22..HRF..06S198204-198408

main74860-92625iBU20..SRF..06S197708-198204

main74860-92626iBU20,22..SRF..06S198204-198408

74852BRACKET, SEPARATOR, RH

main74855-92605iBU20..V..03S197708-198204

main74855-92606iBU20,22..V..03S198204-198408

main74855-92625iBU20,22..V..06S198204-198408

main74855-95A01iBU20..V..06S197708-198204

main74863-92660iBU20,22..09S198008-198408

74853BRACKET, SEPARATOR, LH

main74855-92605iBU20..V..03S197708-198204

main74855-92606iBU20,22..V..03S198204-198408

main74858-92626iBU20,22..V..06S198204-198408

main74858-95A01iBU20..V..06S197708-198204

main74863-92660iBU20,22..09S198008-198408

74856BPLATE, SPRING SET

main74856-95A00iBU20,22..HRF..06S197708-198408

74857BSTOP, REAR SEPARATOR

main74857-95A00iBU20..HRF..06S197708-198204

sub74854-95J00

74860CURTAIN ASSY, SEPARATE

main88039-92105iBU20..HRF197806-198408

main88039-92605iBU20..SRF197806-198408

6278992605SASH, QUARTER WINDOW, REAR LH

main62789-92605

9050116023

main90501-16023

9053004001

main90530-04001

9165140616

main91651-40616

9331216014

main93312-16014

9331516016

main93315-16016

9331914006

main93319-14006

9354014012

main93540-14012

18 parts on this diagram · 2 diagrams in section
