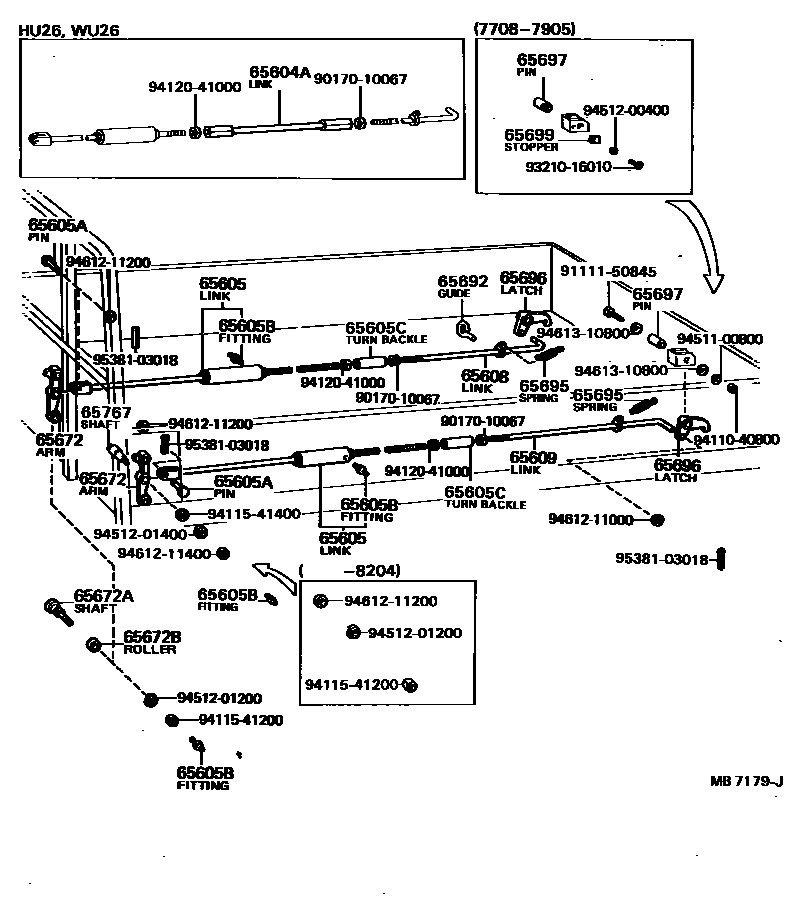

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1

65604ALINK SUB-ASSY, TAIL GATE LOCK CONNECTING

65605LINK SUB-ASSY, TAIL GATE LOCK

main65605-96309iBU20,21,23..TSK197708-198408

main65606-93103iBU20..DM1..KKT197708-198204

sub65606-93104

main65606-93104iBU21,23..DM1..KKT198204-198408

main65606-93105iBU21,23..DM4..KKT198204-198408

main65606-93300iBU20..DM3197904-198008

main65606-93301iBU20,21,23..DM3198008-198408

65605APIN, TAIL GATE LOCK LINK

main90240-10004iBU20,21..20T..KKT;BU23..(DM1,DM4)..KKT198008-198408

main90240-10006iBU20..20T..KKT197708-198008

main90240-12045iBU20,21,23..TSK197708-198408

65605BFITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK)

main96451-00600iBU20,21,23..TSK197708-198408

main96451-01000iBU20,21,23..DM3197904-198408

65605CTURNBACKLE, TAIL GATE LOCK LINK

main90587-10002iBU20,21,23..TSK197708-198408

65608LINK SUB-ASSY, TAIL GATE LOCK, REAR RH

main65608-96303iBU20,21,23..TSK197708-198408

65609LINK SUB-ASSY, TAIL GATE LOCK, REAR LH

main65609-96303iBU20,21,23..TSK197708-198408

65672ARM, TAIL GATE LOCK ROLLER

main65603-93102iBU20,21,23..(DM1,DM4)..KKT197708-198408

RH

main65604-93102iBU20,21,23..(DM1,DM4)..KKT197708-198408

LH

main65666-93300iBU20..DM3197904-198008

main65671-96302iBU20..TSK197708-197904

RH

main65671-96303iBU20,21,23..TSK197904-198408

RH

main65674-96302iBU20..TSK197708-197904

LH

main65674-96303iBU20,21,23..TSK197904-198408

LH

65672ASHAFT, ROLLER

main65664-93300iBU20..DM3197904-198008

main65673-96305iBU20,21,23..TSK197708-198408

65672BROLLER, TAIL GATE LOCK

main65603-96304iBU21,23..TSK198204-198408

main65672-96301iBU20..TSK197708-198204

sub65603-96304

65692GUIDE, LINK

main65692-96301iBU21,23..TSK198204-198408

sub65616-93300

65695SPRING, BACK(FOR TAIL GATE LOCK LATCH)

main90506-23406iBU20,21,23..TSK197708-198408

65696LATCH, TAIL GATE LOCK

main65694-93100iBU20,21..20T..KKT;BU23..(DM1,DM4)..KKT197708-198408

LH

main65695-93100iBU20,21..20T..KKT;BU23..(DM1,DM4)..KKT197708-198408

RH

main65696-96301iBU20,21,23..TSK197708-198408

65697PIN, LATCH

main65697-96302iBU20..TSK197708-197905

main65697-96303iBU20,21,23..TSK197905-198408

65699STOPPER, LATCH PIN

main65699-96302iBU20..TSK197708-197905

65767SHAFT, ROLLER

main65677-96303iBU20,21,23..TSK197708-198408

9017010067

main90170-10067

9111150845

main91111-50845

9321016010

main93210-16010

9411040800

main94110-40800

9411541200

main94115-41200

9411541400

main94115-41400

9412041000

main94120-41000

9451100800

main94511-00800

9451200400

main94512-00400

9451201200

main94512-01200

9451201400

main94512-01400

9461211000

main94612-11000

9461211200

main94612-11200

9461211400

main94612-11400

9461310800

main94613-10800

9538103018

main95381-03018

32 parts on this diagram · 6 diagrams in section
