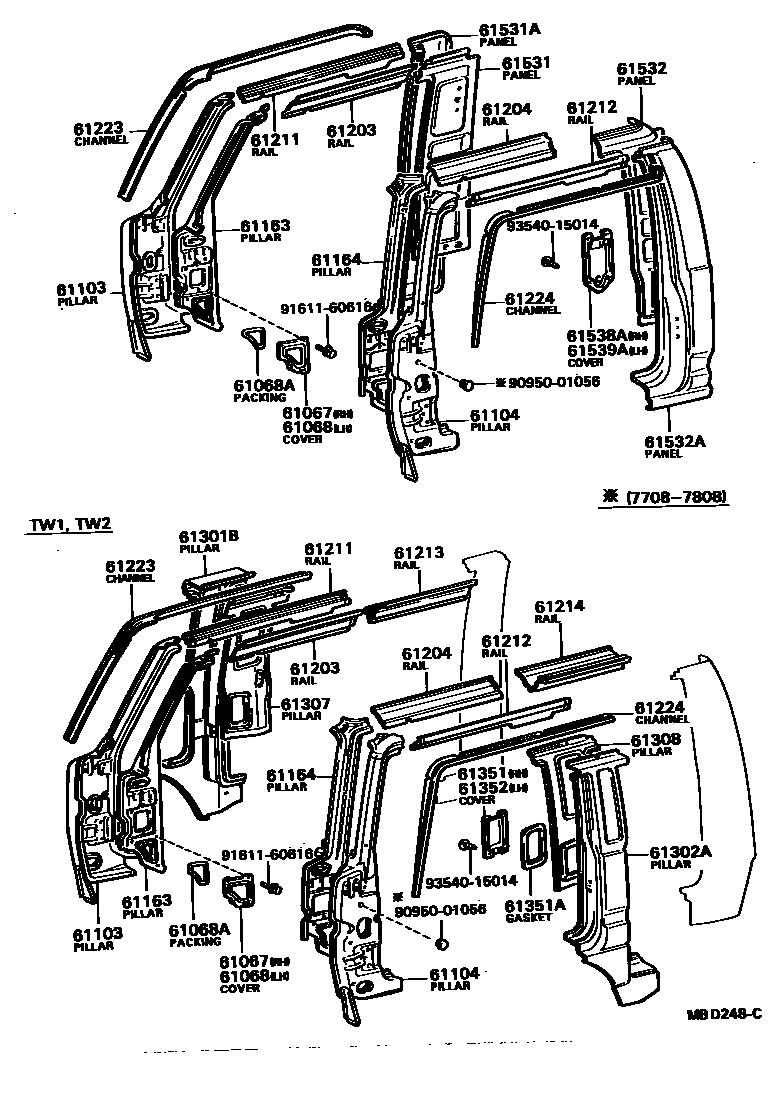

SIDE MEMBER

0001 1 0002 1

61067COVER SUB-ASSY, FRONT PILLAR SERVICE HOLE, RH

main61158-95401iBU2#,3#,4#,5#197708-198408

61068COVER SUB-ASSY, FRONT PILLAR SERVICE HOLE, LH

main61068-95400iBU2#,3#,4#,5#197708-198408

61068APACKING, FRONT PILLAR SERVICE HOLE

main61183-95400iBU2#,3#,4#,5#197708-198408

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61103-95401iBU2#,3#,4#,5#197708-198408

sub61103-95402

main61103-95404iBU2#,3#,4#,5#197904-198408

COLD SPEC

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61104-95400iBU2#,3#,4#,5#197708-198408

main61104-95401iBU2#,3#,4#,5#197904-198408

COLD SPEC

sub61104-95400

61163PILLAR, FRONT BODY, INNER RH

main61063-95405iBU2#,3#,4#,5#197708-198408

61164PILLAR, FRONT BODY, INNER LH

main61064-95405iBU2#,3#,4#,5#197708-198408

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61205-92615iBU20,22..V198008-198408

main61231-95403iBU2#,3#197708-198408

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61206-92605iBU20,22..V197708-198408

main61232-95403iBU20,30..DMP,TR197708-197803

main61232-95404iBU20..WT;BU22..TR;BU20,22..DTP;BU20..TR..ST;BU21,23,25,3#,4#,5#197803-198408

61211RAIL, ROOF SIDE, OUTER RH

main61211-95401iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S197708-198408

LWR

main61211-95402iBU20,22,30,32,34..TR..06S197708-198408

main61215-92605iBU20,22..V197708-198408

UPR

61212RAIL, ROOF SIDE, OUTER LH

main61212-95401iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S197708-198408

main61212-95402iBU20,22,30,32,34..TR..06S197708-198408

LWR

main61216-92605iBU20,22..V197708-198408

UPR

61213RAIL, ROOF SIDE, OUTER REAR RH

main61206-92105iBU20,22..HRF197708-198408

main61218-92605iBU20,22..SRF197708-198408

main61310-95400iBU20,22,30,32,34..TR..06S197708-198408

61214RAIL, ROOF SIDE, OUTER REAR LH

main61205-92105iBU20,22..HRF197708-198408

main61217-92605iBU20,22..SRF197708-198408

main61310-95400iBU20,22,30,32,34..TR..06S197708-198408

61223CHANNEL, ROOF DRIP, FRONT RH

main61261-95401iBU22..DTP;BU20..V..06S;BU22..HRF,SRF,T1,T2,T3;BU20,21,23,25,3#,4#,5#..02S,03S,09S197708-198408

main61261-95402iBU20,22,30,32,34..TR..06S197708-198408

61224CHANNEL, ROOF DRIP, FRONT LH

main61262-95401iBU22..DTP;BU20..V..06S;BU22..HRF,SRF,T1,T2,T3;BU20,21,23,25,3#,4#,5#..02S,03S,09S197708-198408

main61262-95402iBU20,22,30,32,34..TR..06S197708-198408

61301BPILLAR, CENTER BODY, OUTER RH

main61301-92105iBU20,22..HRF197708-198408

main61301-92605iBU20,22..SRF197708-198408

main61301-95400iBU20,22,30,32,34..TR..06S197708-198408

61302APILLAR, CENTER BODY, OUTER LH

main61302-92105iBU20,22..HRF197708-198408

main61302-92605iBU20,22..SRF197708-198408

main61302-95400iBU20,22,30,32,34..TR..06S197708-198408

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61303-92605iBU20,22..V197708-198408

main61303-95401iBU20,22,30,32,34..TR..06S197708-198408

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61304-92605iBU20,22..V197708-198408

main61304-95401iBU20,22,30,32,34..TR..06S197708-198408

main61304-95402iBU20,22,30,32,34..TR..06S197708-198408

W/RR HEATER

sub61304-95401

61351COVER, CENTER BODY, INNER RH

main61351-95400iBU20,30..TR..06S197708-198008

*NLR

main61351-95401iBU20,22,30,32,34..TR..06S197708-198408

*ELR

main61351-95A00iBU20,22..V197708-198408

61351AGASKET(FOR CENTER BODY INNER COVER)

main61352-95400iBU20,30..TR..06S197708-198008

*NLR

sub61352-95010

61352COVER, CENTER BODY, INNER, LH

main61351-95400iBU20,30..TR..06S197708-198008

*NLR

main61351-95401iBU20,22,30,32,34..TR..06S197708-198408

*ELR

main61351-95A00iBU20,22..V197708-198408

61531PANEL, BACK CORNER, INNER RH

main61503-95403iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S197708-198408

main61503-95405iBU2#,33,34..(DM1,DM4,TB)..03S198302-198408

CUSTOM PACK SPEC

61531APANEL, BACK CORNER, OUTER RH

main61501-95405iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S197708-198408

61532PANEL, BACK CORNER, INNER LH

main61504-95403iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S197708-198408

main61504-95405iBU2#,30..(DM1,DM4,TB)..03S198204-198302

CUSTOM PACK SPEC

61532APANEL, BACK CORNER, OUTER LH

main61502-95405iBU20..DTP;BU20..ST..20T;BU22..20T..CBU;BU20..(02S,03S)..WT;BU22..(02S,03S)..IV3;BU21,23,25,3#,4#,5#..02S,03S197708-198408

61538ACOVER, BACK CORNER HOLE, RH

main61539-95400iBU2#,3#..5H197708-198008

*NLR

main61539-95401iBU22..DTP;BU20..V..06S;BU22..HRF,SRF,T1,T2,T3;BU20,21,23,25,3#,4#,5#..02S,03S,09S197708-198408

*ELR

main61539-95403iBU2#,33,34..(DM1,DM4,TB)..03S198302-198408

CUSTOM PACK SPEC

61539ACOVER, BACK CORNER HOLE, LH

main61538-95400iBU22..DTP;BU20..V..06S;BU22..HRF,SRF,T1,T2,T3;BU20,21,23,25,3#,4#,5#..02S,03S,09S197708-198408

*ELR

main61538-95401iBU40,50;BU36..TB198204-198302

CUSTOM PACK SPEC

main61539-95400iBU2#,3#..5H197708-198008

*NLR

9095001056

main90950-01056

9161160616

main91611-60616

9354015014

main93540-15014

31 parts on this diagram · 2 diagrams in section
