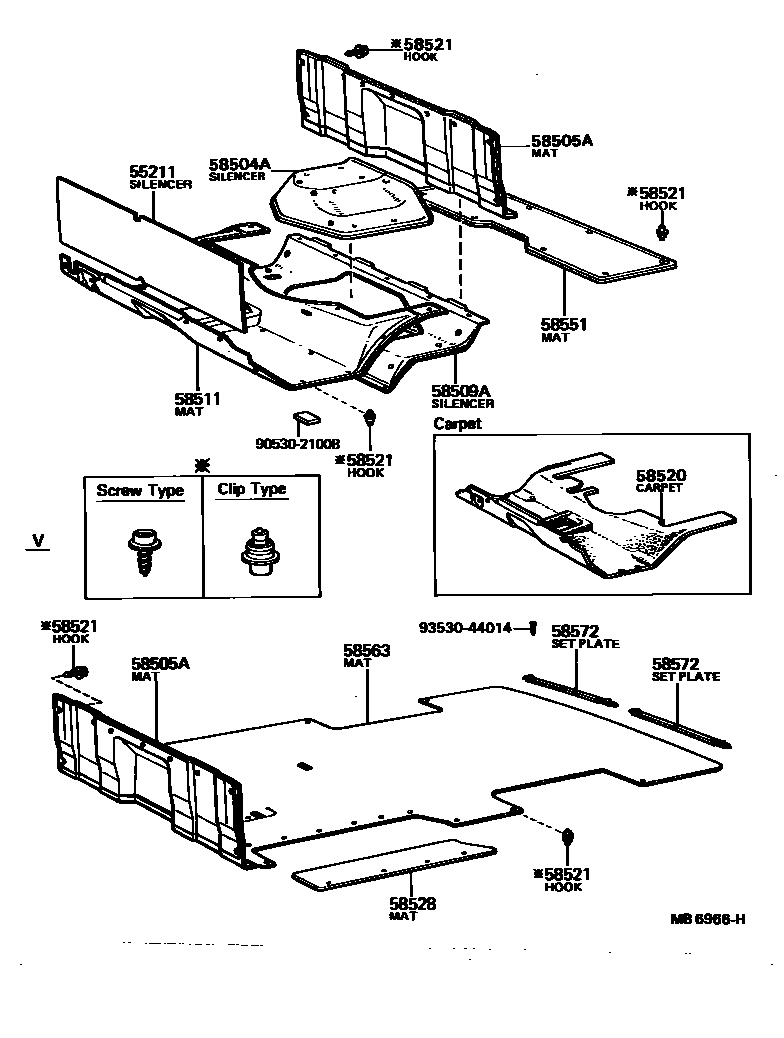

FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95401iBU2#,3#¥3,870197708-198002

sub55211-95403¥3,870

main55211-95402iBU35,36,37,4#,5#198008-198408

main55211-95403iBU2#,30,31,32,33,34¥3,870198002-198408

58504ASILENCER SUB-ASSY, ENGINE SERVICE HOLE COVER

main58504-95400iBU20..CTP;BU25,3#..5H;BU20..5H..M50;BU20..KKT,TSK;BU20..BTP..DSL;BU20..TB..H50..03S..20T197708-198008

main58504-95401iBU35,36198008-198204

main58504-95402iBU30..M50198008-198204

W/CARPET

main58504-95403iBU35,36198008-198204

W/CARPET

main58504-95404iBU20,30..5H198008-198204

main58504-95405iBU2#,30,32,33,34..5H198204-198408

main58504-95406iBU36,37,4#,5#198204-198408

main58504-95407iBU2#,30,32,33,34..(DM1,DM4,TB)..03S..WT198204-198408

W/CARPET

main58504-95408iBU40,41,5#;BU36,37..TB198204-198408

W/CARPET

58505AMAT SUB-ASSY, HEADER

main58505-92605iBU20..V¥28,800197708-198008

sub58505-92607

main58505-92606iBU20..V198008-198204

main58505-92607iBU20,22..V198204-198408

main58505-95400iBU20,30..TR..06S¥24,300197708-198008

sub58505-95401

main58505-95401iBU20,30..TR..06S198008-198204

main58505-95402iBU20,22,32,34..TR..06S198204-198408

58509ASILENCER SUB-ASSY, SEAT FLOOR

main58509-95400iBU30..03S;BU2#,31..03S..WT;BU20..5H..ST..IV3;BU20,30..06S..WT..ATP;BU20..03S..ST..20T..CBU197708-198008

main58509-95401iBU20,30..02S197708-198008

main58509-95402iBU20,30..HRF,SRF,TW1,TW2197708-198008

main58509-95403iBU35,36198008-198012

main58509-95404iBU20..02S198008-198104

main58509-95405iBU35,36198008-198012

W/CARPET

main58509-95406iBU20,30..T3..WT198008-198204

W/CARPET

main58509-95407iBU20..DTP;BU20..ST..20T;BU20,30..03S..WT198008-198104

main58509-95408iBU20,30..HRF,SRF,TW1,TW2198008-198104

main58509-95409iBU35,36198012-198204

main58509-95410iBU35,36198012-198204

W/CARPET

main58509-95411iBU20..02S198104-198204

main58509-95412iBU20..DTP;BU20..ST..20T;BU20,30..03S..WT198104-198204

main58509-95413iBU30..M50198104-198204

W/CARPET

main58509-95414iBU20,30..HRF,SRF,TW1,TW2198104-198204

main58509-95415iBU20..DTP;BU20..03S..20T;BU22..03S..IV3;BU22..03S..20T..CBU;BU21,23,30,32,33,34..03S198204-198408

main58509-95416iBU20,22,32,34..HRF,SRF,TW1,TW2198204-198408

main58509-95417iBU2#..02S198204-198408

main58509-95418iBU36,37,4#,5#198204-198408

main58509-95419iBU40,41,5#;BU36,37..TB198204-198408

W/CARPET

main58509-95420iBU2#,30,32,33,34..(DM1,DM4,TB)..03S..WT..20T198204-198408

58511MAT, FLOOR, FRONT

main58510-95415iBU2#,3#..5H197708-198008

T=1.2

main58510-95422iBU2#,3#..5H¥21,000197708-198008

T=2.0

sub58510-95432

main58510-95428iBU35,36¥23,900198008-198204

sub58510-95458

main58510-95430iBU20..02S¥21,000198008-198104

sub58510-37090

main58510-95432iBU20,30..5H198008-198104

T=1.2

main58510-95444iBU20,30..5H¥21,000198104-198204

T=1.2

sub58510-95456¥20,900

main58510-95445iBU20..02S¥21,000198104-198204

sub58510-95457

main58510-95456iBU2#,30,32,33,34..5H¥20,900198204-198408

T=1.2

main58510-95457iBU2#..02S198204-198408

main58510-95458iBU36,4#,50198204-198302

main58510-95472iBU37,4#,51198302-198408

58520CARPET ASSY, FRONT FLOOR

main58510-95423iBU20,30..02S197708-198008

main58510-95429iBU35,36198008-198204

main58510-95431iBU20,30..T3..WT198008-198204

main58510-95453iBU20,30..T3..WT198104-198204

main58510-95465iBU2#,30,32,34..(DM1,DM4,TB)..03S..WT..20T198204-198408

main58510-95466iBU36,40,50198204-198302

main58510-95473iBU37,41,51198302-198408

58521HOOK, MALE, NO.1

main90530-04007iBU2#,3#¥120197708-198408

SCREW TYPE

main90530-06001iBU25,3#;BU20..M50;BU20..CTP;BU20..KKT,TSK;BU20..BTP..DSL;BU20..TB..H50..20T¥110197708-198408

CLIP TYPE

58528MAT, REAR DOOR STEP

main58544-92605iBU20..V¥2,060197711-198008

sub58544-92607

main58544-92606iBU20..V¥2,350198008-198204

sub58544-92607

main58544-92607iBU20,22..V198204-198408

58551MAT, FLOOR, REAR

main58551-95402iBU20,30..TR..06S¥11,100197708-198008

sub58551-95405

main58551-95405iBU20,30..TR..06S198008-198204

main58551-95407iBU20,22,32,34..TR..06S198204-198408

58563MAT, REAR FLOOR

main58523-92605iBU20..V..03S¥46,500197708-198008

T=2.0

sub58523-92610

main58523-92607iBU20..V..03S¥52,400198008-198204

T=2.0

sub58523-92608

main58523-92609iBU20,22..V..03S¥52,300198204-198408

T=2.0

sub58523-92610

main58523-92625iBU20..V..06S¥46,200197708-198008

T=2.0

sub58523-92629

main58523-92627iBU20..V..06S198008-198204

T=2.0

main58523-92629iBU20,22..V..06S198204-198408

T=2.0

main58523-92660iBU20..09S198008-198204

T=2.0

main58523-92661iBU20,22..09S198204-198408

T=2.0

main58523-92665iBU20..09S198008-198204

W/RR HEATER,T=2.0

main58523-92666iBU20,22..09S198204-198408

W/RR HEATER,T=2.0

58572SET PLATE, REAR FLOOR MAT, REAR

main51775-92605iBU20,22..V¥2,890197708-198408

RH

main51776-92605iBU20,22..V¥2,890197708-198408

LH

9053021008

main90530-21008¥250

9353044014

main93530-44014¥120

13 parts on this diagram · 1 diagram in section
