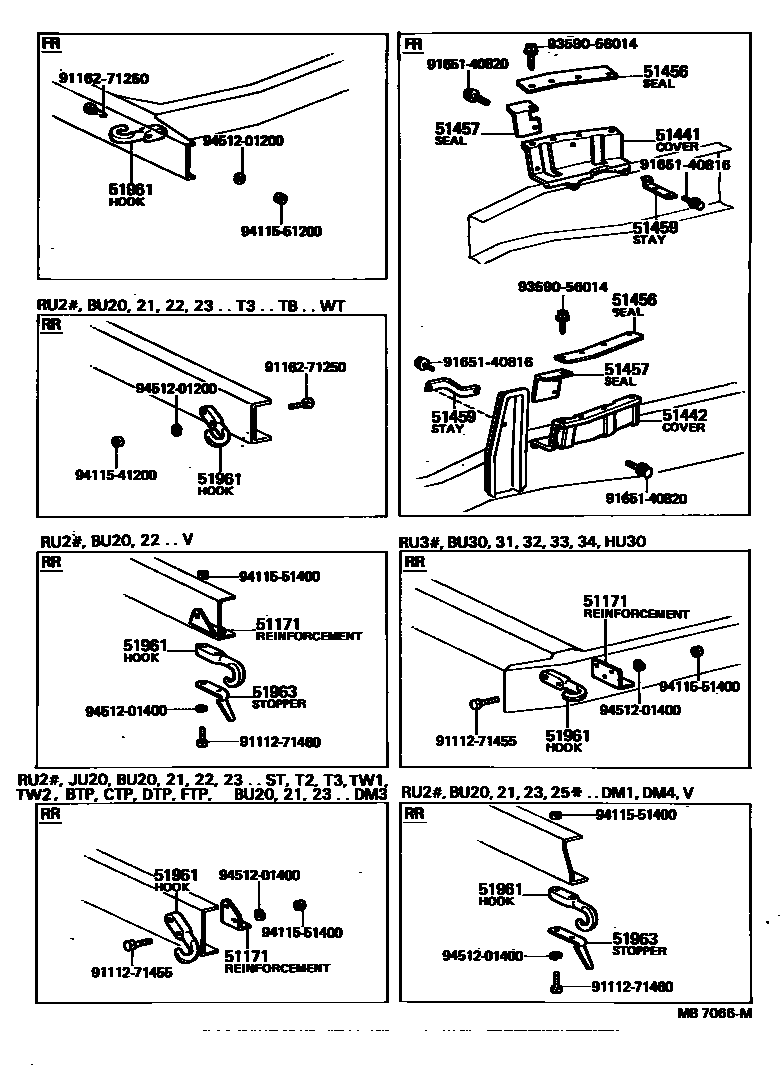

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51171REINFORCEMENT, SIDE RAIL REAR HOOK

main51171-36030iBU30,31,32,33,34,45,46197708-198408

main51171-36040iBU20,22..V197708-198408

main51171-36050iBU22..DTP;BU22..T3..ATP;BU20,21,23..IV3;BU22..T1,T2,TW1,TW2;BU20,21,23..DM3..CBU;BU20..(T1,T2,TW1,TW2)..CBU197708-198408

51441COVER, ENGINE UNDER, NO.1

main51448-36020iBU2#,30,31,32,33,34197904-198408

main51448-36030iBU35,36198008-198204

sub51448-36040

main51448-36040iBU36,37,40,41,45,5#198204-198408

51442COVER, ENGINE UNDER, NO.2

main51449-36010iBU2#,30,31,32,33,34197904-198408

main51449-36020iBU35,36198008-198204

sub51449-36030

main51449-36030iBU36,37,40,41,45,5#198204-198408

51456SEAL, ENGINE SIDE COVER, UPPER

main51456-36010iBU2#,30,31,32,33,34197904-198408

main51456-36020iBU35,36,37,40,41,45,5#198008-198408

51457SEAL, ENGINE SIDE COVER, FRONT

main51457-36010iBU2#,30,31,32,33,34197904-198408

main51457-36020iBU35,36,37,40,41,45,5#198008-198408

51459STAY, ENGINE SIDE COVER

main51459-36010iBU2#,30,31,32,33,34197904-198408

LH

main51459-36020iBU35,36,37,40,45,50198008-198408

main51469-36020iBU2#,30,31,32,33,34197904-198408

RH

51961HOOK, NO.1

main51961-36010iBU22..M50;BU20..TB..ST;BU20,21..DM3,TS;BU20..HRF,SRF,T2,TW2;BU20,21..BTP,CTP,DTP,FTP197708-198408

RR

main51961-36020iBU25,3#,4#,5#197708-198408

RR

main51961-36030iBU35,36,37,4#,5#198008-198408

FR

main51961-60010iBU20,21,22,23..T3..WT197708-198408

RR

main51961-60010iBU20,21,22,23..T3..WT197708-198408

FR

51963STOPPER, HOOK WIRE

main51963-36010iBU25;BU20,22..V;BU20,21,23..DM1,DM4197708-198408

9111271455

main91112-71455

9111271460

main91112-71460

9116271250

main91162-71250

9165140816

main91651-40816

9165140820

main91651-40820

9359056014

main93590-56014

9411541200

main94115-41200

9411551200

main94115-51200

9411551400

main94115-51400

9451201200

main94512-01200

9451201400

main94512-01400

19 parts on this diagram · 2 diagrams in section
