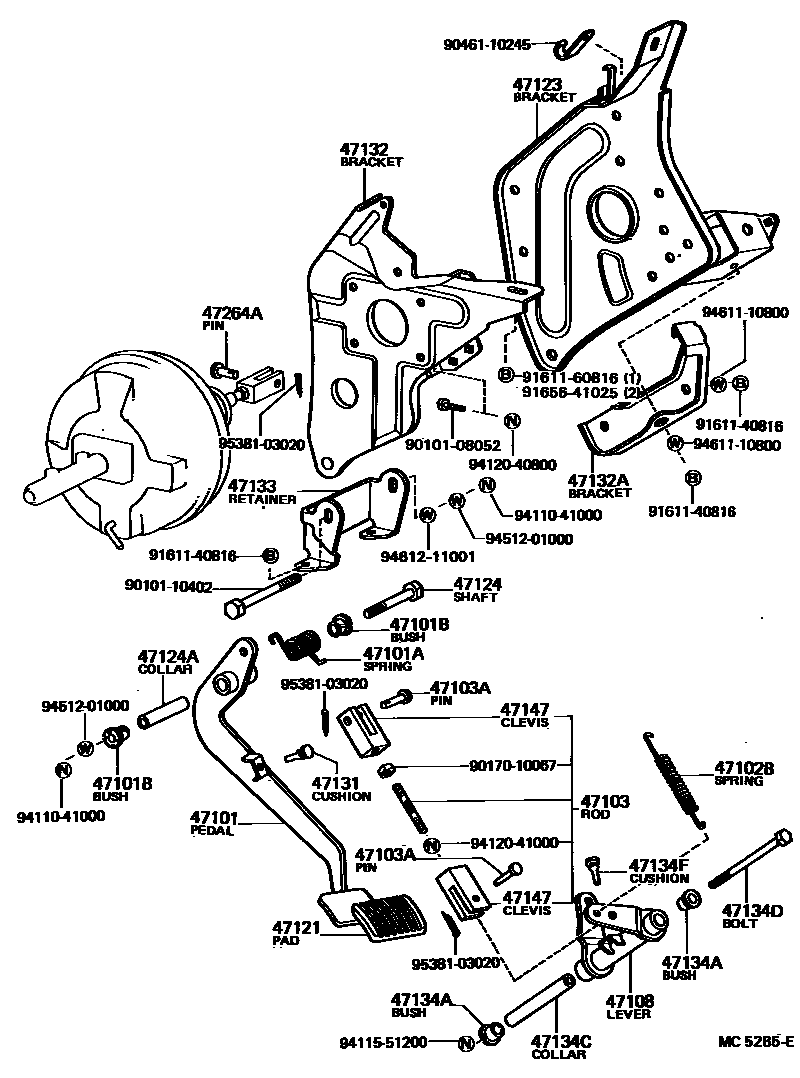

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-36050iBU2#,30,31,32,33,34197708-198408

main47101-36070iBU35,36,37,4#,5#198008-198408

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iBU2#,3#,4#,5#197708-198408

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBU2#,3#,4#,5#197708-198408

47102BSPRING, TENSION(FOR BRAKE PEDAL LEVER)

main90506-16018iBU2#,3#,4#,5#197708-198408

47103ROD, BRAKE PEDAL

main47103-36020iBU2#,3#,4#,5#197708-198408

47103APIN, W/HOLE(FOR BRAKE PEDAL ROD)

main90240-10085iBU2#,3#,4#,5#197708-198408

47108LEVER SUB-ASSY, BRAKE PEDAL INTERMEDIATE

main47108-36010iBU2#,3#,4#,5#197708-198408

47121PAD, BRAKE PEDAL

main31321-36010iBU2#,3#,4#,5#197708-198408

47123BRACKET, BRAKE PEDAL

main55106-95405iBU2#,3#,4#,5#197708-198408

47124SHAFT, BRAKE PEDAL

main91121-51070iBU2#,3#,4#,5#197708-198408

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBU2#,3#,4#,5#197708-198408

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBU2#,3#,4#,5#197708-198408

47132BRACKET, BRAKE PEDAL, NO.2

main55107-95405iBU2#,3#,4#,5#197708-198408

47132ABRACKET, BRAKE PEDAL, NO.3

main55163-95400iBU2#,3#197708-198008

main55163-95401iBU2#,3#,4#,5#198008-198408

47133RETAINER, PEDAL BRACKET, LOWER

main55764-95401iBU20,21,25,30,31,32,35,36,40,45,50197708-198408

47134ABUSH(FOR BRAKE IDLER LEVER)

main90386-18166iBU2#,3#,4#,5#197708-198408

47134CCOLLAR(FOR BRAKE IDLER LEVER)

main90387-12009iBU2#,3#,4#,5#197708-198408

47134DBOLT, HEXAGON(FOR BRAKE IDLER LEVER)

main90101-12029iBU2#,3#,4#,5#197708-198408

47134FCUSHION(FOR BRAKE IDLER LEVER STOPPER)

main90541-06008iBU2#,3#,4#,5#197708-198408

47147CLEVIS,BRAKE PEDAL

main47147-36030iBU2#,3#,4#,5#197708-198408

BRAKE PEDAL SIDE

main47264-35010iBU2#,3#,4#,5#197708-198408

IDLER LEVER SIDE

47264APIN(FOR PUSH ROD)

main90240-10085iBU2#,3#,4#,5#197708-198408

9010108052

main90101-08052

9010110402

main90101-10402

9017010067

main90170-10067

9046110245

main90461-10245

9161140816

main91611-40816

9161160816

main91611-60816

9165641025

main91656-41025

9411041000

main94110-41000

9411551200

main94115-51200

9412040800

main94120-40800

9412041000

main94120-41000

9451201000

main94512-01000

9461110800

main94611-10800

9461211001

main94612-11001

9538103020

main95381-03020

36 parts on this diagram · 1 diagram in section
