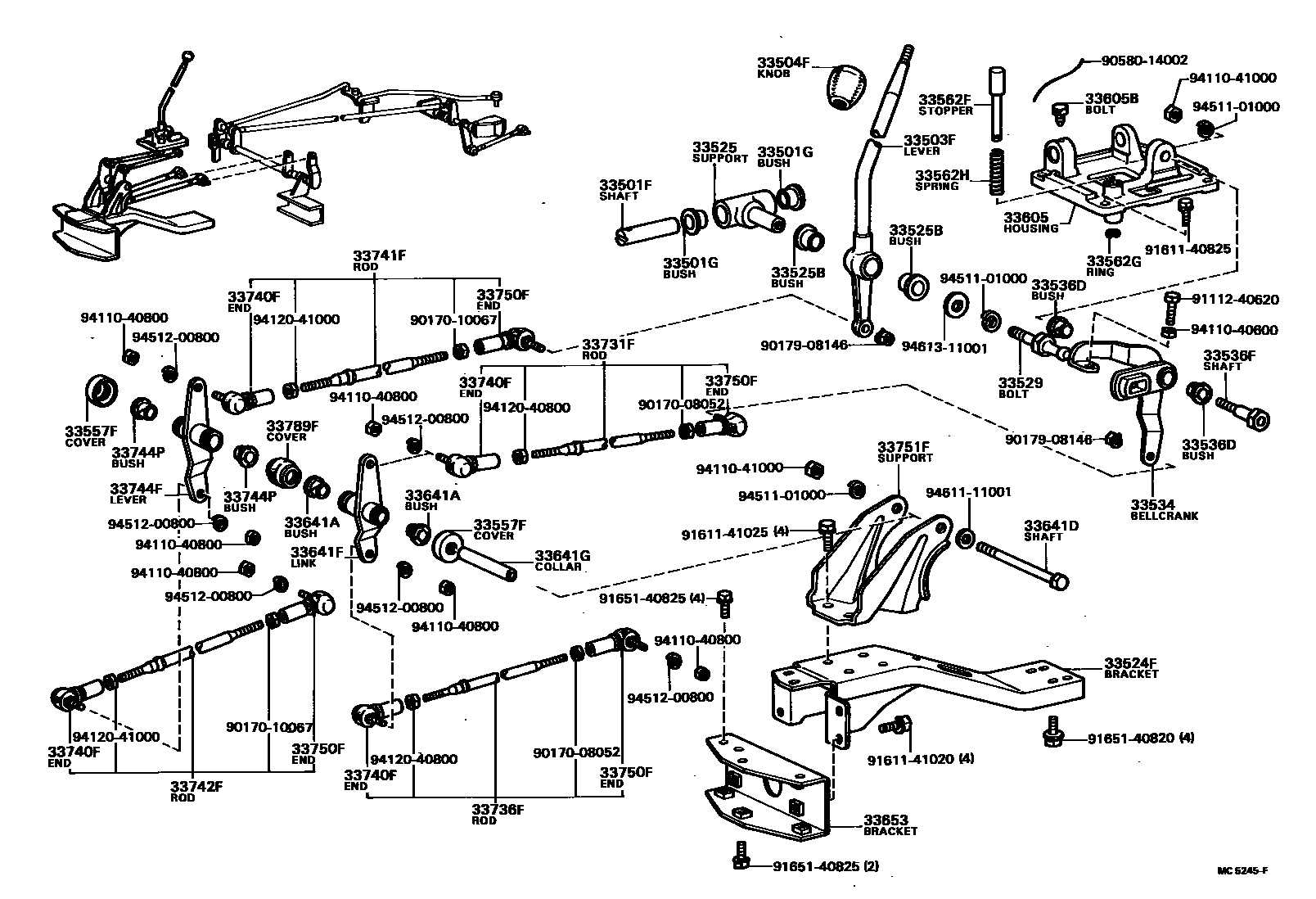

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33501-36140iBU35,36,4#,50198008-198302

main33501-36150iBU2#..02S198104-198408

main33501-36170iBU37,4#,51198302-198408

main33523-36020iBU20,30..02S197708-198104

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90386-18166iBU20,30..02S197708-198104

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-36010iBU20,30..02S197708-198012

sub33541-36130

main33541-36130iBU20..02S198012-198104

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052iBU20,30..02S197708-198008

BLACK

sub33504-14050

main33504-20052-16iBU2#,35,36,4#,50..5F198008-198408

DARK BROWN,BROWN

sub33504-20052

sub33504-14050

main33504-22111iBU37,4#,51198302-198408

sub33504-14050

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-36010iBU20,21,22,23,30..02S197708-198408

main33524-36020iBU35,36,37,4#,5#198008-198408

33525SUPPORT, SHIFT LEVER

main33525-36050iBU20,30..02S197708-198104

33525BBUSH (FOR SHIFT LEVER SUPPORT)

main90386-18166iBU20,30..02S197708-198104

33529BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

main33529-36010iBU20,30..02S197708-198104

33534BELLCRANK, SELECTING

main33534-36010iBU20,30..02S197708-198104

main33534-36030iBU35,36,37,4#,5#198008-198408

main33534-36040iBU2#..02S198104-198408

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-13007iBU20,30..02S197708-198104

33536FSHAFT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)

main33536-36040iBU20,30..02S197708-198104

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-36010iBU20,21,22,23,30,35,36,37,4#,5#..5F197708-198408

33562FSTOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

main33562-36020iBU20,30..02S197708-198104

33562GRING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

main96160-00500iBU20,30..02S197708-198104

33562HSPRING, COMPRESSION (FOR CONTROL SHAFT UPPER BRACKET)

main90501-14022iBU20,30..02S197708-198104

33605HOUSING, CONTROL LEVER

main33651-36010iBU20,30..02S197708-198104

33605BBOLT, LOCK (FOR FLOOR SHIFT CONTROL SHAFT)

main33218-36010iBU20,30..02S197708-198104

33641ABUSH (FOR SELECTING LINK)

main90386-13007iBU20,21,22,23,30,35,36,37,4#,5#..5F197708-198408

33641DSHAFT, SELECTING LINK

main90101-10130iBU20,21,22,23,30..02S197708-198408

sub90101-10200

main90101-10373iBU35,36,37,4#,5#198008-198408

33641FLINK, SELECTING (FOR FLOOR SHIFT)

main33641-36100iBU20,30..02S197708-198104

main33641-36140iBU35,36,37,4#,5#198008-198408

main33641-36150iBU2#..02S198104-198408

33641GCOLLAR, SELECTING LINK

main90387-10002iBU20,21,22,23,30..02S197708-198408

main90387-10044iBU35,36,37,4#,5#198008-198408

33653BRACKET, CONTROL LEVER HOUSING SUPPORT

main33653-36020iBU20,21,22,23,30..02S197708-198408

33731FROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT)

main33720-36170iBU20,30..02S197708-198104

sub33710-25H98

main33720-36190iBU35,36198008-198408

sub33710-25H98

33736FROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT)

main33730-36190iBU35,36,37,4#,5#198008-198408

sub33710-26H91

main33790-36270iBU20,21,22,23,30..02S197708-198408

sub33710-26H90

33740FEND ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)

main33740-35011iBU20,30..02S197708-198104

SELECTING ROD

main33740-35011iBU2#,35,36,37,4#,5#..5F198008-198408

M8

main33740-36010iBU35,36198008-198408

M10

sub33740-36050

main33740-36010iBU20,30..02S197708-198104

SHIFTING ROD

sub33740-36050

33741FROD, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33710-36150iBU20,30..02S197708-198104

main33710-36170iBU35,36198008-198104

sub33710-25H96

33742FROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT)

main33730-36160iBU20,21,22,23,30..02S197708-198408

sub33710-25H99

main33730-36190iBU35,36,37,4#,5#198008-198408

sub33710-26H91

33744FLEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33744-36010iBU20,21,22,23,30..02S197708-198408

main33744-36020iBU35,36,37,4#,5#198008-198408

33744PBUSH (FOR SHIFTING, NO.1)

main90386-13007iBU20,21,22,23,30,35,36,37,4#,5#..5F197708-198408

33750FEND, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)

main33750-35011iBU20,30..02S197708-198104

SELECTING ROD

main33750-35011iBU2#..02S198008-198408

M8

main33750-36010iBU20,30..02S197708-198104

SHIFTING ROD

sub33750-36030

main33750-36010iBU35,36,37,4#,5#198008-198408

M10

sub33750-36030

33751FSUPPORT, GEAR SHIFT LINK LEVER (FOR FLOOR SHIFT)

main33751-36060iBU20,21,22,23,30..02S197708-198408

main33751-36080iBU35,36,37,4#,5#198008-198408

33789FCOVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT)

main33775-20020iBU35,36,37,4#,5#198008-198408

CROSSSHAFT KNOB,LH

main33775-20040iBU20,21,22,23,35,36,37,4#,5#..5F197708-198408

CROSSSHAFT KNOB,RH

main33789-36010iBU20,21,22,23,35,36,37,4#,5#..5F197708-198408

sub33789-36020

9017008052

main90170-08052

9017010067

main90170-10067

9017908146

main90179-08146

9058014002

main90580-14002

9111240620

main91112-40620

9161140825

main91611-40825

9161141020

main91611-41020

9161141025

main91611-41025

9165140820

main91651-40820

9165140825

main91651-40825

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9412040800

main94120-40800

9412041000

main94120-41000

9451101000

main94511-01000

9451200800

main94512-00800

9461111001

main94611-11001

9461311001

main94613-11001

51 parts on this diagram · 9 diagrams in section
