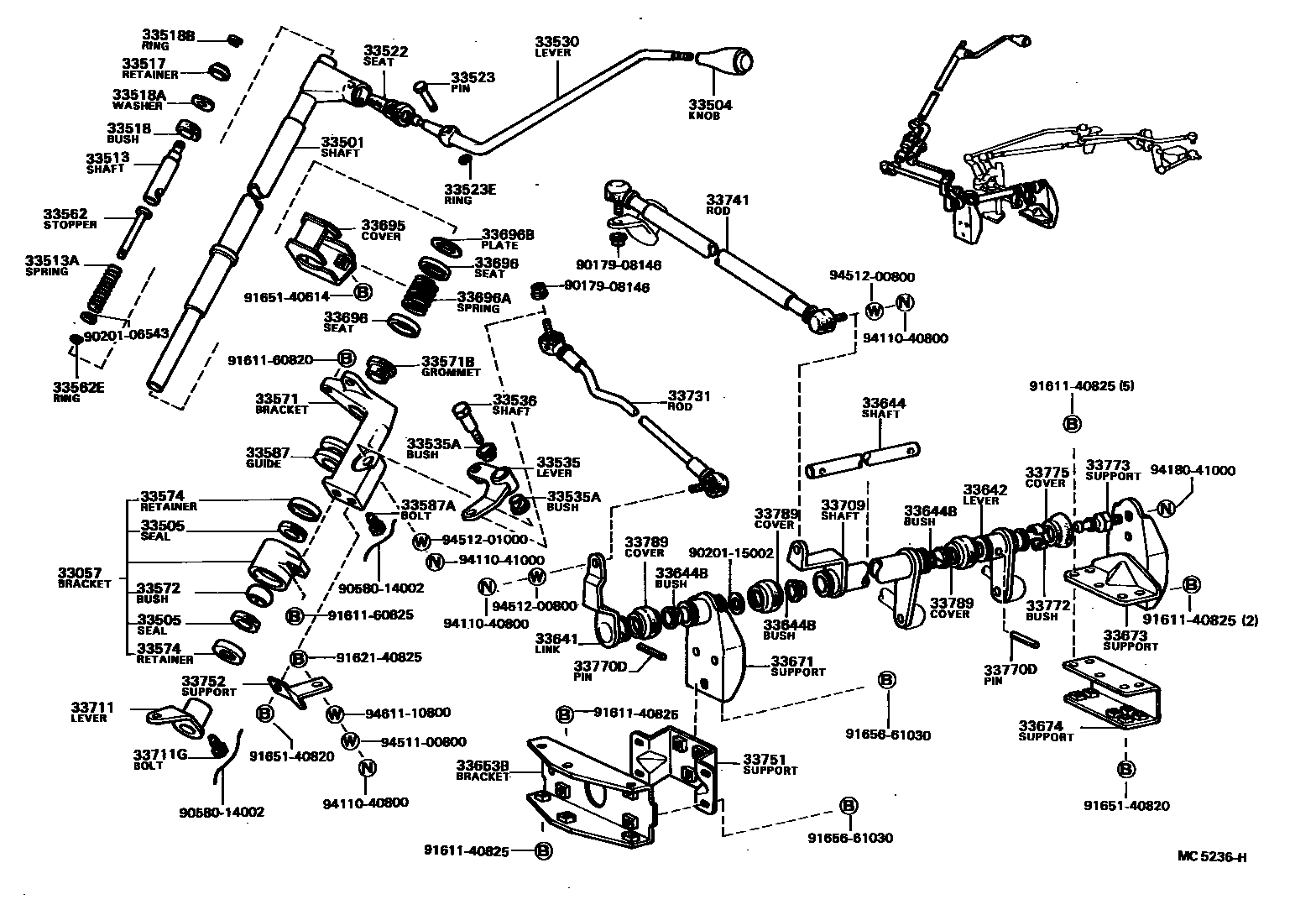

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1

33057BRACKET SUB-ASSY, CONTROL SHAFT, LOWER(FOR COLUMN SHIFT)

main33057-36010iBU37..275,30T197708-198408

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-36100iBU2#,30,31,32,33,34..5H197708-198408

main33501-36180iBU37..275,30T198302-198408

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iBU37..275,30T197708-198408

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main90303-17005iBU2#,30,31,32,33,34..5H197708-198408

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-36020iBU2#,30,31,32,33,34..5H197708-198408

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14028iBU2#,30,31,32,33,34..5H197708-198408

main90501-14395iBU20,30..5H197708-197711

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iBU2#,30,31,32,33,34..5H197708-198408

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iBU2#,30,31,32,33,34..5H197807-198408

sub33518-35010

main33518-36020iBU2#,30..5H197708-197807

sub33518-36010

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main33515-30010iBU37..275,30T197708-198408

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iBU2#,30,31,32,33,34..5H197708-198408

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iBU2#,30,31,32,33,34..5H197708-198408

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iBU2#,30,31,32,33,34..5H197708-198408

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iBU2#,30,31,32,33,34..5H197708-198408

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-36040iBU2#,30,31,32,33,34..5H197708-198408

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-36040iBU2#,30,31,32,33,34..5H197708-198408

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007iBU2#,30,31,32,33,34..5H197708-198408

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iBU2#,30,31,32,33,34..5H197708-198408

33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

main33562-36010iBU2#,30,31,32,33,34..5H197708-198408

33562ERING, E (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

main96160-00300iBU2#,30,31,32,33,34..5H197708-198408

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-36040iBU2#,30,31,32,33,34..5H197708-198408

33571BGROMMET (FOR CONTROL SHAFT LOWER BRACKET)

main90480-25004iBU2#,30,31,32,33,34..5H197708-198408

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-36010iBU2#,30,31,32,33,34..5H197708-198408

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-25010iBU2#,30,31,32,33,34..5H197708-198408

33587GUIDE, CONTROL SELECT LEVER

main33587-36010iBU2#,30,31,32,33,34..5H197708-198408

33587ABOLT, CONTROL SELECT LEVER GUIDE LOCK

main33218-35010iBU2#,30,31,32,33,34..5H197708-198408

33641LINK, SELECTING (FOR COLUMN SHIFT)

main33641-36110iBU2#,30,31,32,33,34..5H197708-198408

CROSSSHAFT NO.1

main33663-36010iBU2#,30,31,32,33,34..5H197708-198408

CROSSSHAFT NO.2

33642LEVER, GEAR SELECTING, NO.2

main33642-36040iBU2#,30,31,32,33,34..5H197708-198408

33644SHAFT, GEAR SELECTING

main33644-36030iBU2#,30,31,32,33,34..5H197708-198408

33644BBUSH (FOR GEAR SELECTING SHAFT)

main90386-15110iBU2#,30,31,32,33,34..5H197708-198408

33653BBRACKET, CONTROL LEVER HOUSING SUPPORT

main33653-36010iBU2#,30,31,32,33,34..5H197708-198408

33671SUPPORT, CONTROL ROD, NO.1

main33671-36020iBU2#,30,31,32,33,34..5H197708-198408

33673SUPPORT, CONTROL ROD, NO.2

main33673-36020iBU2#,30,31,32,33,34..5H197708-198408

33674SUPPORT, CONTROL ROD, NO.3

main33674-36010iBU2#,30,31,32,33,34..5H197708-198408

33695COVER, SELECTING SPRING (FOR COLUMN SHIFT)

main33695-36020iBU2#,30,31,32,33,34..5H197708-198408

33696SEAT, SELECT SPRING

main33696-36020iBU2#,30,31,32,33,34..5H197708-198408

33696ASPRING, COMPRESSION

main90501-26008iBU2#,30,31,32,33,34..5H197708-198408

33696BPLATE, SELECT RETURN

main90201-28003iBU2#,30,31,32,33,34..5H197708-198408

33709SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)

main33709-36220iBU2#,30,31,32,33,34..5H197708-198408

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-36070iBU2#,30,31,32,33,34..5H197708-198408

main33527-36120iBU37..275,30T198302-198408

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iBU2#,30,31,32,33,34..5H197708-198408

33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-36150iBU2#,30,31,32,33,34..5H197708-198408

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-36130iBU2#,30,31,32,33,34..5H197708-198408

33751SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT)

main33751-36070iBU2#,30,31,32,33,34..5H197708-198408

33752SUPPORT, CONTROL LINK

main33752-36050iBU2#,30,31,32,33,34..5H197708-198408

33770DPIN (FOR CROSS SHAFT)

main90256-08002iBU2#,30,31,32,33,34..5H197708-198408

33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)

main33772-20010iBU2#,30,31,32,33,34..5H197708-198408

33773SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)

main33773-20011iBU20,30..5H197708-197710

CROSSSHAFT NO.1

main33773-20020iBU2#,30,31,32,33,34..5H197708-198408

CROSSSHAFT NO.2

main33773-36030iBU2#,30,31,32,33,34..5H197710-198408

CROSSSHAFT NO.1

33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)

main33775-20020iBU2#,30,31,32,33,34..5H197708-198408

CROSSSHAFT NO.1;CROSSSHAFT NO.2 LH

main33775-20020iBU2#,30,31,32,33,34..5H197710-198408

CROSSSHAFT NO.2 RH

33789COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT)

main33789-36030iBU2#,30,31,32,33,34..5H197708-198408

9017908146

main90179-08146

9020106543

main90201-06543

9020115002

main90201-15002

9058014002

main90580-14002

9161140825

main91611-40825

9161160820

main91611-60820

9161160825

main91611-60825

9162140825

main91621-40825

9165140614

main91651-40614

9165140820

main91651-40820

9165661030

main91656-61030

9411040800

main94110-40800

9411041000

main94110-41000

9418041000

main94180-41000

9451100800

main94511-00800

9451200800

main94512-00800

9451201000

main94512-01000

9461110800

main94611-10800

67 parts on this diagram · 3 diagrams in section
