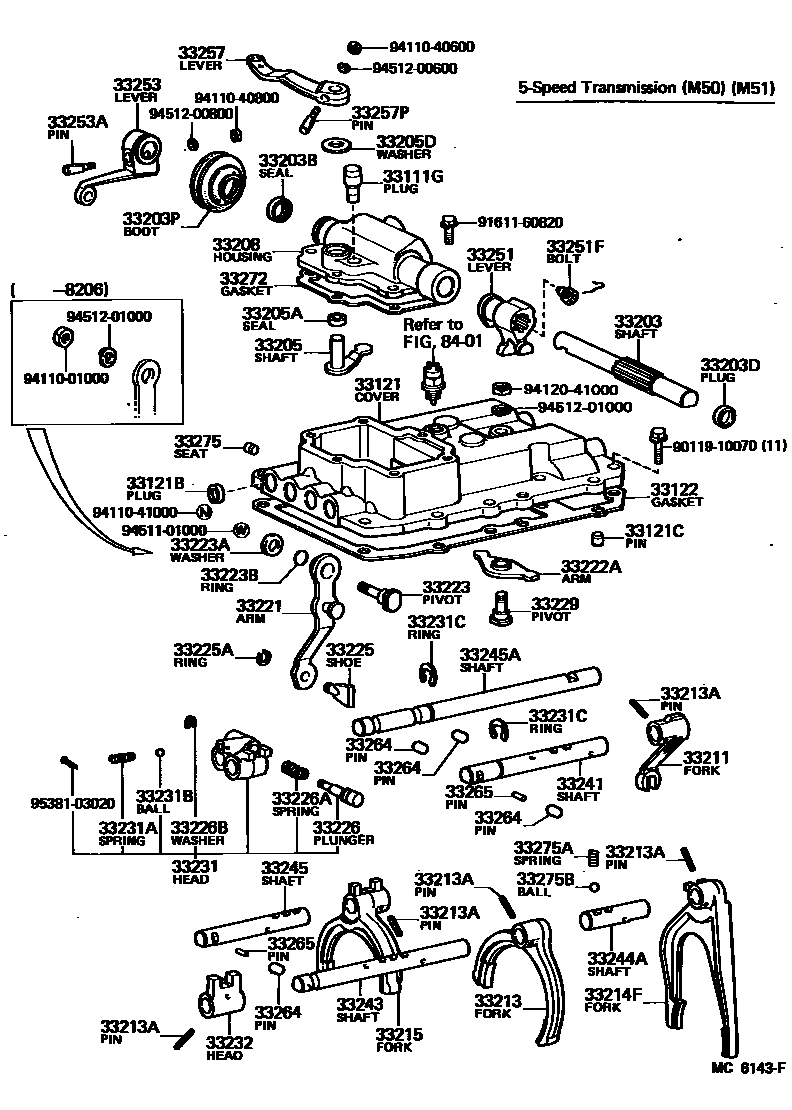

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03033iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50197708-198204

main90930-03065iBU20..BTP..DSL;BU20,30,35..M50197708-198204

main90930-03075iBU2#,3#,4#,50198204-198212

main90930-03085iBU2#,3#,4#,5#198212-198401

main90930-03090iBU2#,3#,4#,51198401-198408

33121COVER, MANUAL TRANSMISSION CASE

main33121-36040iBU2#,30,32,34,35,36,37,4#,5#197708-198408

main33121-36070iBU20..BTP197708-198008

main33121-36080iBU20,30..M50197708-198408

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90331-16050iBU2#,3#,4#,5#197708-198408

sub96411-11600

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iBU2#,3#,4#,5#197708-198408

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-36011iBU2#,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33122-36020iBU20,22,30,33,35..M50197708-198408

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-36012iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33261-36040iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90312-17001iBU2#,3#,4#,5#197708-198408

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main90331-20001iBU20,30..M50;BU20..BTP..DSL197712-197906

sub90331-20044

main90331-20044iBU20,22,30,33,35..M50197906-198408

main96411-12000iBU20..BTP;BU20,30..M50197708-197712

sub96411-42000

main96411-12500iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

sub96411-42500

33203PBOOT, DUST(FOR SHIFT LEVER SHAFT)

main33531-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-36031iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33205-36050iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iBU2#,3#,4#,5#197708-198408

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13151iBU2#,3#197708-197912

main94612-11300iBU2#,3#,4#,5#197912-198408

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33271-36041iBU25,3#..H50;BU20..H50..(20T,275)197708-198204

W/NEUTRAL SAFETY SWITCH

main33271-36051iBU30..06S197708-198204

W/O NEUTRAL SAFETY SWITCH

main33271-36060iBU20..DTP;BU20..ST..20T;BU22..03S..ST..IV3;BU22..ST..20T..CBU197708-198408

main33271-36060iBU20..BTP;BU20,30..M50197804-197904

W/NEUTRAL SAFETY SWITCH

main33271-36060iBU20..ST..20T198008-198204

W/EXHAUST BRAKE

main33271-36070iBU20,22..ST197708-198408

sub33271-36060

sub90341-16013

main33271-36090iBU2#,32,34,36,37,4#,5#..H50,H51198204-198408

33211FORK, REVERSE SHIFT

main33211-36011iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33211-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33213FORK, 1ST & 2ND SHIFT

main33212-36011iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main33212-36020iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05016iBU2#,3#,4#,5#197708-198408

L=25.4-25.5

main90254-05045iBU20,3#197708-198204

L=44.5-45.5

33214FFORK, 5TH SHIFT

main33214-36020iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50197708-198204

main33214-36030iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main33214-36041iBU2#,32,34,36,37,4#,5#..H50,H51198204-198408

33215FORK, 3RD & 4TH SHIFT

main33213-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main33213-36030iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

33221ARM, REVERSE SHIFT

main33201-36030iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33201-36040iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33222AARM, 5TH SHIFT

main33222-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main33222-36030iBU2#,32,34,36,37,4#,5#..H50,H51198204-198408

main33227-36010iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50197708-198204

33223PIVOT, SHIFT ARM

main33223-36010iBU2#,3#197708-198206

sub33223-36020

main33223-36020iBU2#,32,36,4#,50..H50,H51198204-198408

33223AWASHER(FOR SHIFT ARM PIVOT)

main90201-10045iBU2#,32,36,4#,50..H50,H51198204-198407

sub90201-10092

main90201-10092iBU2#,3#,4#,51198407-198408

33223BRING, O(FOR SHIFT ARM PIVOT)

main96711-19010iBU2#,32,36,4#,50..H50,H51198204-198408

33225SHOE, SHIFT ARM

main33225-36030iBU2#,3#,4#,5#197708-198408

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main90520-08098iBU2#,3#,4#,5#197708-198408

33226PLUNGER, REVERSE SHIFT RETURN

main33226-36011iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33226-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)

main90501-16029iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main90501-16051iBU2#,30,31,32,34,35,36,37,4#,5#..H50,H51197909-198408

main90501-16750iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50197708-197909

33226BWASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)

main90213-06001iBU2#,3#,4#,5#197708-198408

33229PIVOT, 5TH SHIFT ARM

main33229-36020iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33231HEAD, REVERSE SHIFT

main33202-36030iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main33202-36040iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

33231ASPRING, REVERSE SHIFT RESTRICT

main90501-09031iBU2#,30,32,34,35,36,37,4#,5#..H50198109-198408

main90501-12019iBU2#,30,31197708-198408

main90501-14396iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50197708-197909

33231BBALL, REVERSE SHIFT RESTRICT

main90360-06004iBU2#,3#,4#,5#197708-198408

33231CRING(FOR REVERSE SHIFT HEAD)

main90523-15025iBU2#,3#,4#,5#197708-198408

33232HEAD, 1ST & 2ND SHIFT

main33232-36020iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33232-36040iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33241SHAFT, REVERSE SHIFT FORK

main33241-36021iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main33241-36030iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-36030iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

sub33242-36031

main33242-36040iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33244ASHAFT, 5TH SHIFT FORK

main33244-36010iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main33244-36020iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50197708-198204

main33244-36030iBU2#,32,34,36,37,4#,5#..H50,H51198204-198408

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-36020iBU20..T2;BU20,30..ST197708-198408

main33243-36031iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50197708-198408

33245ASHAFT, 5TH SHIFT ARM

main33245-36021iBU20,30,35..M50197708-198408

main33245-36030iBU25,3#..H50;BU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50197708-198408

sub33245-60032

33251LEVER, SHIFT & SELECT

main33251-36013iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33251-36030iBU20..HRF,SRF,TW1,TW2198008-198408

W/EXHAUST BRAKE

main33251-36030iBU20..BTP;BU20,30..M50197708-198408

main33251-36050iBU20,22..ST197708-198408

sub33251-36030

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33253LEVER, SHIFT OUTER, NO.1

main33253-36041iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33253-36050iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-57010iBU2#,3#,4#,5#197708-198408

33257LEVER, SELECT OUTER

main33257-36040iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33257-36050iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBU2#,3#,4#,5#197708-198408

OD=6,P=1.0

main33282-36010iBU20,30..M50;BU20..BTP..DSL197708-197912

RED PAINT

main33282-36020iBU20,30..M50;BU20..BTP..DSL197708-197912

YELLOW PAINT

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90361-10008iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main90361-10037iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05034iBU2#,3#,4#,50197708-198207

main90361-05001iBU2#,3#,4#,5#198207-198408

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-36011iBU2#,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

main33272-36020iBU20,22,30,33,35..M50197708-198408

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90250-10215iBU2#,3#,4#,5#197708-198408

main90341-12008iBU37..275,30T198302-198408

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14075iBU37..275,30T198302-198408

SUPER SHIFT SIDE

main90501-14237iBU20..BTP..DSL;BU20,22,30,33,35..M50197708-198408

main90501-14386iBU20..CTP;BU25,3#..H50;BU20..KKT,TSK;BU20..TB..H50197708-198008

WD=1.4,CW=8.5

main90501-14772iBU20..KKT,TSK;BU20..CTP,FTP;BU20..TB..H50;BU21,22,23,25,30,31,32,34,35,36,37,4#,5#..H50,H51197708-198408

WD=1.7,CW=13

33275BBALL, SHAFT DETENT

main90360-10003iBU2#,3#,4#,5#197708-198408

8401

9011910070

main90119-10070

9161160820

main91611-60820

9411001000

main94110-01000

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9451101000

main94511-01000

9451200600

main94512-00600

9451200800

main94512-00800

9451201000

main94512-01000

9538103020

main95381-03020

64 parts on this diagram · 4 diagrams in section
