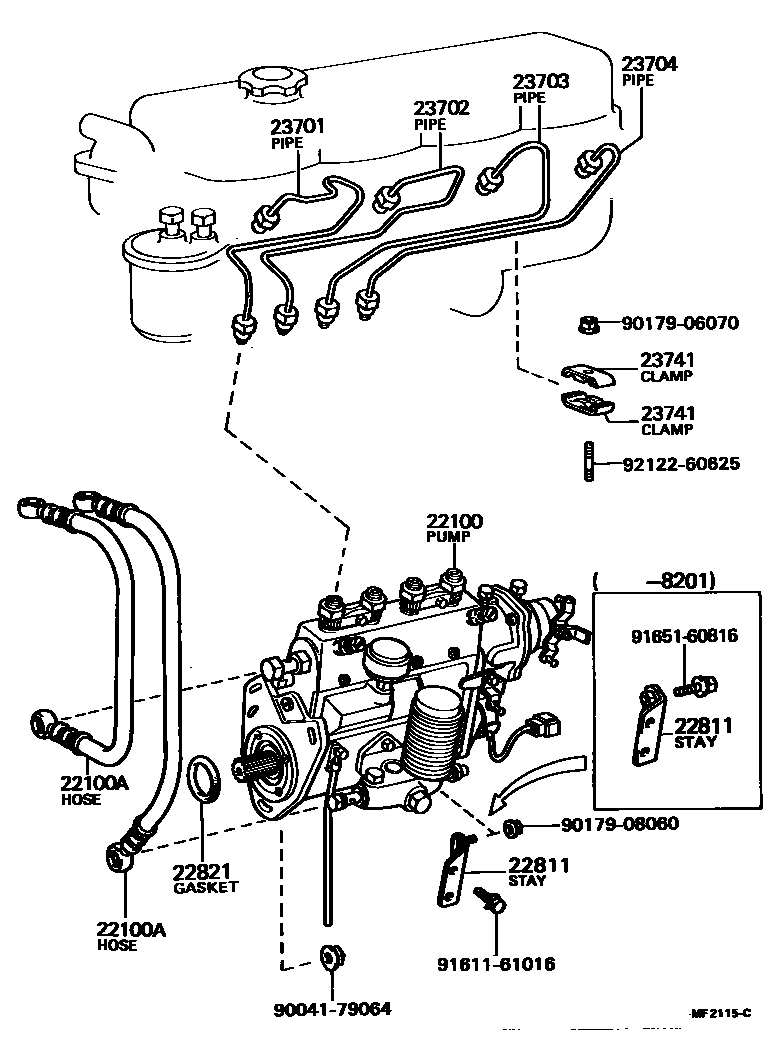

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-56041iB..BU2#,30197708-197804

sub22100-57050

main22100-56051iB..BU2#,30197708-197904

W/HAC

main22100-56200iB..BU22,33198302-198408

main22100-57011i2B..BU31197904-198008

main22100-57050iB..BU2#,30,35197804-198201

sub22100-57011

main22100-57051iB..BU20,30198201-198302

sub22100-58011

main22100-58010i3B..BU36198009-198201

sub22100-58020

main22100-58011i3B..BU21,32,36,4#,50198201-198302

main22100-58200i3B..BU23,34,37,4#,51198302-198408

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56030iB,2B..BU2#,3#197708-198008

L=370

main23801-56040iB,3B..BU2#,3#,4#,50198008-198302

L=312

main23802-56030iB,2B..BU2#,3#197708-198008

L=275

main23802-56040iB,3B..BU2#,3#,4#,50198008-198302

main95332-08030iB,3B..BU2#,3#,4#,51198302-198408

sub95333-08030

22811STAY, INJECTION PUMP, NO.1

main22811-56010iB,2B,3B..BU2#,3#197708-198201

main22811-56011iB,3B..BU2#,3#,4#,50198201-198302

main22811-56020iB,3B..BU2#,3#,4#,51198302-198408

22821GASKET, INJECTION PUMP

main90301-49003iB,3B..BU2#,3#,4#,51198302-198408

main90301-77001iB,2B,3B..BU2#,3#,4#,50197811-198302

main90301-78177iB..BU2#,30197708-197811

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-56010iB,2B..BU2#,3#197708-198008

main23701-56030iB,3B..BU2#,3#,4#,50198008-198302

main23701-56040i3B..BU23,34,37,4#,51198302-198408

main23701-56050iB..BU22,33198302-198408

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-56010iB,2B..BU2#,3#197708-198008

main23702-56030iB,3B..BU2#,3#,4#,50198008-198302

main23702-56040i3B..BU23,34,37,4#,51198302-198408

main23702-56050iB..BU22,33198302-198408

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-56020iB,3B..BU2#,3#,4#,50198008-198302

main23703-56030iB,2B..BU2#,3#197708-198008

main23703-56040i3B..BU23,34,37,4#,51198302-198408

main23703-56050iB..BU22,33198302-198408

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-56020iB,3B..BU2#,3#,4#,50198008-198302

main23704-56030iB,2B..BU2#,3#197708-198008

main23704-56040i3B..BU23,34,37,4#,51198302-198408

main23704-56050iB..BU22,33198302-198408

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

9004179064

main90041-79064

9017906070

main90179-06070

9017908060

main90179-08060

9161161016

main91611-61016

9165160816

main91651-60816

9212260625

main92122-60625

15 parts on this diagram · 2 diagrams in section
