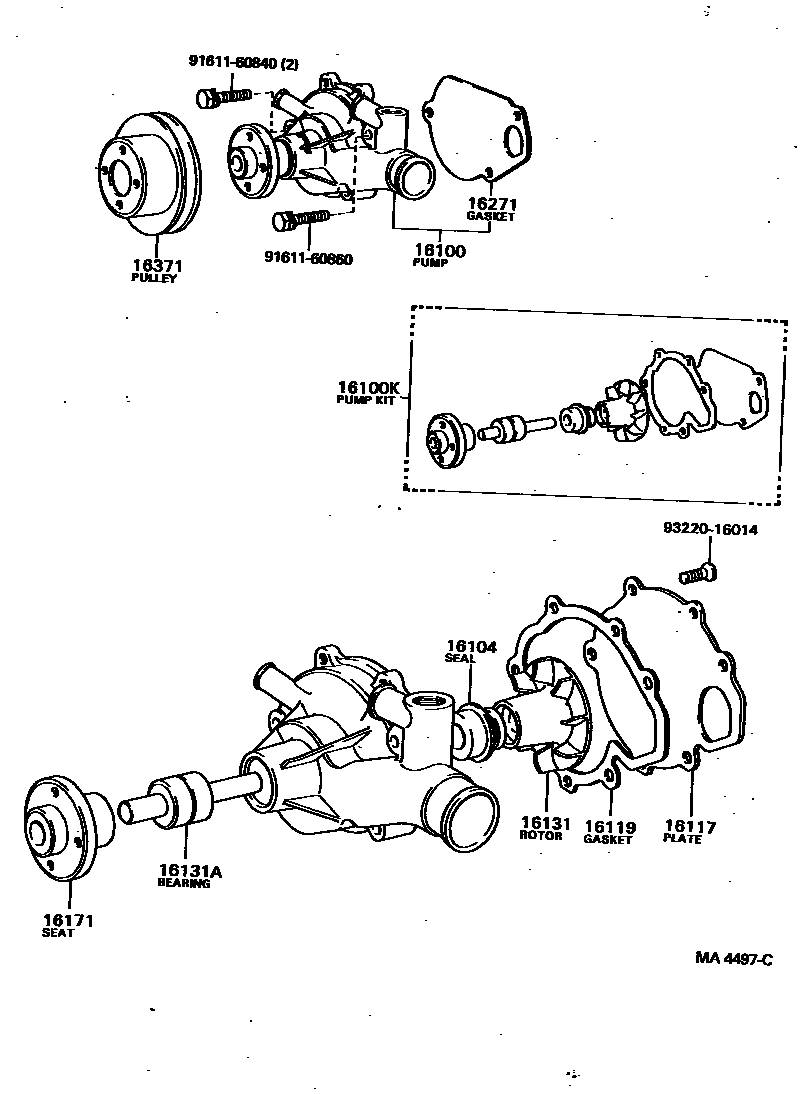

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-59017iB,2B..BU2#,3#197708-198008

main16100-59065iB..BU20,22,30,33,35198008-198408

main16100-59075i3B..BU21,23,32,34,36,37,4#,5#198009-198408

16100KPUMP KIT, WATER

main04161-56020iB,2B..BU2#,3#197708-198008

sub04161-56021

main04161-56040i3B..BU21,23,32,34,36,37,4#,5#198009-198408

main04161-56060iB..BU20,22,30,33,35198008-198408

sub04161-56061

16104SEAL SET, WATER PUMP

main16104-41110iB,2B..BU2#,3#197708-198008

main16104-41111iB,3B..BU2#,3#,4#,5#198008-198408

16117PLATE, WATER PUMP

main16117-56010iB,2B..BU2#,3#197708-198008

main16117-56040iB,3B..BU2#,3#,4#,5#198008-198408

16119GASKET, WATER PUMP BODY

main16119-56010iB,2B..BU2#,3#197708-198008

main16119-56040iB,3B..BU2#,3#,4#,5#198008-198408

sub16119-56041

16131ROTOR, WATER PUMP

main16131-56020iB,2B..BU20,22,25,30,31,33,35197708-198408

main16131-56030i3B..BU21,23,32,34,36,37,4#,5#198009-198408

16131ABEARING, WATER PUMP

main90369-30028iB,2B,3B..BU2#,3#,4#,5#197708-198408

WPB16112-2RS

16171SEAT, WATER PUMP PULLEY

main16171-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

16271GASKET, WATER PUMP

main16271-56012iB,2B..BU2#,3#197708-198008

main16271-56020iB,3B..BU2#,3#,4#,5#198008-198408

sub16271-56030

16371PULLEY, FAN

main16371-56010iB,2B..BU2#,3#197708-198008

main16371-56020iB,3B..BU2#,3#,4#,50198008-198211

main16371-56021iB,3B..BU2#,3#,4#,5#198211-198408

9161160840

main91611-60840

9161160860

main91611-60860

9322016014

main93220-16014

13 parts on this diagram · 2 diagrams in section
