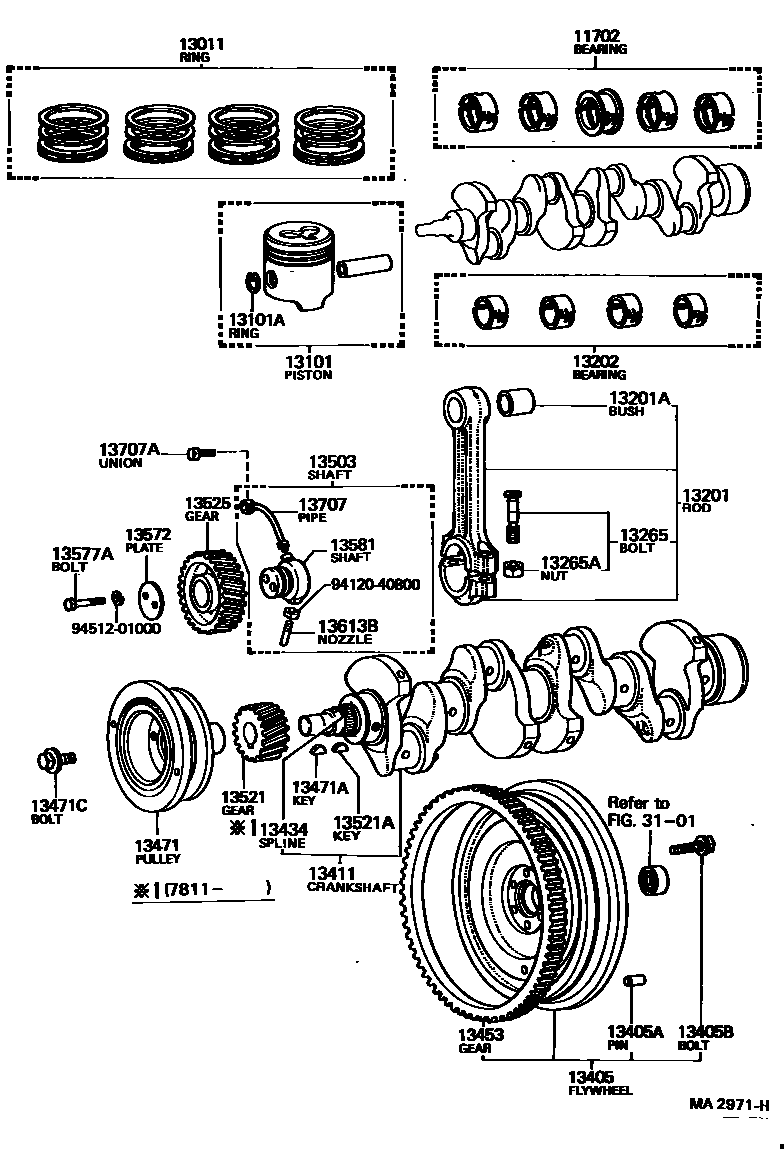

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11702BEARING SET, CRANKSHAFT

main11702-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main11704-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main11705-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

main11707-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

13011RING SET, PISTON

main13011-56013iB..BU20,22,25,30,33,35197708-198408

STD

main13011-57010i2B..BU31197904-198008

STD

main13011-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

main13015-56013iB..BU20,22,25,30,33,35197708-198408

O/S 1.00

13101PISTON SUB-ASSY, W/PIN

main13101-56021iB..BU2#,30197708-198008

STD

main13101-56030iB..BU20,22,30,33,35198008-198408

STD

main13101-57011i2B..BU31197904-198008

STD

main13101-58011i3B..BU21,23,32,34,36,37,4#,5#198009-198408

main13105-56021iB..BU2#,30197708-198008

O/S 1.00

sub13105-56030

main13105-56030iB..BU20,22,30,33,35198008-198408

O/S 1.00

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-31001iB..BU22,33198402-198408

main90521-33130iB,2B..BU20,22,25,30,31,33,35197708-198402

main90521-36003i3B..BU21,23,32,34,36,37,4#,5#198009-198408

13201ROD SUB-ASSY, CONNECTING

main13201-56010iB,2B..BU2#,3#197708-198008

sub13201-56020

main13201-56020iB..BU20,22,30,33,35198008-198403

sub13201-59045

main13201-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

sub13201-59035

main13201-59045iB..BU22198403-198408

sub13201-59049

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73065iB,2B..BU20,22,25,30,31,33,35197708-198408

sub90999-73121

main90999-73088i3B..BU21,23,32,34,36,37,4#,5#198009-198408

13202BEARING SET, CONNECTING ROD

main13202-56010iB,2B..BU20,22,25,30,31,33,35197708-198403

STD

main13202-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

main13204-56010iB,2B..BU20,22,25,30,31,33,35197708-198403

U/S 0.25

main13204-56011iB..BU22198403-198408

main13204-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

main13205-56010iB,2B..BU20,22,25,30,31,33,35197708-198403

U/S 0.50

main13205-56011iB..BU22198403-198408

main13205-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

main13207-56010iB,2B..BU20,22,25,30,31,33,35197708-198403

U/S 1.00

main13207-56011iB..BU22198403-198408

main13207-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

13265BOLT, CONNECTING ROD

main13265-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

main13265-59015iB,2B..BU20,22,25,30,31,33,35197708-198408

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-11112iB,2B..BU20,22,25,30,31,33,35197708-198402

sub90170-11008

main90170-12010i3B..BU21,23,32,34,36,37,4#,5#198009-198402

main90179-11006iB..BU22,33198402-198408

main90179-12044i3B..BU23,34,37,4#,51198402-198408

13405FLYWHEEL SUB-ASSY

main13405-56031iB,3B..BU2#,3#,4#,51198406-198408

main13405-59025iB,2B..BU2#,3#197708-198008

N=112

main13405-59055iB,3B..BU2#,3#,4#,5#198008-198406

sub13405-56031

sub90105-13004

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-10192iB,2B,3B..BU2#,3#,4#,5#197708-198408

13405BBOLT, FLYWHEEL SETTING

main90105-12039iB,2B..BU2#,3#197708-198008

main90105-13002iB,3B..BU2#,3#,4#,5#198008-198408

13411CRANKSHAFT

main13401-56010iB..BU2#,30197708-197811

sub13401-56011

main13401-56011iB,2B..BU2#,3#197811-198008

sub13401-56012

sub90561-50001

main13401-56020iB..BU20,22,30,33,35198008-198408

sub13401-56021

sub90561-50001

main13401-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198408

sub13401-58020

13434SPLINE, OIL PUMP DRIVE

main13434-56011iB,2B..BU2#,3#197811-198008

main13519-56010iB,3B..BU2#,3#,4#,5#198008-198408

13453GEAR, FLYWHEEL RING

main13453-56020iB,2B,3B..BU2#,3#,4#,5#197708-198408

sub13453-56021

13471PULLEY, CRANKSHAFT

main13470-56020iB..BU2#,30197708-197904

main13470-56030iB..BU2#,30197708-197904

W/COOLER

main13470-56042iB,2B..BU2#,3#197908-198008

W/POWER STEERING

main13470-56060iB,2B..BU2#,3#197904-198008

main13470-56080iB,2B..BU2#,3#197904-198008

W/COOLER

main13470-56100iB,3B..BU20,3#198008-198110

sub13470-56101

main13470-56101iB,3B..BU2#,3#,4#,5#198110-198408

sub13470-56170

main13470-56110iB,3B..BU20,3#198008-198112

W/POWER STEERING & COOLER

sub13470-56101

sub44319-36050

sub91611-60825

main13470-56130iB,3B..BU20,3#198008-198204

W/COOLER

sub13470-56101

sub88451-25020

sub91611-60816

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010iB,2B..BU2#,3#197708-198008

main95161-10416iB,3B..BU2#,3#,4#,5#198008-198408

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16003iB,2B,3B..BU2#,3#,4#,5#197708-198408

*16-1.5PX29-24

13503SHAFT SUB-ASSY, IDLE GEAR

main13504-56010iB,2B..BU2#,3#197708-198008

main13504-56020iB,3B..BU2#,3#,4#,50198008-198302

sub13504-58010

main13581-56040iB,3B..BU2#,3#,4#,51198302-198408

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-56020iB,2B,3B..BU2#,3#,4#,5#197708-198408

N=22

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010iB,2B..BU2#,3#197708-198008

main95161-10519iB,3B..BU2#,3#,4#,5#198008-198408

13525GEAR, IDLE, NO.1

main13525-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

N=35

13572PLATE, IDLE GEAR THRUST

main13572-56010iB,2B,3B..BU2#,3#,4#,5#197708-198408

sub13572-56020

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90101-10031iB,2B..BU2#,3#197708-198008

sub90119-10208

main90119-10208iB,3B..BU2#,3#,4#,5#198008-198408

13581SHAFT, IDLE GEAR, NO.1

main13581-56020iB..BU2#,30197708-197807

sub13504-56010

13613BNOZZLE, TIMING GEAR OIL

main90915-01011iB,2B..BU2#,3#197708-198008

13707PIPE SUB-ASSY, OIL, NO.1

main15707-56010iB..BU2#,30197708-197807

13707AUNION(FOR OIL PIPE, NO.1)

main90044-01010iB,2B,3B..BU2#,3#,4#,50197812-198302

main90401-10007iB..BU2#,30197708-197812

3101

9412040800

main94120-40800

9451201000

main94512-01000
