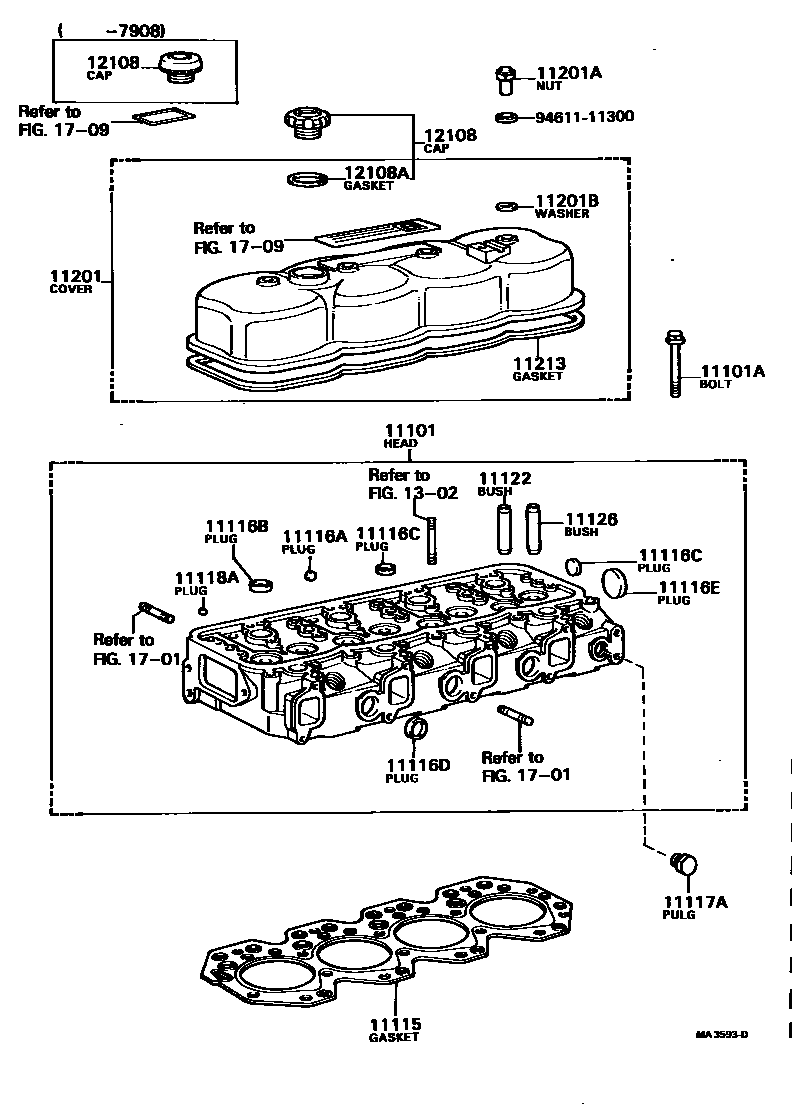

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-56032iB..BU22,33198401-198404

sub11101-56033

main11101-56033iB..BU22,33198404-198408

sub11101-56034

sub90201-14022

main11101-58012i3B..BU23,34,37,4#,51198401-198406

main11101-58013i3B..BU23,34,37,4#,51198406-198408

main11101-59045iB,2B..BU2#,3#197708-198008

sub11101-59046

main11101-59095i3B..BU36198009-198110

sub11101-59096

main11101-59096i3B..BU21,23,32,34,36,37,4#,5#198110-198401

sub11101-58012

sub90116-08123

sub90116-10048

sub90345-54005

sub92132-60822

sub94184-61000

main11101-59105iB..BU20,30,35198008-198110

sub11101-59106

main11101-59106iB..BU20,22,30,33,35198110-198401

sub11101-56032

sub90116-08123

sub90116-10048

sub90345-54005

sub92132-60822

sub94184-61000

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02046iB,2B,3B..BU2#,3#,4#,5#197708-198408

*12-1.25PX119-25

11115GASKET, CYLINDER HEAD

main11115-56010iB,2B..BU2#,3#197708-198008

sub11115-56011

main11115-56020iB..BU20,22,30,33,35198008-198308

sub11115-56021

main11115-56021iB..BU22,33198308-198310

sub11115-56022

main11115-56022iB..BU22,33198310-198408

sub11115-56120

main11115-58010i3B..BU21,23,32,34,36,37,4#,5#198009-198308

sub11115-58011

main11115-58011i3B..BU23,34,37,4#,51198308-198310

sub11115-58012

main11115-58012i3B..BU23,34,37,4#,51198310-198408

sub11115-58040

11116APLUG, TIGHT, NO.1

main90331-11001iB,2B..BU2#,3#197708-198008

OD=10.5

main96411-11200iB,3B..BU2#,3#,4#,5#198008-198408

OD=12

sub96411-41200

11116BPLUG, TIGHT, NO.2

main96411-12500iB,2B,3B..BU2#,3#,4#,5#197708-198408

OD=25

sub96411-42500

11116CPLUG, TIGHT, NO.3

main90331-21001iB,2B,3B..BU2#,3#,4#,5#197804-198408

OD=21

main90331-21039iB..BU2#,30197708-197804

OD=21

11116DPLUG, TIGHT, NO.4

main96411-12800iB,2B,3B..BU2#,3#,4#,5#197708-198408

OD=28

sub96411-42800

11116EPLUG, TIGHT, NO.5

main90331-40024iB,2B,3B..BU2#,3#,4#,5#197708-198408

OD=40

sub96411-44000

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90345-54002iB,2B..BU2#,3#197805-198008

main90345-54005iB,3B..BU2#,3#,4#,5#198008-198408

main90345-54021iB..BU2#,30197708-197805

11118APLUG, STRAIGHT, NO.1

main90043-34024iB,2B..BU2#,3#197911-198008

main90334-07020iB,2B..BU2#,3#197708-197911

L=3.5,OD=6.7

sub90334-08004

11122BUSH, INTAKE VALVE GUIDE

main11122-56020iB,2B,3B..BU2#,3#,4#,5#197708-198308

sub11122-56021

main11122-56021iB,3B..BU2#,3#,4#,51198308-198408

sub11122-56030

11126BUSH, EXHAUST VALVE GUIDE

main11122-56020iB,2B,3B..BU2#,3#,4#,5#197708-198308

sub11122-56021

main11122-56021iB,3B..BU2#,3#,4#,51198308-198408

sub11122-56030

11201COVER SUB-ASSY, CYLINDER HEAD

main11211-59025iB..BU2#,30197708-197806

sub11211-59026

main11211-59026iB..BU2#,30197806-197904

sub11211-59027

main11211-59027iB..BU2#,30197904-197908

sub11211-59036

main11211-59035i2B..BU31197904-197908

sub11211-59036

main11211-59036iB,2B..BU2#,3#197908-198008

sub11211-59037

main11211-59045iB,3B..BU2#,3#,4#,5#198008-198408

sub11211-56031

sub11213-56012

sub11278-77010

sub11293-56012

sub11293-56040

sub11293-57010

sub11293-57030

sub11293-58010

sub12180-70010

sub90210-12001

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main11295-46010iB,2B,3B..BU2#,3#,4#,5#197708-198408

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-12001iB,3B..BU2#,3#,4#,5#198008-198408

main90210-12002iB,2B..BU2#,3#197708-198008

11213GASKET, CYLINDER HEAD COVER

main11213-56010iB..BU2#,30197708-197806

sub11213-56011

main11213-56011iB,2B,3B..BU2#,3#,4#,5#197806-198408

sub11213-56012

12108CAP SUB-ASSY, OIL FILLER

main12180-13010iB,2B,3B..BU2#,3#,4#,50197908-198301

main12180-70010iB,3B..BU2#,3#,4#,5#198301-198408

sub12108-78010

main12181-31020iB,2B..BU2#,3#197708-197908

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140iB,2B,3B..BU2#,3#,4#,5#197708-198408

1302

1701

1709

9461111300

main94611-11300

22 parts on this diagram · 2 diagrams in section
