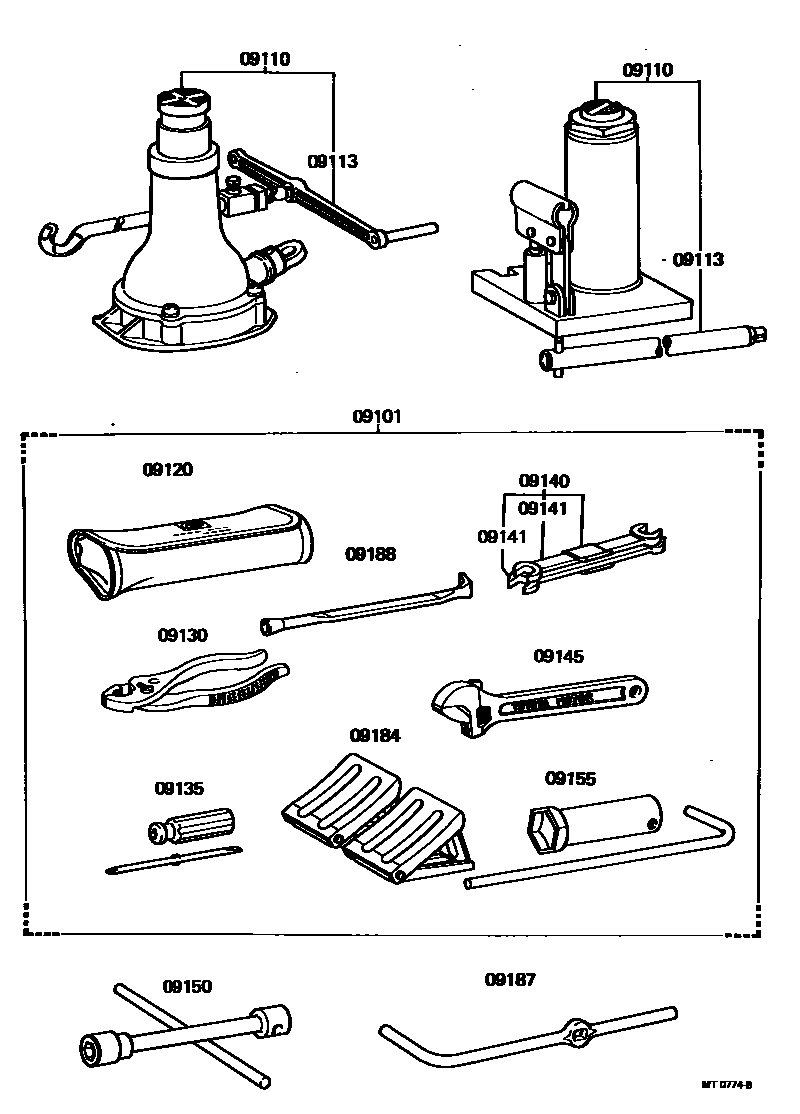

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-25054iBU20,22,30,33,36,37..H51,M50198205-198408

main09102-36090iBU20..DMP,V;BU20..BTP,CTP;BU20,30..T1,T3,TW1197708-197904

sub09102-36140

main09102-36100iBU20..T2197708-197904

main09102-36120iBU20,30,35..M50197904-198205

main09102-36220iBU36..TB..H50;BU20,21,30,31,32,35,40,50..H50197904-198205

main09102-36240iBU2#,32,34,36,37,4#,5#..H50198205-198408

09110JACK ASSY

main09110-36030iBU20..TS..06S197708-197903

main09110-36031iBU20..TS..06S197903-197904

main09110-36041iBU20,21,22,23..(T1,T3)..20T197708-198408

sub09111-36042

sub09113-37020

main09110-36051iBU30197708-197904

main09110-36070iBU20..T2197708-197904

main09110-36080iBU30,35..M50..WT197904-198204

main09110-36090iBU35,36,37,45,46..H50198008-198408

sub09111-36110

main09110-36131iBU40,41,5#198204-198408

sub09111-36131

sub09113-37050

09113HANDLE, JACK

main09113-25040iBU20,22..HRF,SRF,TW1197904-198408

main09113-36020iBU20..HRF,SRF,T2,TW1197708-197904

main09113-36060iBU20,21,22,23..(T1,T3)..20T197708-198408

sub09113-37020

main09113-36070iBU23..L2;BU23..BTP;BU20..BTP..DSL;BU20,21,23..275;BU20,21..KKT,TSK197708-198401

main09113-36080iBU20..M50..WT197904-198204

main09113-36090iBU20,22,30,33,36,37..(H51,M50)..WT198204-198408

main09113-36100iBU23..L2;BU23..BTP;BU23..275198401-198408

main09113-36130iBU40,41,5#198204-198408

sub09113-37050

09120BAG, TOOL

main09120-36020iBU20,22,30,33,35,36,37..H51,M50198010-198408

main09120-36030iBU2#,30,32,34,36,37,4#,5#..H50198010-198408

09130PLIERS

main09130-00010iBU2#,3#,4#,50197904-198205

sub09130-00012

main99913-11500iBU2#,3#,4#,5#198205-198408

main99913-22000iBU20,30197708-197904

sub09029-20200

09135DRIVER, SCREW

main99915-10700iBU2#,3#,4#,5#197708-198408

09140SPANNER SET

main09140-22010iBU20,30197708-197904

sub09140-00070

main09140-27010iBU2#,3#,4#,5#197904-198408

09141SPANNER

main09141-00030iBU20,30197708-197904

10X12

sub09141-00120

main09141-00050iBU20,30197708-197904

14X17

sub09141-00130

main99914-11012iBU2#,3#,4#,5#197904-198408

main99914-11417iBU2#,3#,4#,5#197904-198408

09145WRENCH, MONKEY

main99911-10200iBU2#,3#,4#,5#197904-198408

sub99911-11200

main99911-10250iBU20,30197708-197904

sub99911-20250

09150WRENCH, HUB NUT BOX

main09150-25020iBU20,3#197904-198008

main09150-36011iBU20,30197708-197904

main09150-55010iBU40,41,5#198204-198408

main09150-55020iBU2#,30,32,34,35,36,37,45,46..H50198008-198408

09155WRENCH, SPARK PLUG

09184STOPPER, WHEEL

main09184-00031×2iBU2#,3#,4#,5#197708-198408

sub09184-60010

09187HANDLE, SPARE WHEEL CARRIER

main09187-36060iBU20,21,3#,45197904-198302

main09187-36070iBU40,50198204-198302

09188WRENCH, VALVE CAP

main09188-00010iBU20..T2197708-197904

main09188-00030iBU20,22,30,33,35,36,37..H51,M50197904-198408

sub09052-1C200

14 parts on this diagram · 1 diagram in section
