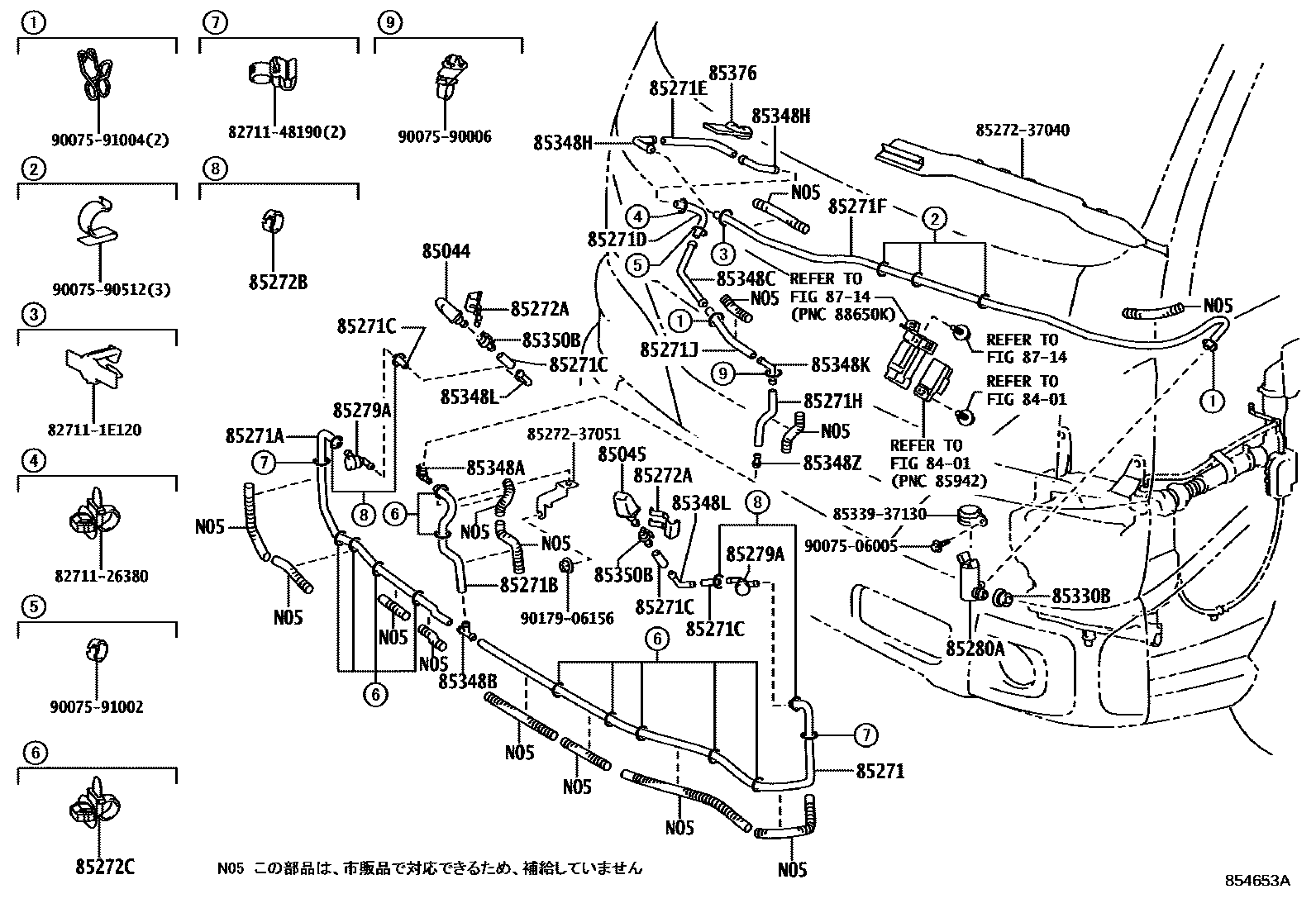

HEADLAMP CLEANER
8401
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
85271DHOSE, HEADLAMP CLEANER, NO.5
85271EHOSE, HEADLAMP CLEANER, NO.6
85271FHOSE, HEADLAMP CLEANER, NO.7
85271HHOSE, HEADLAMP CLEANER, NO.8
85271JHOSE, HEADLAMP CLEANER, NO.9
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85272CCLAMP, HEADLAMP CLEANER, NO.3
85279AJOINT, HEADLAMP CLEANER HOSE
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
85350BJOINT, HEADLAMP CLEANER ELBOW, NO.4
85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
8714
827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E120
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
8271148190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48190
8527237040CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-37040
8527237051CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-37051
8533937130CAP SUB-ASSY, RESERVE TANK
main85339-37130
9007506005
main90075-06005
9007590006
main90075-90006
9007590512
main90075-90512
9007591002
main90075-91002
9007591004
main90075-91004
9017906156
main90179-06156
40 parts on this diagram · 1 diagram in section
