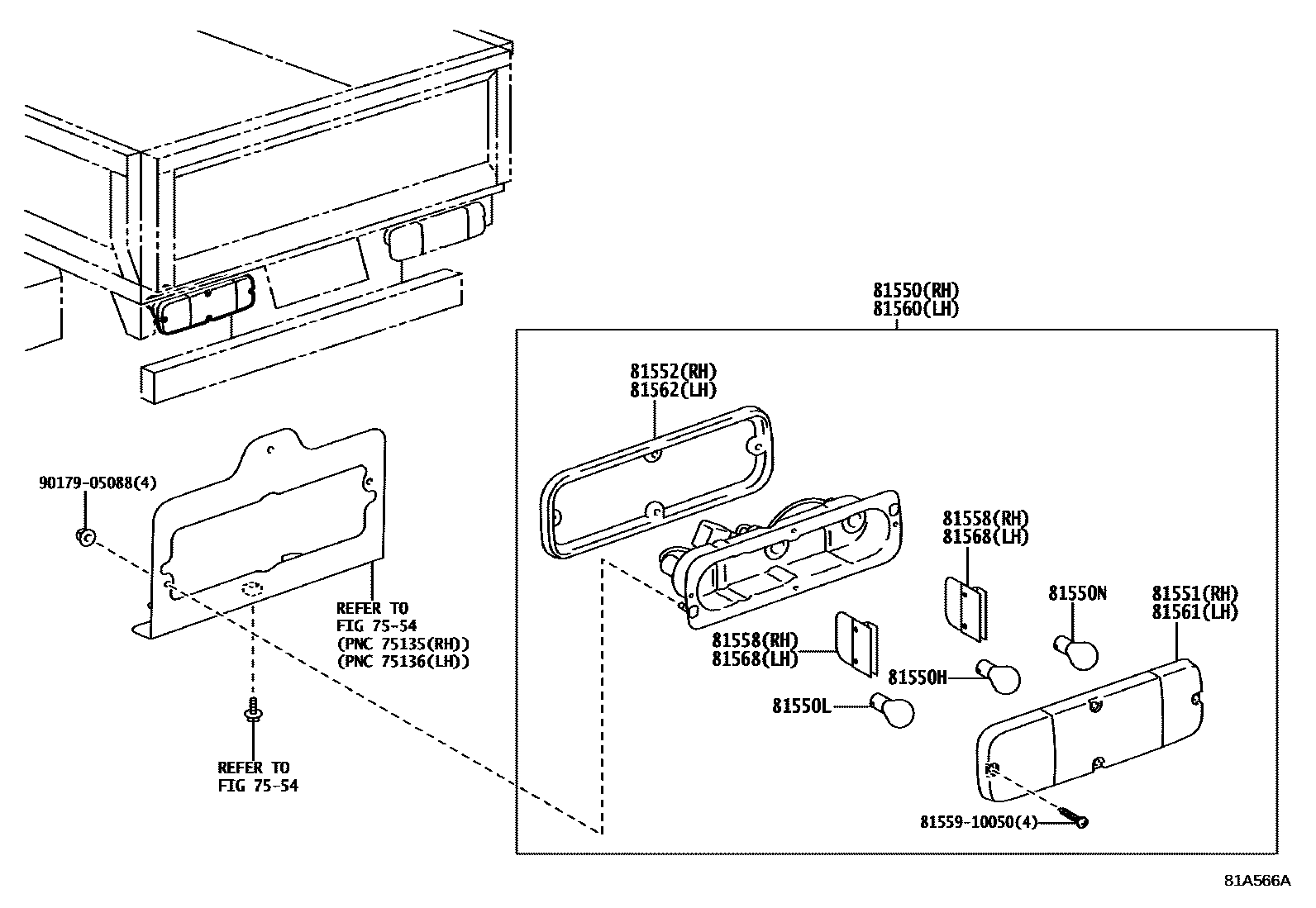

REAR COMBINATION LAMP

0001 1 0002 1����������� OR ������

7554

81550LAMP ASSY, REAR COMBINATION, RH

main81550-25110iTRY230..125T..CBU202108

main81550-25110iGDY231,281..CBU202108-202509

main81550-25130iTRY230..IV3202108-202509

main81550-37042iTRY230..IV6202108-202509

81550HBULB, TAIL & STOP LAMP

main99132-21210iGDY231,281202108-202509

main99132-21210iTRY230202108

81550LBULB, REAR TURN SIGNAL LAMP

main99132-11210iTRY230..125T..CBU202108-202509

main99132-11210iTRY230202108

81550NBULB, BACK UP LAMP

main99132-11210iGDY231,281202108-202509

main99132-11210iTRY230..125T..CBU202108

81551LENS, REAR COMBINATION LAMP, RH

main81551-35061iTRY230..125T..CBU202108

main81551-35061iGDY231,281..CBU,IV3202108-202509

main81551-60442iGDY231,281..SCB..T4..IV3202108-202509

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-26040iGDY231,281..CBU,IV3202108-202509

main81552-26040iTRY230..CBU,IV3202108

main81552-95400iGDY231,281..SCB..T4..IV3202108-202509

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-26040iGDY231,281..CBU,IV3202108-202509

main81557-26040iTRY230..CBU,IV3202108

81560LAMP ASSY, REAR COMBINATION, LH

main81560-25100iTRY230..CBU202108

main81560-25100iGDY231,281..CBU202108-202509

main81560-25120iTRY230..IV3202108-202509

main81560-37062iTRY230..IV6202108-202509

81561LENS, REAR COMBINATION LAMP, LH

main81561-35061iTRY230..125T..CBU202108

main81561-35061iGDY231,281..CBU,IV3202108-202509

main81561-60372iTRY230..IV6202108-202509

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-26040iGDY231,281..CBU,IV3202108-202509

main81562-26040iTRY230..CBU,IV3202108

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-26040iGDY231,281..CBU,IV3202108-202509

main81557-26040iTRY230..CBU,IV3202108

8155910050MOULDING, REAR COMBINATION LAMP, RH

main81559-10050

9017905088

main90179-05088

14 parts on this diagram · 2 diagrams in section
