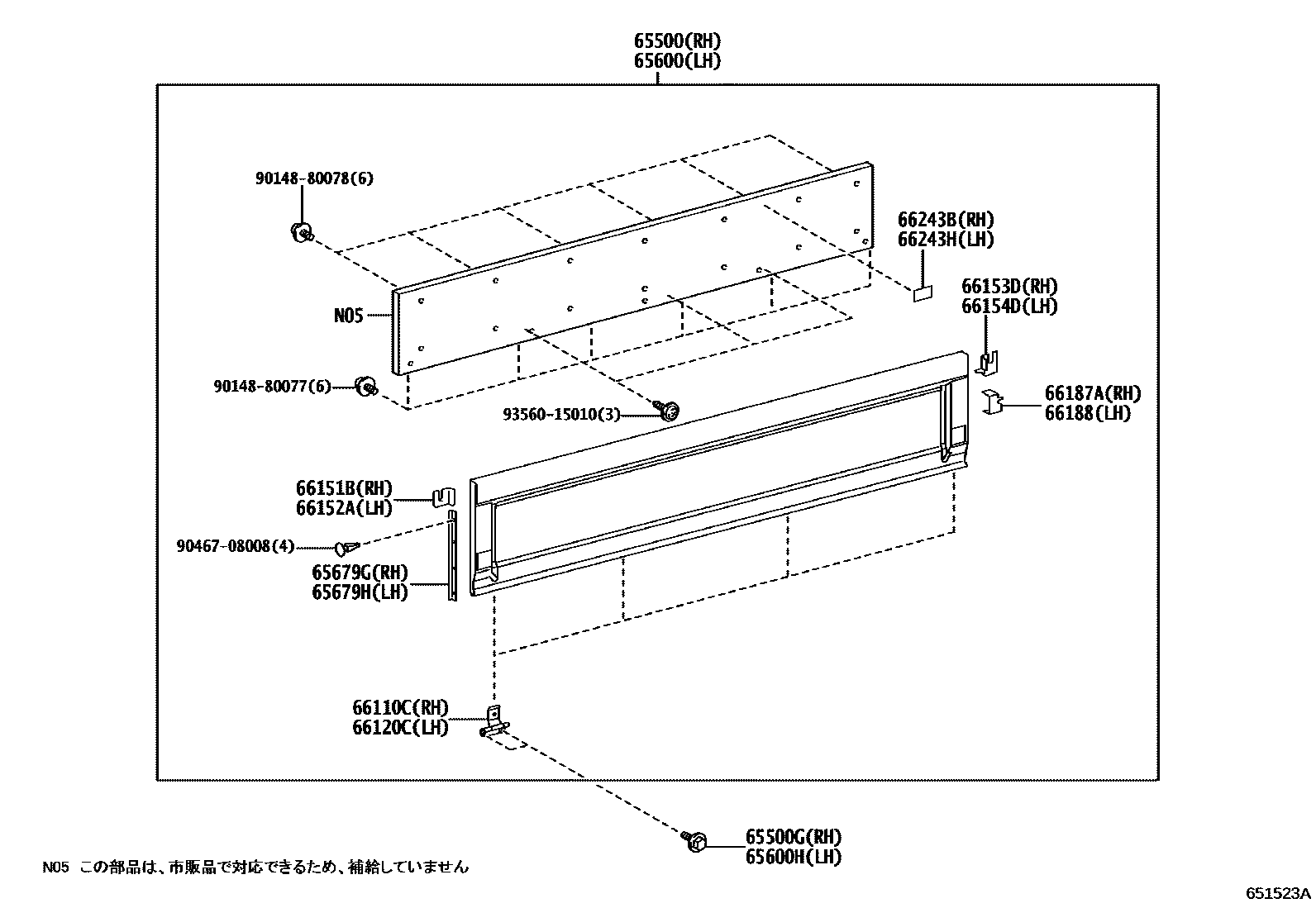

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1��������� 0004 1���������� 0005 1 0006 1

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-25300iGDY231,281,TRY230..DCB..(T2,T4)..CBU202108-202307

main65500-25301iGDY231,281,TRY230..DCB..(T2,T4)..CBU202308

main65500-25310iGDY231,281,TRY230..SCB..(T2,T4)..CBU202108-202307

main65500-25311iGDY231,281,TRY230..SCB..(T2,T4)..CBU202308

main65500-26052iGDY231,281,TRY230..DCB..TS202108

main65500-26062iGDY231,281,TRY230..SCB..TS202108

65500GBOLT, W/WASHER(FOR SIDE GATE, RH)

main91551-80820iGDY231,281,TRY230..SCB..(T2,T4)..CBU202108

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-25300iGDY231,281,TRY230..DCB..(T2,T4)..CBU202108-202307

main65600-25301iGDY231,281,TRY230..DCB..(T2,T4)..CBU202308

main65600-25310iGDY231,281,TRY230..SCB..(T2,T4)..CBU202108-202307

main65600-25311iGDY231,281,TRY230..SCB..(T2,T4)..CBU202308

main65600-26052iGDY231,281,TRY230..DCB..TS202108

main65600-26062iGDY231,281,TRY230..SCB..TS202108

65600HBOLT, W/WASHER(FOR SIDE GATE, LH)

main91551-80820iGDY231,281,TRY230..DCB..(T2,T4)..CBU202108

65679GSEAL, SIDE GATE

main65679-25040iGDY231,281,TRY230..TS202108

main65679-37011iGDY231,281,TRY230..(T2,T4)..CBU202108

65679HSEAL, SIDE GATE

main65679-37011iGDY231,281,TRY230..(T2,T4)..CBU202108

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65010-37071iGDY231,281,TRY230..DCB..(T2,T4)..CBU202108

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main65010-37071iGDY231,281,TRY230..DCB..(T2,T4)..CBU202108

66151BLATCH, SIDE GATE, FRONT RH

main66151-37030iGDY231,281,TRY230..(T2,T4)..CBU202108

66152ALATCH, SIDE GATE, FRONT LH

main66152-37030iGDY231,281,TRY230..(T2,T4)..CBU202108

66153DLATCH, SIDE GATE, REAR RH

main66153-26010iGDY231,281,TRY230..TS202108

main66153-37010iGDY231,281,TRY230..(T2,T4)..CBU202108

66154DLATCH, SIDE GATE, REAR LH

main66154-26010iGDY231,281,TRY230..TS202108

main66154-37010iGDY231,281,TRY230..(T2,T4)..CBU202108

66187ALATCH, SIDE GATE SUPPORT

main66187-25020iGDY231,281,TRY230..(T2,T4)..CBU202108

66188LATCH, SIDE GATE, NO.1

main66187-25030iGDY231,281,TRY230..(T2,T4)..CBU202108

66243BPROTECTOR, REAR BODY, NO.1

main66243-37060iGDY231,281,TRY230..DCB..(T2,T4)..CBU202108

66243HPROTECTOR, REAR BODY, NO.1

main66243-37060iGDY231,281,TRY230..DCB..(T2,T4)..CBU202108

9014880077

main90148-80077

9014880078

main90148-80078

9046708008

main90467-08008

9356015010

main93560-15010

20 parts on this diagram · 6 diagrams in section
