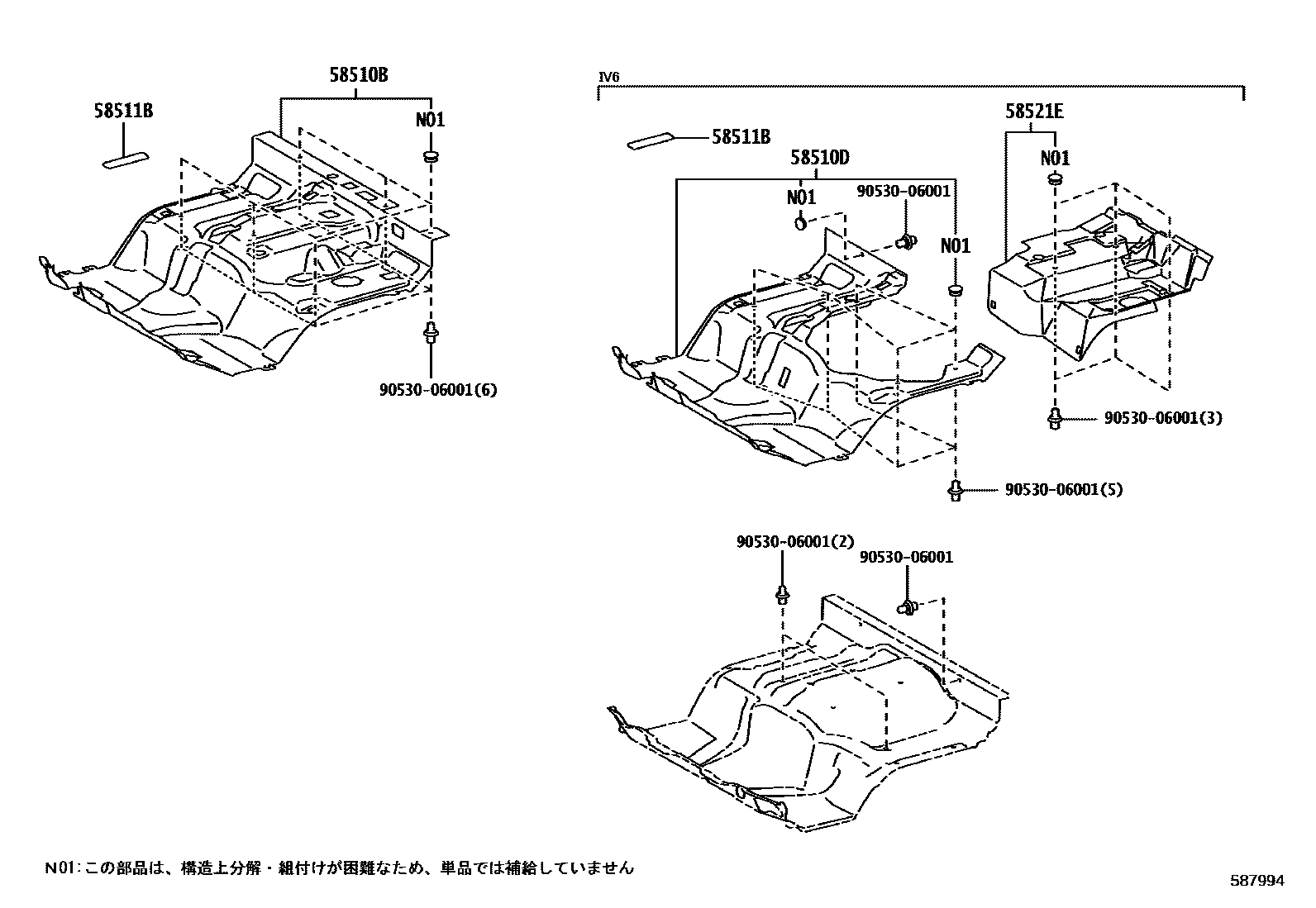

FLOOR MAT & SILENCER PAD

0001 1 0002 1

58510BMAT, FRONT FLOOR, FRONT

main58510-25A00-B0iTRY230..10T202108

GRAY,TRIM1#

58510DCARPET ASSY, FLOOR, FRONT

main58510-25880-B0iGDY231,281,TRY230..IV6202108-202112

GRAY,TRIM1#

main58510-25881-B0iGDY231,281..IV6202201-202509

GRAY,TRIM1#

main58510-25870-B0iGDY231,281,TRY230..SCB..(CBU,IV3)202108-202112

main58510-25871-B0iGDY231,281..SCB..(CBU,IV3)202201-202509

58511BMAT, FLOOR, FRONT SIDE

main58515-37080-C0iTRY230202108

BLACK,TRIM1#

58521ECARPET, ENGINE SERVICE HOLE COVER

main58521-25210-B0iGDY231,281..IV6202108-202509

GRAY,TRIM1#

9053006001

main90530-06001

5 parts on this diagram · 2 diagrams in section
