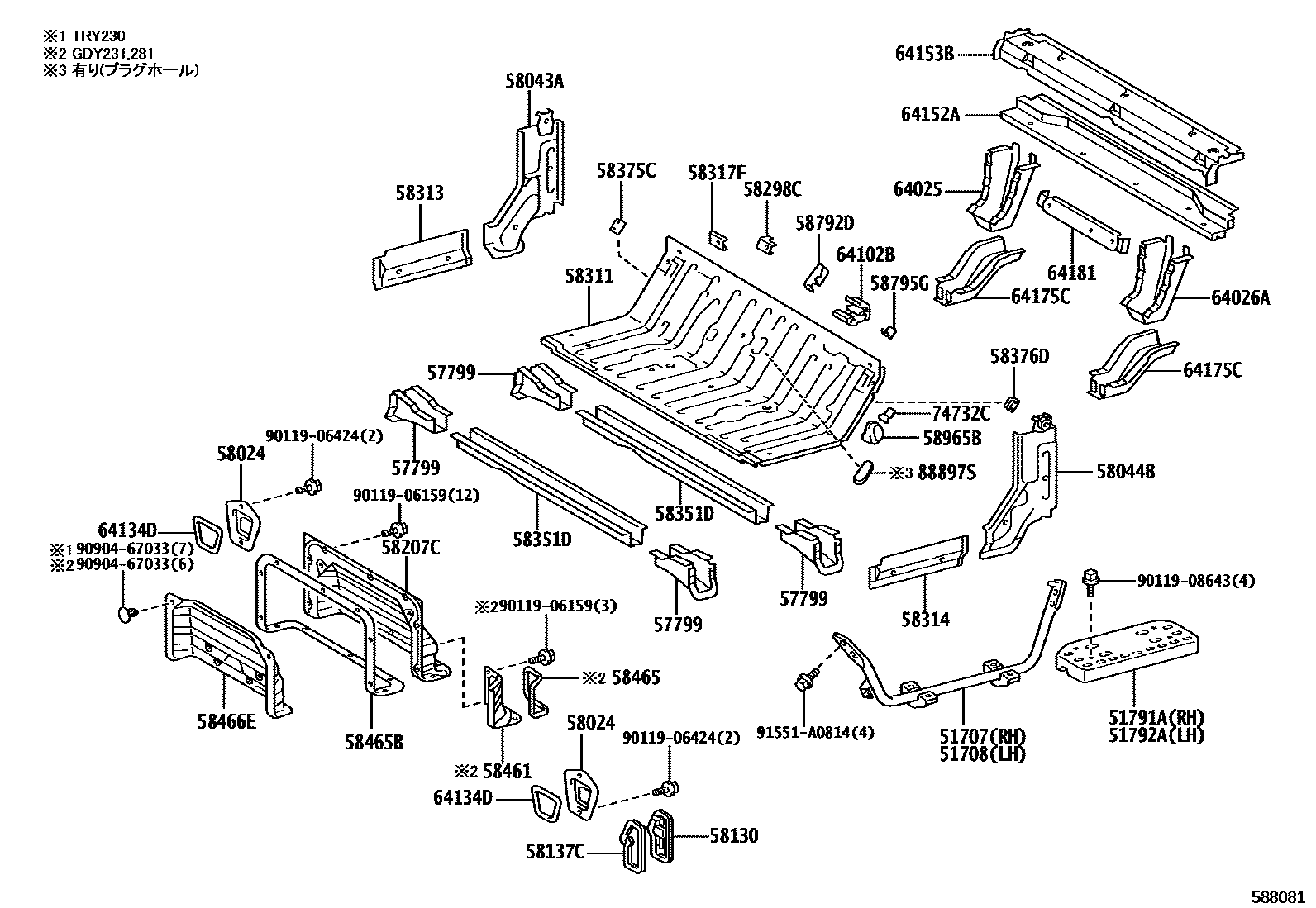

REAR FLOOR PANEL & REAR FLOOR MEMBER
51707STEP SUB-ASSY, RH
51708STEP SUB-ASSY, LH
51791APANEL, STEP, REAR RH
51792APANEL, STEP, REAR LH
57799GUSSET, REAR FLOOR CROSSMEMBER
58024COVER, HEADER PANEL
58043APANEL SUB-ASSY, FLOOR SIDE, REAR RH
58044BPANEL SUB-ASSY, FLOOR SIDE, REAR LH
58130COVER ASSY, RESERVE TANK SERVICE HOLE
58137CSEAL, RESERVE TANK SERVICE HOLE COVER
58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE
58298CREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58317FRETAINER, REAR SEAT ANCHOR, NO.2
58351DREINFORCEMENT, REAR FLOOR PANEL
58375CREINFORCEMENT, BODY LOWER BACK, RH
58376DREINFORCEMENT, BODY LOWER BACK, LH
58461COVER, TRANSMISSION SERVICE HOLE
58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1
58465BPACKING, TRANSMISSION SERVICE HOLE COVER
58466ESILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1
58792DSUPPORT, JACK
58795GPLATE, JACK CLAMP
58965BHOLDER, JACK
64025BRACKET SUB-ASSY, REAR MOUNTING, RH
64026ABRACKET SUB-ASSY, REAR MOUNTING, LH
64102BBRACKET SUB-ASSY, JACK HANDLE SUPPORT
64134DPACKING, HEADER PANEL COVER
64152AFRAME, BACK, LOWER
64153BFRAME, BACK, REAR
64175CBRACE, REAR MOUNTING BRACKET
64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR
74732CBRACKET, TOOL BAG SET BAND
88897SGROMMET, COOLER
9011906159
main90119-06159
9011906424
main90119-06424
9011908643
main90119-08643
9090467033
main90904-67033
91551A0814
main91551-A0814
41 parts on this diagram · 1 diagram in section
