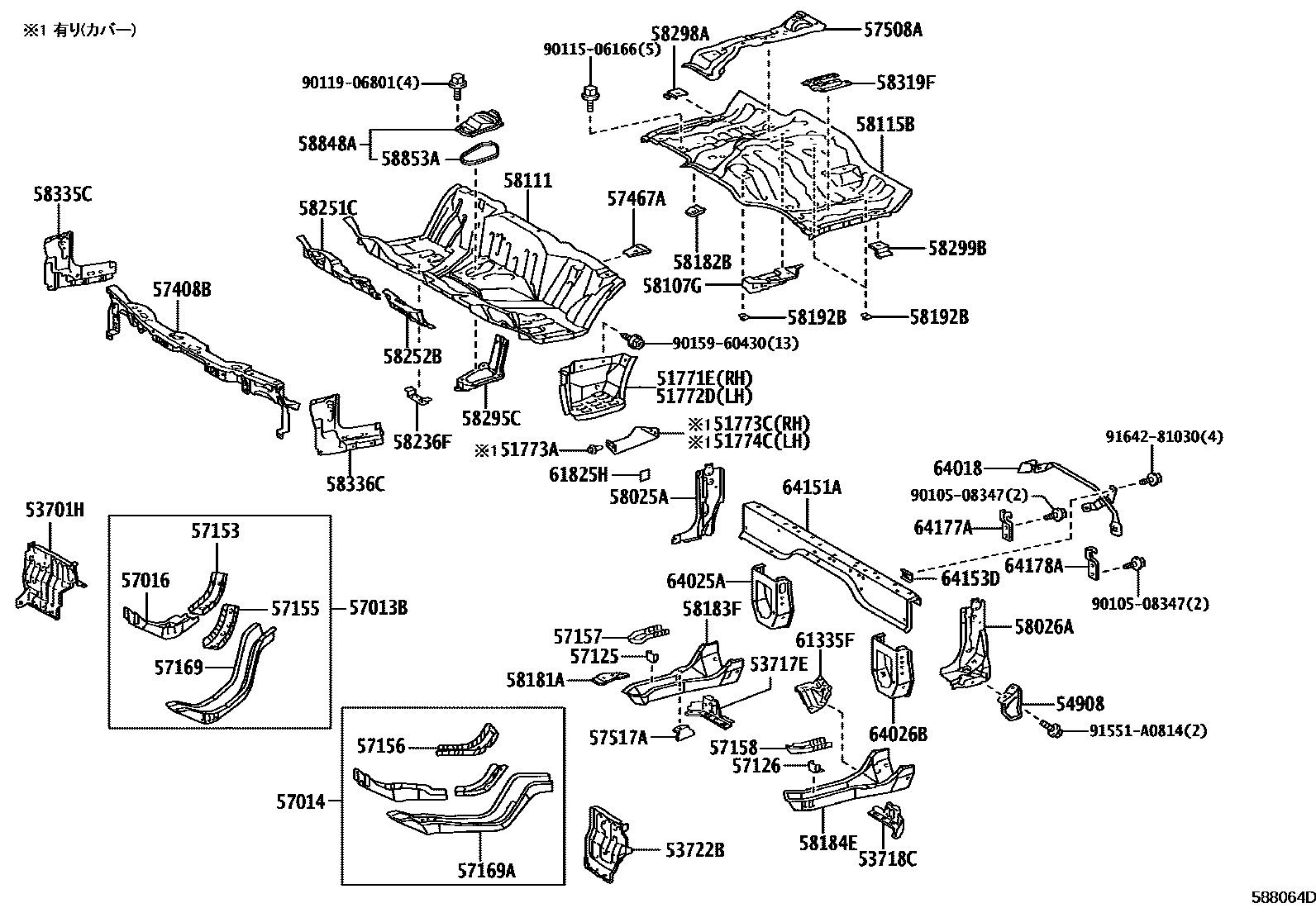

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1������ & �������� 0002 1������ & �������� 0003 1������ & �������� 0004 1��������� & ���������� 0005 1��������� & ����������

51771EPLATE, STEP, RH

main51771-25021iTRY230202108-202509

51772DPLATE, STEP, LH

main51772-37131iGDY231,281202108-202509

51773ACLIP, STEP PLATE COVER

main90467-06133-C0iGDY231,281202108-202509

sub90467-06133

51773CCOVER, STEP PLATE, RH

main51773-37020iTRY230202108-202509

51774CCOVER, STEP PLATE, LH

main51774-37010iGDY231,281202108-202509

53701HAPRON SUB-ASSY, FRONT FENDER, RH

main53701-37090iGDY231,281202108-202509

53717EAPRON, FRONT FENDER, NO.2 RH

main53717-25050iGDY231,281..SCB202108-202509

main53717-37150iGDY231,281..DCB202108-202509

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37110iTRY230..125T202108-202509

main53718-37120iGDY231,281..DCB202108-202509

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37032iGDY231,281202108-202509

54908BRACKET SUB-ASSY, TILT CAB GRIP

main54908-37010iGDY231,281..SCB..(CBU,IV3)202108-202509

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-37240iGDY231,281202108-202509

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-37070iGDY231,281202108-202509

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-37030iGDY231,281202108-202509

57125BRACKET, FRONT SIDE MEMBER, RH

main57125-37010iGDY231,281202108-202509

57126BRACKET, FRONT SIDE MEMBER, LH

main57126-37020iGDY231,281202108-202509

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-37010iGDY231,281202108-202509

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-37020iGDY231,281202108-202509

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-37021iGDY231,281202108-202509

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-37030iGDY231,281202108-202509

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-37030iGDY231,281202108-202509

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-37082iGDY231,281202108-202509

57169AMEMBER, FRONT FLOOR, FRONT LH

main57179-37071iGDY231,281202108-202509

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-25470iGDY231,281202108-202509

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-37011iGDY231,281..SCB..(CBU,IV3)202108-202509

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-25010iGDY231,281..SCB..(CBU,IV3)202108-202509

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-37011iGDY231,281202108-202509

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-25030iTRY230..10T202108-202509

main58043-25020iGDY231,281,TRY230..SCB202108-202203

main58043-25030iGDY231,281..SCB202203-202509

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-25020iGDY231,281..DCB202108-202509

main58044-37090iTRY230..125T202108-202509

58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE

main58107-25030iGDY231,281..SCB..(CBU,IV3)202108-202509

58111PAN, FRONT FLOOR

main58111-25430iGDY231,281..SCB..(CBU,IV3)202108-202509

main58111-25440iGDY231,281..IV6;GDY231,281..DCB202108-202509

58115BPANEL, FRONT FLOOR, REAR

main58115-25050iGDY231,281..SCB..(CBU,IV3)202108-202509

58181ARETAINER, SEAT RAIL, FRONT

main58181-37030iGDY231,281202108-202509

58182BRETAINER, SEAT RAIL, FRONT LH

main58182-37010iGDY231,281..SCB..(CBU,IV3)202108-202509

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-37063iTRY230..125T..(CBU,IV3)202108-202509

main58183-37072iTRY230..IV6;TRY230..10T202108-202509

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-25061iGDY231,281..IV6;GDY231,281..DCB202108-202509

main58184-37075iGDY231,281..SCB..(CBU,IV3)202108-202509

58192BPLATE, FRONT FLOOR, REAR

main58192-37020iGDY231,281..SCB..(CBU,IV3)202108-202509

58236FBRACKET, CLUTCH TUBE

main58236-95J01iTRY230202108-202509

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-37032iTRY230202108-202509

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37031iGDY231,281202108-202509

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-25030iGDY231,281202108-202509

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37010iTRY230..125T202108-202509

main58298-37020iGDY231,281..DCB202108-202509

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58298-37010iGDY231,281..SCB202108-202509

main58298-37020iGDY231,281..DCB202108-202509

58319FBRACKET, REAR FLOOR SIDE PANEL

main58319-37110iTRY230..125T..(CBU,IV3)202108-202509

main58319-37120iGDY231,281..IV6;GDY231,281..DCB202108-202509

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37080iGDY231,281202108-202509

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37032iGDY231,281202108-202509

58848ACOVER, SHIFT LEVER HOLE

main58840-37010iGDY231,281202108-202509

58853APACKING, SHIFT LEVER HOLE

main58853-37020iTRY230202108-202509

61335FRETAINER, SEAT BELT ANCHOR

main61335-25020iGDY231,281..SCB..(CBU,IV3)202108-202509

61825HPAD, NOISE SHUTTER, NO.2

main61825-34010iGDY231,281..SCB202203-202509

64018BAR SUB-ASSY, BODY

main64018-25060iGDY231,281..SCB..(CBU,IV3)202108-202509

main64018-25070iGDY231,281..IV6;GDY231,281..DCB202108-202509

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-37100iGDY231,281..IV6;GDY231,281..DCB202108-202509

main64171-37013iGDY231,281..SCB..(CBU,IV3)202108-202509

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64026-37130iGDY231,281..IV6;GDY231,281..DCB202108-202509

main64172-37023iTRY230..125T..(CBU,IV3)202108-202509

64151AFRAME, BACK

main64151-25123iGDY231,281,TRY230..IV6202108-202505

main64151-25150iTRY230..125T..(CBU,IV3)202108-202509

main64151-37303iGDY231,281,TRY230..DCB202108-202505

main64151-37323iGDY231,281,TRY230..DCB202108-202305

main64151-37323iGDY231,281,TRY230..DCB202108-202505

64153DREINFORCEMENT, BACK FRAME

main52123-32040iGDY231,281..SCB..(CBU,IV3)202108-202509

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-25010iGDY231,281..SCB..(CBU,IV3)202108-202509

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-25010iGDY231,281..SCB..(CBU,IV3)202108-202509

9010508347

main90105-08347

9011506166

main90115-06166

9011906801

main90119-06801

9015960430

main90159-60430

91551A0814

main91551-A0814

9164281030

main91642-81030

62 parts on this diagram · 5 diagrams in section
