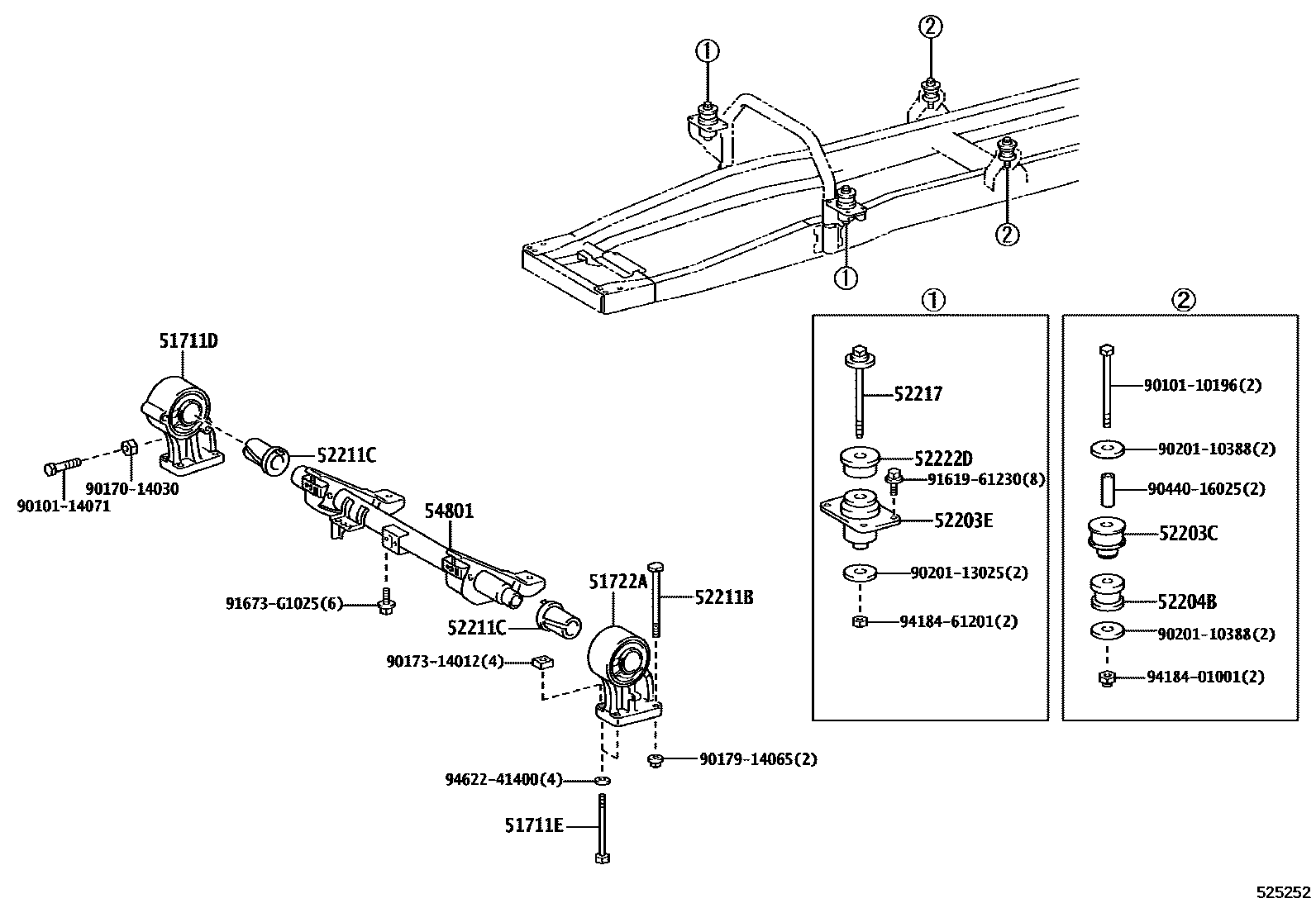

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1

51711DBRACKET, CAB FRONT MOUNTING

main51701-37360iTRY230202108-202509

51711EBOLT, HEXAGON(FOR CAB MOUNTING BARACKET)

main90101-14079iGDY231,281202108-202509

51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37050iTRY230..IV6;TRY230..10T202108-202509

main51702-37100iGDY231,281..SCB..(CBU,IV3)202108-202509

52203CCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-36040iGDY231,281..DCB202108-202509

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-37050iTRY230..IV6;TRY230..10T202108-202509

main52203-37090iGDY231,281..SCB..(CBU,IV3)202108-202509

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-36011iGDY231,281..DCB202108-202509

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90109-14013iGDY231,281202108-202509

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37010iGDY231,281202108-202509

52217BOLT, BODY MOUNTING

main52217-37030iGDY231,281..IV6;GDY231,281..DCB202108-202509

52222DSPACER, CAB REAR MOUNTING, UPPER

main52222-36030iGDY231,281..IV6;GDY231,281..DCB202108-202509

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-25130iGDY231,281..SCB..(CBU,IV3)202108-202509

main54801-25140iTRY230..IV6;TRY230..10T202108-202509

9010110196

main90101-10196

9010114071

main90101-14071

9017014030

main90170-14030

9017314012

main90173-14012

9017914065

main90179-14065

9020110388

main90201-10388

9020113025

main90201-13025

9044016025

main90440-16025

9161961230

main91619-61230

91673G1025

main91673-G1025

9418401001

main94184-01001

9418461201

main94184-61201

9462241400

main94622-41400

24 parts on this diagram · 3 diagrams in section
