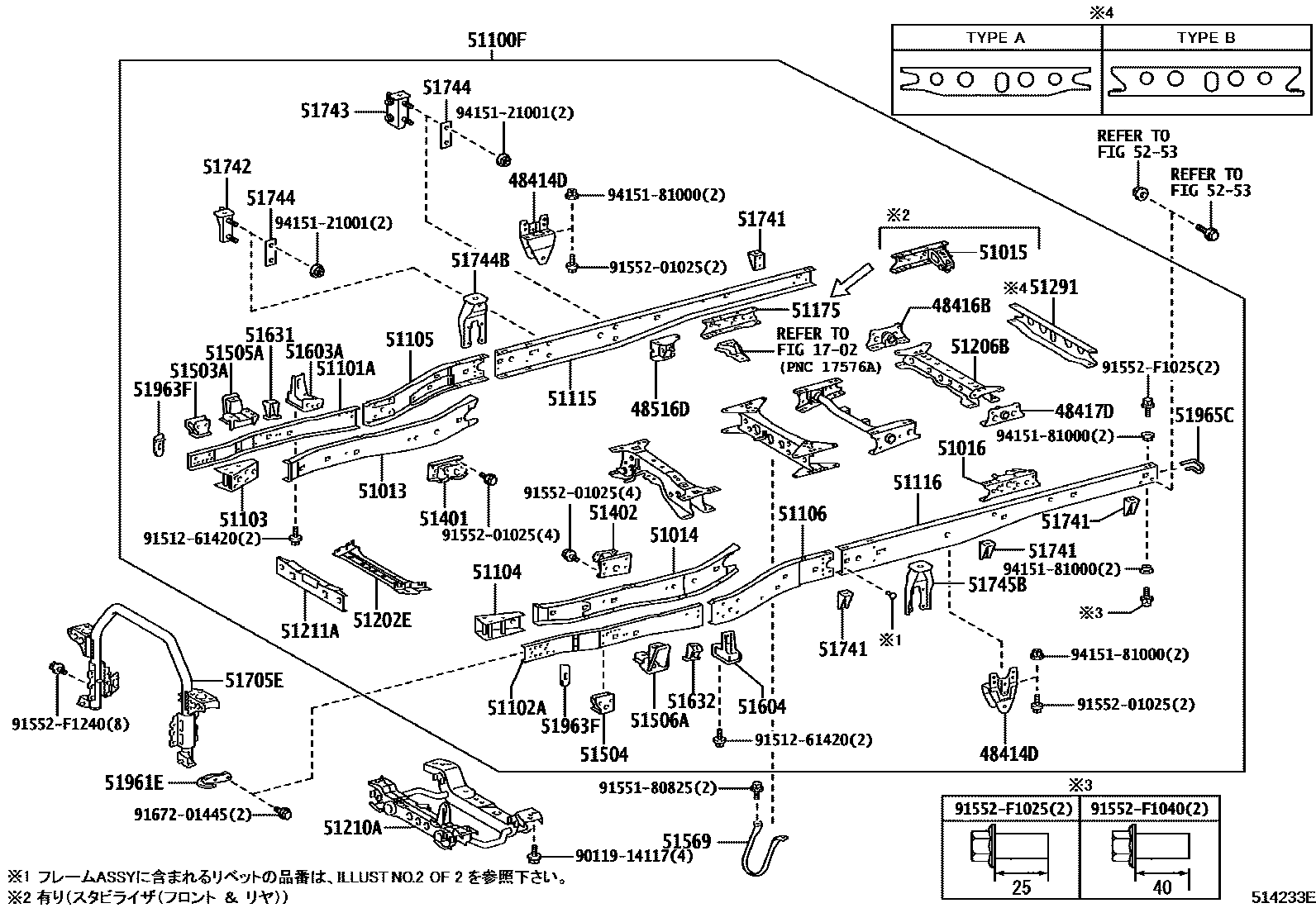

FRAME
1702
48414DBRACKET, SPRING, NO.3
48416BBRACKET, SPRING, NO.4 RH
48417DBRACKET, SPRING, NO.4 LH
48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
51013CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51014CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51015CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR RH, NO.1
main51015-25040
51016CHANNEL SUB-ASSY, SIDE RAIL, INNER REAR LH, NO.1
51100FFRAME SUB-ASSY
51101ARAIL SUB-ASSY, FRONT FRAME SIDE, RH
51102ARAIL SUB-ASSY, FRONT FRAME SIDE, LH
51103REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT RH
51104REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT LH
51105RAIL SUB-ASSY, CENTER FRAME, RH
51106RAIL SUB-ASSY, CENTER FRAME, LH
51175REINFORCEMENT, SIDE RAIL, NO.3 RH
51202ECROSSMEMBER SUB-ASSY, FRAME, NO.2
51211ACROSSMEMBER, FRAME, FRONT
51291CROSSMEMBER, FRAME, REAR
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51505ASUPPORT SUB-ASSY, UPPER CONTROL ARM
51506ASUPPORT SUB-ASSY, UPPER CONTROL ARM, LH
51603ABRACKET SUB-ASSY, FRONT BOUND STOPPER, RH
51604BRACKET SUB-ASSY, FRONT BOUND STOPPER, LH
51631STOPPER, FRONT SUSPENSION REBOUND, RH
51632STOPPER, FRONT SUSPENSION REBOUND, LH
51705EBRACKET SUB-ASSY, CAB REAR MOUNTING
51741BRACKET, REAR BODY MOUNTING, NO.1
51742BRACKET, BODY MOUNTING, NO.2
51743BRACKET, BODY MOUNTING, NO.3
51744BRACKET, BODY MOUNTING, NO.4
51744BBRACKET, REAR BODY MOUNTING, NO.3 RH
51745BBRACKET, REAR BODY MOUNTING, NO.3 LH
51961EHOOK, FRONT
51963FHOOK, TRANSPORT
51965CHOOK, REAR
5253
9011914117
main90119-14117
9151261420
main91512-61420
9155180825
main91551-80825
9155201025
main91552-01025
91552F1025
main91552-F1025
91552F1040
main91552-F1040
91552F1240
main91552-F1240
9167201445
main91672-01445
9415121001
main94151-21001
9415181000
main94151-81000
56 parts on this diagram · 5 diagrams in section
