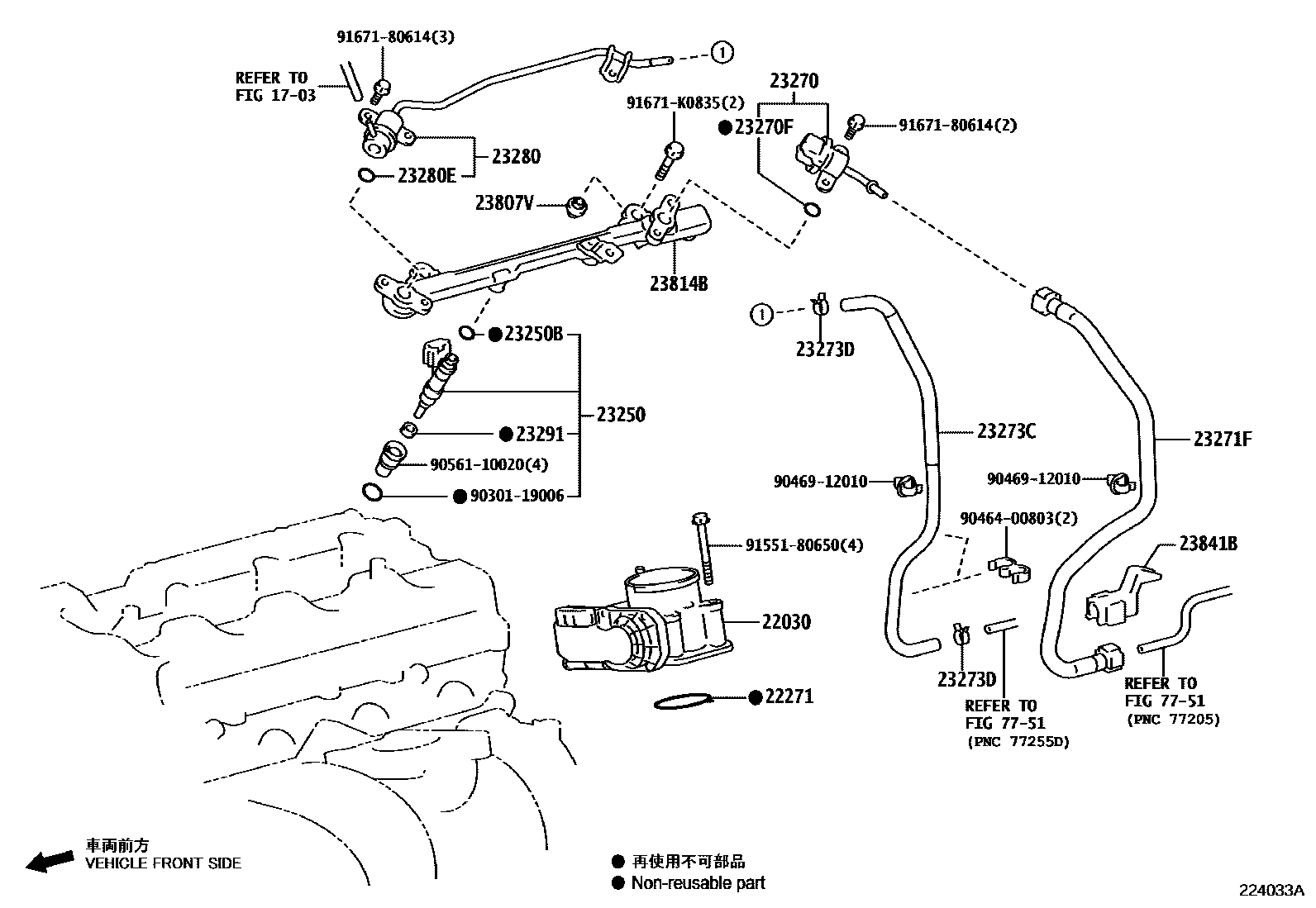

FUEL INJECTION SYSTEM

1703

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C050i1TRFE..TRY230202108

22271GASKET, THROTTLE BODY

main22271-37010i1TRFE..TRY230202108

23250INJECTOR ASSY, FUEL

main23209-79225i1TRFE..TRY230202108

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042i1TRFE..TRY230202108

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75050i1TRFE..TRY230202108

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1TRFE..TRY230202108

23271FHOSE, FUEL

main23271-11470i1TRFE..TRY230202108

23273CHOSE, FUEL, NO.2

main23273-11120i1TRFE..TRY230202108

23273DCLIP(FOR FUEL HOSE NO.2)

main96132-51100i1TRFE..TRY230202108

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75150i1TRFE..TRY230202108

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i1TRFE..TRY230202108

23291INSULATOR, INJECTOR VIBRATION

main23291-73010i1TRFE..TRY230202108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-75020i1TRFE..TRY230202108

23814BPIPE, FUEL DELIVERY

main23814-75110i1TRFE..TRY230202108

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1TRFE..TRY230202108

7751

9030119006

main90301-19006

9046400803

main90464-00803

9046912010

main90469-12010

9056110020

main90561-10020

9155180650

main91551-80650

9167180614

main91671-80614

91671K0835

main91671-K0835

24 parts on this diagram · 1 diagram in section
