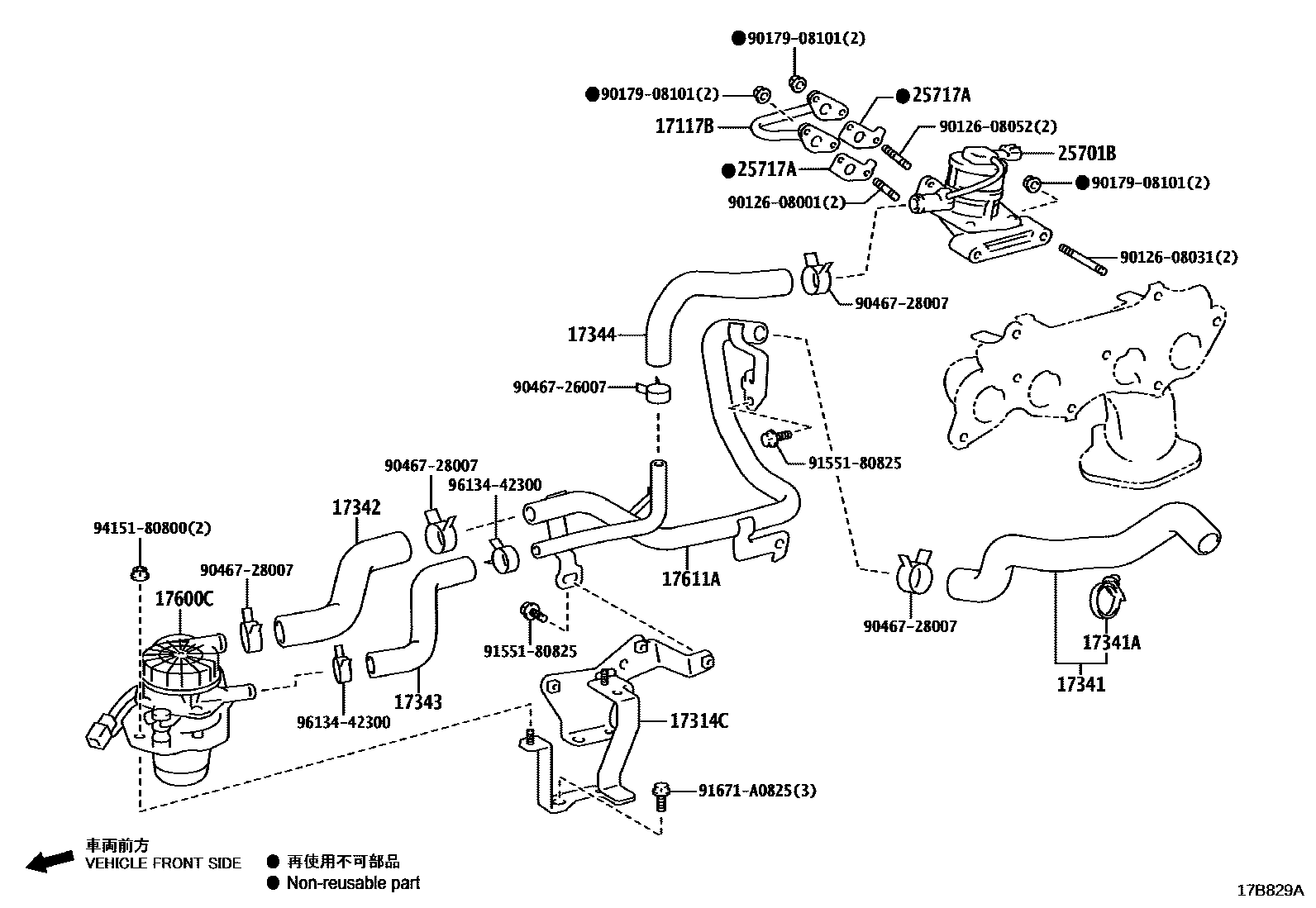

MANIFOLD AIR INJECTION SYSTEM

17117BPIPE, INTAKE, NO.4

main17117-75011i1TRFE..TRY230202108

17314CBRACKET, AIR PUMP

main17316-75020i1TRFE..TRY230202108

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-75200i1TRFE..TRY230202108-202110

main17341-75201i1TRFE..TRY230202111

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main82711-E0700i1TRFE..TRY230202108

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-75040i1TRFE..TRY230202108

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-75030i1TRFE..TRY230202108

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-75010i1TRFE..TRY230202108

17600CPUMP ASSY, AIR

main17600-11080i1TRFE..TRY230202108

17611APIPE, AIR PUMP INLET

main17611-75030i1TRFE..TRY230202108-202110

main17611-75031i1TRFE..TRY230202111

25701BVALVE SET, EMISSION CONTROL, NO.1

main25701-75050i1TRFE..TRY230202108

25717AGASKET, AIR SWITCHING VALVE

main25717-75010i1TRFE..TRY230202108

9012608001

main90126-08001

9012608031

main90126-08031

9012608052

main90126-08052

9017908101

main90179-08101

9046726007

main90467-26007

9046728007

main90467-28007

9155180825

main91551-80825

91671A0825

main91671-A0825

9415180800

main94151-80800

9613442300

main96134-42300

21 parts on this diagram · 1 diagram in section
