MANIFOLD
1201
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
15407BGASKET(FOR TURBO OIL INLET PIPE)
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
15474PIPE, TURBO OIL OUTLET
15474AHOSE, TURBO OIL OUTLET
15474BCLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
1702
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
17271INSULATOR, TURBO, NO.1
17275ELBOW, COMPRESSOR OUTLET
17276GASKET, COMPRESSOR INLET
17277GASKET, COMPRESSOR OUTLET
17278GASKET, TURBO TO EXHAUST MANIFOLD
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
17293CNUT(FOR TURBOCHARGER STAY)
17298STAY, COMPRESSOR ELBOW
17452BCLAMP, EXHAUST PIPE
17568ASTAY, EXHAUST PIPE SUPPORT
17569DSTAY, EXHAUST PIPE SUPPORT, NO.2
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25621ACOVER
9010508359
main90105-08359
9012608052
main90126-08052
9012610033
main90126-10033
9017910070
main90179-10070
9017910167
main90179-10167
9155180820
main91551-80820
9167180616
main91671-80616
9167180825
main91671-80825
9167281025
main91672-81025
9415180600
main94151-80600
9415180800
main94151-80800
9418800841
main94188-00841

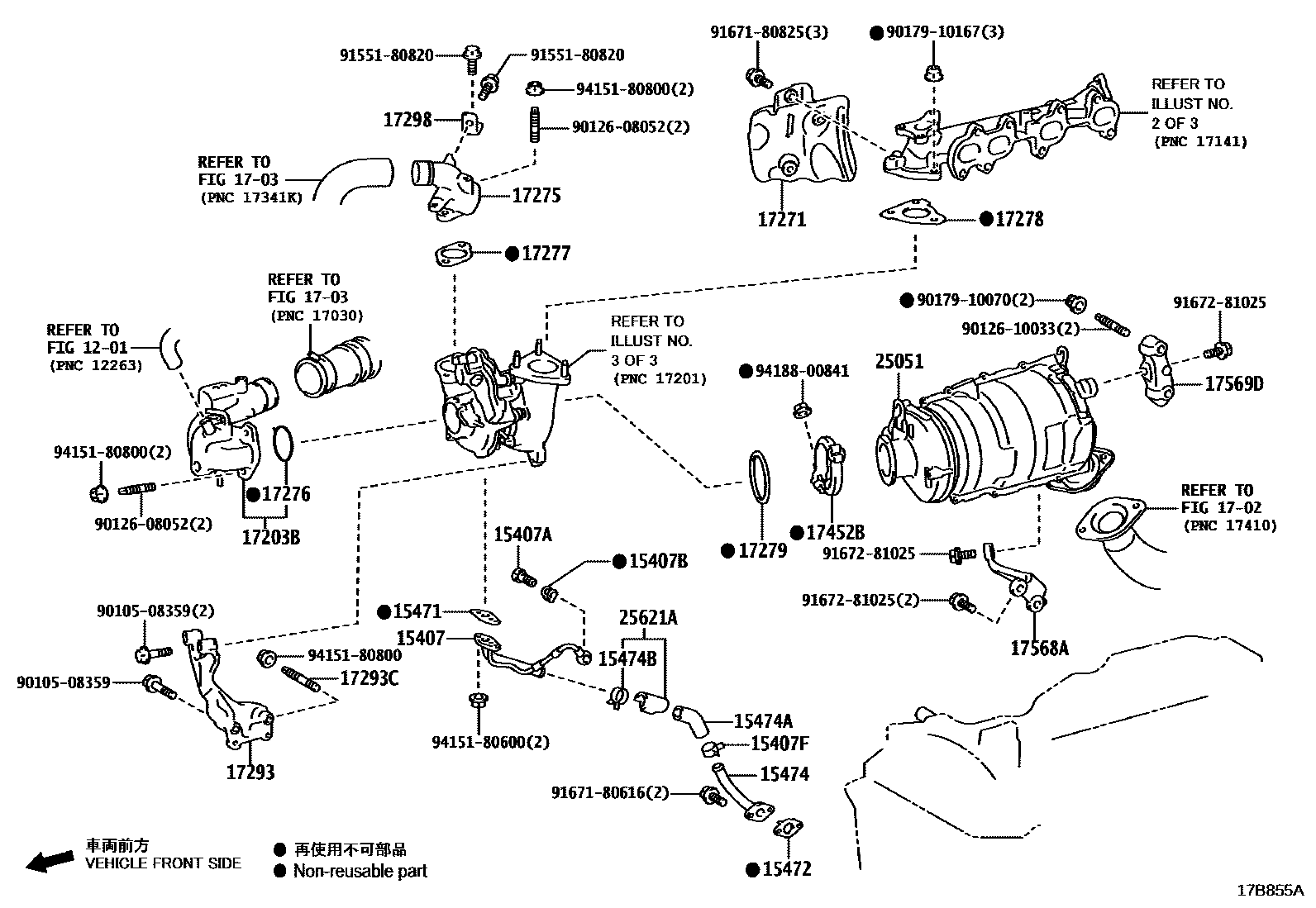

39 parts on this diagram · 4 diagrams in section
