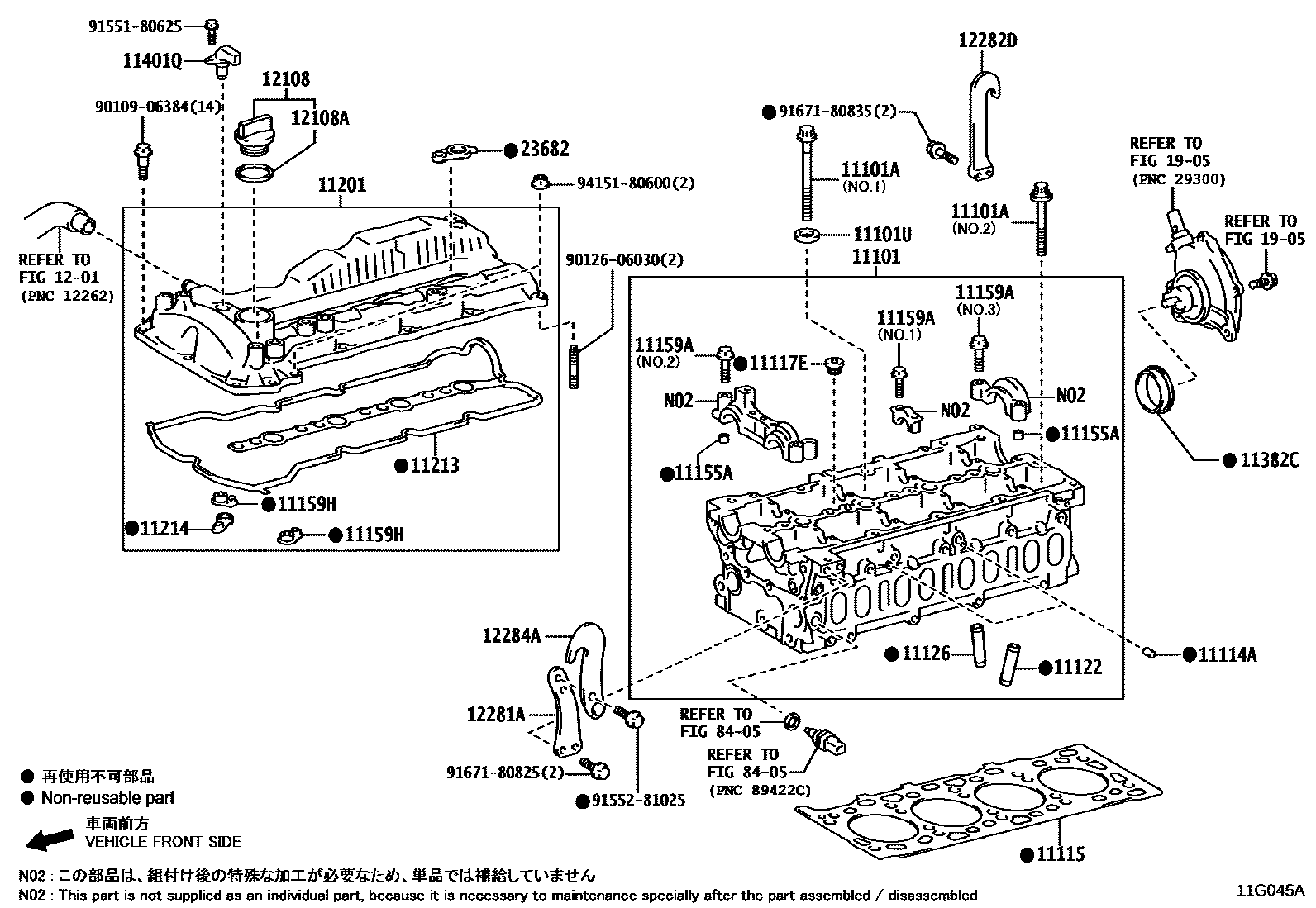

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101USPACER(FOR CYLINDER HEAD SET BOLT)
11114APIN, STRAIGHT
11115GASKET, CYLINDER HEAD
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11382CRETAINER, CAMSHAFT OIL SEAL
11401QSENSOR, CRANK POSITION
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
12284AHANGER, ENGINE, NO.1 UPPER
1905
23682GASKET, NOZZLE HOLDER
8405
9010906384
main90109-06384
9012606030
main90126-06030
9155180625
main91551-80625
9155281025
main91552-81025
9167180825
main91671-80825
9167180835
main91671-80835
9415180600
main94151-80600
32 parts on this diagram · 2 diagrams in section
