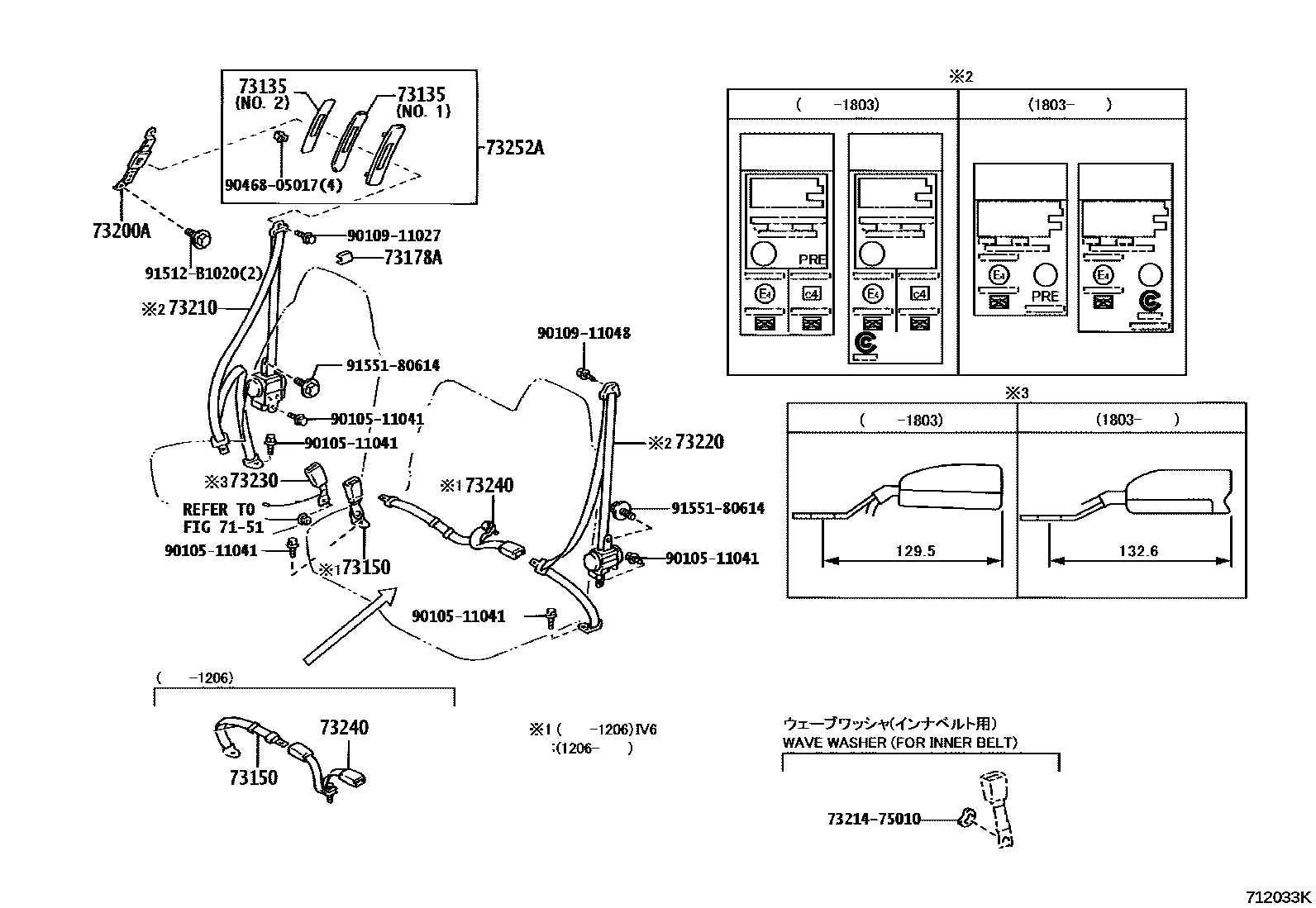

SEAT BELT

0001 1���� 0002 1���� 0003 1�� 0004 1��

7151

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-35010-B1iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

main73135-35010-B2iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1)..(CBU,IV3)201610

main73135-35020-B1iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

main73135-35020-B2iTRY230..WT..IV6;TRY230..TS..125T..WT;KDY221,231,241,271,281,TRY231,281201505

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-37030-B1iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-201206

DK.CHARCOAL,TRIM1#

main73150-37050-B0iKDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,TRY220,230..TW1,TW2,TW3,TW4,VAN200107-201505

DK.CHARCOAL,TRIM1#

main73150-37050-B3iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4201505-201803

GRAY,TRIM1#

main73150-37160-B0iKDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY241,271,281,TRY220,23#,281201803

GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12040-B4iLY220,230,240,270,280,290,RZY220,230200107-200308

MD.CHARCOAL,TRIM1#

main73178-33020-B1iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200308-201505

MD.CHARCOAL,TRIM1#

main73178-33020-P2iKDY221,231,241,271,281,TRY220,23#,281201505

GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-34030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-37110-B0iLY220,230,240,270,280,290,RZY220,230200107-200308

GRAY,TRIM1#

main73210-37120-B0iLY220,230,240,270,280,290,RZY220,230200107-200308

main73210-37190-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200308-200908

GRAY,TRIM1#

main73210-37190-B1iKDY221,231,241,271,281,TRY220,23#,281200908-201206

GRAY,TRIM1#

main73210-37200-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200308-200908

main73210-37200-B1iKDY221,231,241,271,281,TRY220,23#,281200908-201206

main73210-37290-B2iKDY221,231,241,271,281,TRY220,23#,281201206-201302

sub73210-37400

main73210-37291-B1iKDY221,231,241,271,281,TRY220,23#,281201610-201803

main73210-37291-B2iKDY221,231,241,271,281,TRY220,23#,281201303-201505

main73210-37291-B3iKDY221,231,241,271,281,TRY220,23#,281201505-201610

main73210-37320-B2iKDY221,231,241,271,281,TRY220,23#,281201206-201504

GRAY,TRIM1#

sub73210-37430

main73210-37431-B0iKDY221,231,241,271,281,TRY220,23#,281201610-201803

GRAY,TRIM1#

main73210-37431-B1iKDY221,231,241,271,281,TRY220,23#,281201505-201610

GRAY,TRIM1#

main73210-37520-B0iKDY221,231,241,271,281,TRY220,23#,281201803

main73210-37540-B0iKDY221,231,241,271,281,TRY220,23#,281201803

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-37130-B0iLY220,230,240,270,280,290,RZY220,230200107-200308

GRAY,TRIM1#

main73210-37140-B0iLY220,230,240,270,280,290,RZY220,230200107-200308

main73210-37210-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200308-200908

GRAY,TRIM1#

main73210-37210-B1iKDY221,231,241,271,281,TRY220,23#,281200908-201206

GRAY,TRIM1#

main73210-37220-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200308-200908

main73210-37220-B1iKDY221,231,241,271,281,TRY220,23#,281200908-201206

main73210-37300-B2iKDY221,231,241,271,281,TRY220,23#,281201206-201504

GRAY,TRIM1#

sub73210-37410

main73210-37310-B2iKDY221,231,241,271,281,TRY220,23#,281201206-201302

sub73210-37420

main73210-37311-B1iKDY221,231,241,271,281,TRY220,23#,281201610-201803

main73210-37311-B2iKDY221,231,241,271,281,TRY220,23#,281201303-201505

main73210-37311-B3iKDY221,231,241,271,281,TRY220,23#,281201505-201610

main73210-37411-B0iKDY221,231,241,271,281,TRY220,23#,281201610-201803

GRAY,TRIM1#

main73210-37411-B1iKDY221,231,241,271,281,TRY220,23#,281201505-201610

GRAY,TRIM1#

main73210-37530-B0iKDY221,231,241,271,281,TRY220,23#,281201803

GRAY,TRIM1#

main73210-37550-B0iKDY221,231,241,271,281,TRY220,23#,281201803

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-37090-B0iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200708

DK.CHARCOAL,TRIM1#

main73230-37230-B0iKDY221,231,241,271,281,TRY220,23#,281200708-201505

main73230-37230-B1iKDY221,231,241,271,281,TRY220,23#,281201505-201803

main73230-37470-B0iKDY221,231,241,271,281,TRY220,23#,281201803

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-37140-B0iKDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,TRY220,230..TW1,TW2,TW3,TW4,VAN200107-200901

GRAY,TRIM1#

main73230-37141-B1iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN200902-200908

GRAY,TRIM1#

main73230-37141-B2iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN200908-201206

GRAY,TRIM1#

main73230-37150-B0iKDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,TRY220,230..TW1,TW2,TW3,TW4,VAN200107-200901

main73230-37151-B1iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN200902-200908

main73230-37151-B2iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN200908-201206

main73230-37330-B0iKDY231,281,TRY230..IV6;KDY231,241,271,281,TRY230..TW1,TW2,TW3,TW4,VAN201610-201803

main73230-37330-B1iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN201206-201505

main73230-37330-B2iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN201505-201610

main73230-37340-B1iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4201206-201504

GRAY,TRIM1#

sub73230-37360

main73230-37361-B0iKDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY241,271,281,TRY220,23#,281201610-201803

GRAY,TRIM1#

main73230-37361-B1iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4201505-201610

GRAY,TRIM1#

main73230-37420-B0iKDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY241,271,281,TRY220,23#,281201803

GRAY,TRIM1#

main73230-37430-B0iKDY231,281,TRY230..IV6;KDY231,241,271,281,TRY230..TW1,TW2,TW3,TW4,VAN201803

main73240-25040-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201206-201505

main73240-25040-B1iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201505-201610

main73240-25040-B2iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201610-201803

main73240-25060-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201803

main73240-25070-B0iKDY221,231..T4..TS201206-201505

GRAY,TRIM1#

main73240-25070-B2iKDY221,231..T4..TS201505-201610

GRAY,TRIM1#

main73240-25070-B3iKDY221,231..T4..TS201610-201803

GRAY,TRIM1#

main73240-25080-B0iKDY221,231..T4..TS201206-201505

main73240-25080-B1iKDY221,231..T4..TS201505-201610

main73240-25080-B2iKDY221,231..T4..TS201610-201803

main73240-25090-B0iKDY221,231..T4..TS201803

GRAY,TRIM1#

main73240-25100-B0iKDY221,231..T4..TS201803

main73240-37160-B1iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-200901

GRAY,TRIM1#

main73240-37161-B1iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200902-200908

GRAY,TRIM1#

main73240-37161-B4iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200908-201206

GRAY,TRIM1#

main73240-37170-B0iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-200901

main73240-37171-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200902-200908

main73240-37171-B2iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200908-201206

main73240-37180-B3iKDY221,23#..T4..TS200605-200908

DK.CHARCOAL,TRIM1#

main73240-37180-B4iKDY221,231..T4..TS200908-201206

GRAY,TRIM1#

main73240-37190-B2iKDY221,23#..T4..TS200605-200908

main73240-37190-B3iKDY221,231..T4..TS200908-201206

73252ACOVER, SHOULDER BELT ANCHOR ADJUST

main73252-37010-B0iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-200909

MD.CHARCOAL,TRIM1#

main73252-37011-B0iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4200909-201505

MD.CHARCOAL,TRIM1#

main73252-37011-B1iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4201505

GRAY,TRIM1#

main73252-37020-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN200107-200910

MD.CHARCOAL,TRIM1#

main73252-37021-B0iKDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN200910-201505

MD.CHARCOAL,TRIM1#

main73252-37021-B1iKDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN201505

GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511041

main90105-11041

9010911027

main90109-11027

9010911048

main90109-11048

9046805017

main90468-05017

91512B1020

main91512-B1020

9155180614

main91551-80614

17 parts on this diagram · 4 diagrams in section
