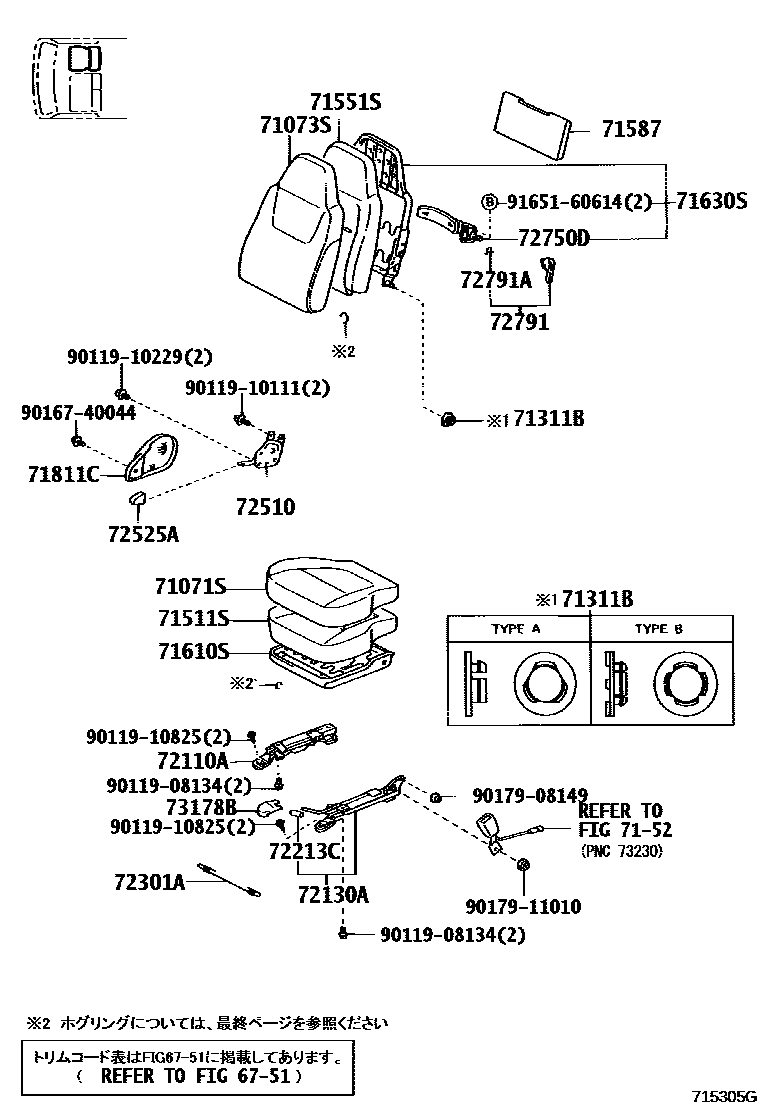

SEAT & SEAT TRACK

0001 1������ 0002 1������,��(���������������)E-P0003 1������,��(���������������),E-0004 1������� (���� ����),E-PKG 0005 1������� (����-� ����) 0006 1������� (����-� ����, ��(����0007 1�������(������) 0008 1�������(������),�������(����)0009 1*PAS(���),�������(������),E-P0010 1�������(������),��������,E-PK0011 1�� - ��������� 0012 1�� ����� �-� 0013 1����� 0014 1�������

6751

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-25070-B0iLY220,230,240,270,280,290,RZY220,230200107-200308

main71071-25080-B0iLY220,230,270,280,RZY220,230..T2,T3,T4200107-200308

main71071-25110-B0iLY220,230,240,270,280,290,RZY231,281,TRY220,230200308-200408

main71071-25120-B0iLY220,230,270,280,RZY231,281,TRY220,230..T2,T3,T4200308-200408

main71071-25150-B1iKDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,RZY231,281,TRY220,230200408-200708

main71071-25160-B1iKDY230..T2,T3;KDY230..T4..TB;KDY220,270,280,RZY231,281,TRY220,230..T2,T3,T4200408-200708

main71071-37550-B4iLY220,230,240,270,280,290,RZY220,230..CBU,IV3200107-200308

main71071-37600-B1iKDY221,231,271,281,TRY220,23#,281..CBU,IV3200708-201206

main71071-37630-B0iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4200708-201206

main71071-37630-B1iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4201206-201505

main71071-37680-B0iLY240,290200308-200312

main71071-37760-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200708-201206

main71071-37760-B1iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201206-201505

main71071-37770-B1iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200708-201505

main71071-37810-B0iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4200708-201206

main71071-37810-B2iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4201206-201505

main71071-37830-B0iKDY241200709-201206

main71071-37830-B1iKDY241201206-201505

main71071-37850-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201505-201610

main71071-37850-B1iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3)201610

main71071-37860-B0iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4201505-201610

main71071-37860-B1iKDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281201610

main71071-37870-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201505-201610

main71071-37870-B1iKDY221,231,271,281,TRY220,23#,281..CBU,IV3201610

main71071-37880-B0iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4201505-201610

main71071-37880-B1iKDY241201610

main71071-37890-B0iKDY221,231,241,271,281,TRY220,23#,281..CBU,IV3201505-201610

main71071-37890-B1iKDY241201610

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-37070-B0iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4200708-201206

main71027-37070-B1iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201206-201505

main71027-37080-B0iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4200708-201206

main71027-37080-B1iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201206-201505

main71027-37110-B0iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN200708-201206

main71027-37110-B1iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN201206-201505

main71027-37120-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200708-201206

main71027-37120-B1iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201206-201505

main71027-37130-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200708-201206

main71027-37130-B1iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201206-201505

main71027-37160-B0iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4200708-201206

main71027-37160-B2iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201206-201505

main71073-25140-B0iLY230,280..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);LY220,230,240,270,280,290,RZY220..TW1,TW2,TW3,TW4,VAN200107-200308

main71073-25150-B0iLY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)200107-200308

main71073-25160-B0iLY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)200107-200308

main71073-25170-B0iLY230,280,RZY230..IV6200107-200308

main71073-25190-B0iLY230,280,TRY230..IV6;LY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN200308-200408

main71073-25200-B0iLY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200308-200408

main71073-25210-B0iLY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200308-200408

main71073-25220-B0iLY230,280,TRY230..IV6200308-200408

main71073-25270-B1iKDY230,280,TRY230..IV6;KDY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN200408-200708

main71073-25280-B1iKDY230..T4..TB;KDY230..(T2,T3)..(CBU,IV3);KDY220,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200408-200708

main71073-25290-B1iKDY230..T4..TB;KDY230..(T2,T3)..(CBU,IV3);KDY220,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200408-200708

main71073-25300-B1iKDY230,280,TRY230..IV6200408-200708

main71073-25350-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200708-201206

main71073-25350-B1iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201206-201505

main71073-25400-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201505-201610

main71073-25410-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201505-201610

main71073-25420-B0iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201505-201610

main71073-25430-B0iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201505-201610

main71073-25440-B0iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN201505-201610

main71073-25450-B0iKDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN201505-201610

main71073-25460-B0iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201505-201610

main71073-25470-B0iKDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201505-201610

main71073-25480-B0iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4201505-201610

main71073-25500-B0iKDY241201610

main71073-25510-B0iKDY241201610

main71073-37620-B4iLY220,230,240,270,280,290,RZY220,230..TW1,TW2,TW3,TW4,VAN200107-200308

main71073-37630-B4iLY220,230,270,280,RZY220,230..(T2,T3,T4)..(CBU,IV3)200107-200308

main71073-37750-B0iKDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200708-201206

main71073-37750-B1iKDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201206-201505

main71073-37790-B0iLY240,290200308-200312

main71073-37820-B0iKDY220,230,270,280,LY220,230,270,280,RZY231,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200308-200708

main71073-37850-B0iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4200708-201206

main71073-37850-B1iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4201206-201505

main71073-37A10-B0iKDY241200709-201206

main71073-37A10-B1iKDY241201206-201505

main71073-37A20-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW2,TW4)..(CBU,IV3)201610

main71073-37A30-B0iKDY221,231..T4..TB;KDY221,231..T2,T3,TW2,TW4;KDY271,281,TRY220,23#,281201610

main71073-37A40-B0iKDY221,231,271,281,TRY220,23#,281..CBU,IV3201610

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12051iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230200308-200708

main90386-12053iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY231,281,TRY220,230200308-200708

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-37080iKDY221,231..T4..TS200107-201610

main71511-37130iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200708

7152

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-25050iKDY231,281,TRY230..ST..IV6201206

main71551-25060iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN201206-201610

main71551-37100iKDY221,231,271,281,TRY231,281..(T2,T3,T4)..(CBU,IV3)200708-201206

main71551-37110iKDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107-200708

main71551-37140iKDY231,281,TRY230..IV6;KDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN200708-201206

main71551-37160iKDY230..T4..TB;KDY230..(T2,T3)..(CBU,IV3);KDY220,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..(T2,T3,T4)..(CBU,IV3)200107-200708

main71551-37170iKDY230,280,LY230,280,RZY230,TRY230..IV6200107-200708

main71551-37210iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4200708-201610

main71551-37220iKDY221..T3;KDY231,TRY230..TS..125T..WT201610

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-37020iKDY221,231,241,271,281,TRY220,23#,281200708-201209

main71587-37021iKDY221,231,241,271,281,TRY220,23#,281201210-202106

main71587-37022iKDY221,231,241,271,281,TRY220,23#,281202107

main71587-37030iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200708

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-37010iKDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,24#,27#,28#,290,RZY231,281,TRY220,23#,281200504

main71610-37030iKDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-200504

main71610-37050iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200708-201505

main71610-37051iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201505

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-25040iKDY221,231,271,281,TRY220,23#,281201206-201610

main71630-25050iKDY231,TRY230..TB..125T;KDY271,281,TRY230..TW1,TW3201610

main71630-25060iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201206

main71630-25070iKDY241201206

main71630-37010iKDY22#,23#,27#,28#,RZY231,281,TRY220,23#,281200504-201206

main71630-37020iKDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,270,280,RZY231,281,TRY220,230..CBU,IV3200504-200708

main71630-37030iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,RZY231,281,TRY220,23#,281..T2,T3,T4200504-201206

main71630-37050iKDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230200107-200504

main71630-37060iKDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3200107-200504

main71630-37070iKDY240,290,LY240,290200107-200708

main71630-37090iKDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4200107-200504

main71630-37110iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200708-201206

main71630-37130iKDY241200709-201206

71811CCOVER, RECLINING ADJUSTER, RH

main71811-37010-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200908

MD.CHARCOAL,TRIM1#

main71811-37011-B0iKDY221,231,241,271,281,TRY220,23#,281200909-201505

MD.CHARCOAL,TRIM1#

main71811-37011-B1iKDY221,231..T4..TB;KDY241,271,281,TRY220,23#,281;KDY221,231..T2,T3,TW1,TW2,TW3,TW4201505

GRAY,TRIM1#

main71811-37020-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200708-200908

main71811-37021-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200909-201206

main71811-37022-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201206-201505

main71811-37022-B1iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201505

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

72213CKNOB, SEAT TRACK ADJUSTING HANDLE, LH

main72213-28030-D0iLY220,230,270,280..CBU,IV3200308-200408

ORANGE

main72213-95J00-B2iKDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4200107-201505

MD.CHARCOAL,TRIM1#

main72213-95J00-B5iKDY231,281,TRY230..IV6;KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201505

GRAY,TRIM1#

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-37030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-37020iKDY221,231..T4..TS200107-201610

main72510-37040iKDY24#,290,LY240,290200107

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-37010-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201505

MD.CHARCOAL,TRIM1#

main72525-37010-B1iKDY221,231..T4..TS201505-201610

GRAY,TRIM1#

main72525-37020-B0iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)200708-201505

main72525-37020-B1iKDY221,231..T4..TB;KDY271,281,TRY220,23#,281..CBU,IV3;KDY221,231..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3)201505

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-37030iKDY231,TRY230..TB..125T;KDY271,281,TRY230..TW1,TW3201610

72791LEVER, LUMBAR SUPPORT

main72791-12010-B9iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-201505

MD.CHARCOAL,TRIM1#

main72791-12010-P0iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY231,TRY230..TS..125T..WT;KDY271,281,TRY220,23#,281..T2,T3,T4201505

GRAY,TRIM1#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01006iKDY231,TRY230..TB..125T;KDY271,281,TRY230..TW1,TW3201610

73178BCAP, SEAT BELT ANCHOR COVER

main72137-37010-B0iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505

DK.CHARCOAL,TRIM12

main72137-37010-B1iTRY230..ST..IV6;TRY230..TB..125T;TRY220,230..(T2,T3,T4,TW1,TW3)..(CBU,IV3)201505

GRAY,TRIM13

9011908134

main90119-08134

9011910111

main90119-10111

9011910229

main90119-10229

9011910825

main90119-10825

9016740044

main90167-40044

9017908149

main90179-08149

9017911010

main90179-11010

9165160614

main91651-60614

29 parts on this diagram · 14 diagrams in section
