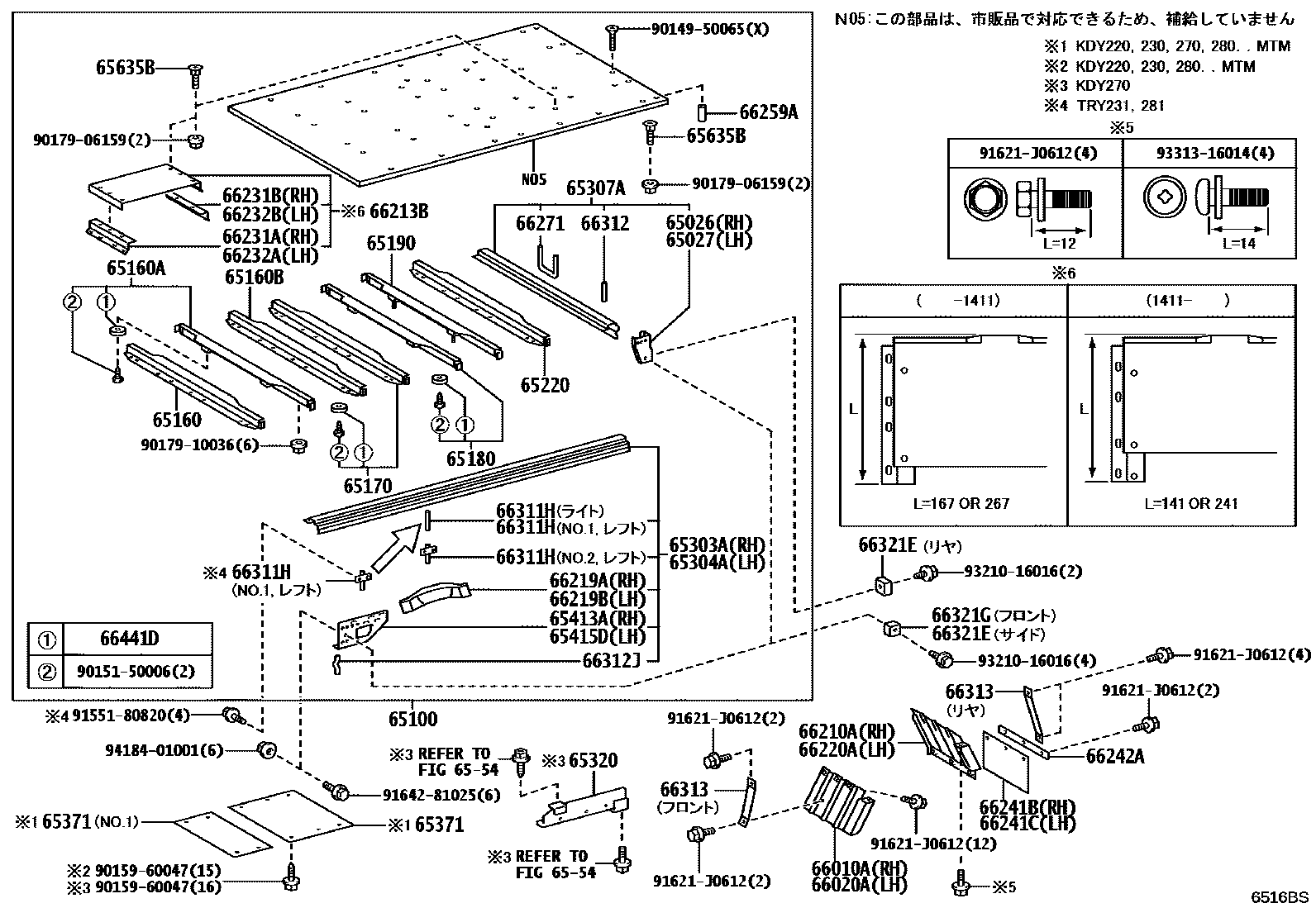

REAR BODY FLOOR & FENDER

0001 1�������� 0004 1�������� 0006 1�������� 0007 1�������� 0009 1��-����� 0011 1�������� 0012 1��-����� 0014 1��-����� 0016 1��-����� 0018 1�������� 0019 1��-����� 0020 1�������� 0021 1��-����� 0023 1�������� 0024 1�������� 0025 1

65026BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH

main65026-37020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

65027BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH

main65027-37020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

65100FLOOR ASSY, REAR BODY

main65100-25A00iKDY22#,270..T2..TS..MTM..ST..CBU200408-201004

***

sub65100-25B90

main65100-25A10iKDY22#,270..T2..TS..MTM..ST..CBU200408-201004

sub65100-25C00

main65100-25A20iKDY22#..T2..TS..WT..CBU200408-201004

***

sub65100-25C10

main65100-25A30iKDY23#,280..T2..MTM..125T..CBU200408-201004

***

sub65100-25D30

main65100-25A40iKDY23#..T2..TS..WT..CBU200408-201004

***

sub65100-25D40

main65100-25A50iKDY23#..T2..TS..WT..CBU200408-201004

sub65100-25D50

main65100-25A60iKDY22#,271..T3..TS..MTM..CBU200410-201004

sub65100-25B80

main65100-25A70iTRY220..T3..CBU;KDY221..T3..TS..ATM..CBU201004

***

main65100-25B20iKDY281..T3..TS..ATM..CBU200709-201004

sub65100-25C90

main65100-25B31iTRY231,281..CBU201505

main65100-25B40iTRY231,281..CBU200712-201505

sub65100-25B41

main65100-25B41iTRY231,281..CBU201505

main65100-25B60iKDY221,271..T3..TS..MTM..CBU201004

***

main65100-25B70iTRY220..T3..MTM..CBU201004

main65100-25B80iKDY221,271..T3..TS..MTM..CBU201004

main65100-25B90iKDY221..T2..TS..MTM..ST..CBU201004-201504

***

sub65100-25B91

main65100-25B91iKDY221..T2..TS..MTM..ST..CBU201505

***

main65100-25C00iKDY221..T2..TS..MTM..ST..CBU201004

main65100-25C10iKDY221..T2..TS..WT..CBU201004-201504

***

sub65100-25C11

main65100-25C11iKDY221..T2..TS..WT..CBU201505

***

main65100-25C30iTRY220..T2..ST..CBU;KDY221..T2..ATM..CBU201004

***

main65100-25C40iTRY220..T2..ST..CBU;KDY221..T2..ATM..CBU201003

main65100-25C50iTRY220..125T..WT..CBU201004

***

main65100-25C60iTRY220..TS..15T..CBU201004

***

main65100-25C70iKDY281..T3..TS..CBU201004

***

main65100-25C80iKDY231,TRY230..T3..125T..CBU201004

***

main65100-25C90iKDY281..T3..TS..ATM..CBU201004

main65100-25D10iTRY230..T2..125T..CBU;KDY231,281..T2..ATM..125T..CBU201004

***

main65100-25D20iTRY230..TS..15T..CBU201004

***

main65100-25D30iKDY231..MTM..125T..ST..CBU201004-201504

***

sub65100-25D31

main65100-25D31iKDY231..MTM..125T..ST..CBU201505

***

main65100-25D40iKDY231..T2..TS..WT..CBU201004-201504

***

sub65100-25D41

main65100-25D41iKDY231..T2..TS..WT..CBU201505

***

main65100-25D50iKDY231..T2..TS..WT..CBU201004

main65100-25D70iKDY231,281,TRY230..1T..CBU201004

***

main65100-25D80iTRY220..1T..CBU201004-201609

***

main65100-25D90iKDY221,271..1T..CBU201004

***

main65100-25E00iTRY230..TW1..CBU201004

***

main65100-25E10iKDY281..TW1201004

***

main65100-25E20iTRY230..TS..15T..CBU201008

main65100-25E31iKDY231,TRY230..TS..125T..WT201610

***

main65100-2E021iKDY221,TRY220..T2..TB..WT201505

***

main65100-2E031iKDY221,TRY220..T4..TB..CBU201505

***

main65100-2E040iKDY220,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY220,270,LY220,270..T2..TB..ST200107-201505

main65100-2E040iKDY221..TB..ST;KDY221..T2..ATM..IV3200709-201505

***

main65100-2E041iKDY221..T2..TB..ST;TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3201505

***

main65100-2E050iKDY27#,LY270..T3..TB200107-201505

***

main65100-2E051iKDY221,271..T3..TB..CBU201505

***

main65100-2E061iKDY231,TRY230..T2..TB..WT..CBU201505

***

main65100-2E070iKDY23#,LY230,RZY230,TRY230..TW2..CBU200107-201505

***

main65100-2E071iKDY231,TRY230..TW2..TB..CBU201505

***

main65100-2E081iKDY231,TRY230..T4..TB..CBU201505

***

main65100-2E100iKDY23#,280,LY230,280,RZY230..TW4..CBU200107-201505

***

main65100-2E101iKDY231..TW4..CBU201505

***

main65100-2E110iLY230..TB..125T..ST200107-200308

***

main65100-2E121iKDY231,TRY230..T2..15T..ST..CBU201505

***

main65100-2E131iKDY231,281,TRY230..T3..TB..CBU201505

***

main65100-2E140iKDY22#,LY220,RZY220,TRY220..T4..TB..CBU200107-201505

main65100-2E141iKDY221,TRY220..T4..TB..CBU201505

main65100-2E150iKDY22#,LY220..TB..ST200107-201505

main65100-2E160iKDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU200107-201505

main65100-2E161iKDY231,TRY230..T2..TB..MTM..WT201505

main65100-2E170iKDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201505

main65100-2E171iKDY231,TRY230..T4..TB..CBU201505

main65100-2E180iKDY23#,280,LY230,280..T2..MTM..15T..ST..CBU200107-201505

main65100-2E190iKDY23#,281,LY230..T3..MTM..15T..CBU200107-201505

main65100-2E191iKDY281..15T..CBU201505

main65100-2E200iKDY22#,LY220,RZY220,TRY220..T4..TB..CBU200107-201505

main65100-2E201iKDY221,TRY220..T4..TB..CBU201505

main65100-2E210iKDY22#,LY220..TB..ST200107-201505

main65100-2E220iKDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU200107-201505

main65100-2E221iKDY231,TRY230..T2..TB..MTM..WT201505

main65100-2E230iKDY280,LY280..MTM..15T..WT..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201505

main65100-2E231iKDY231,TRY230..T4..TB..CBU201505

main65100-2E240iKDY23#,280,LY230,280..T2..MTM..15T..ST..CBU200107-201505

main65100-2E250iKDY23#,281,LY230..T3..MTM..15T..CBU200107-201505

main65100-2E251iKDY281..15T..CBU201505

main65100-2E260iKDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU200107-201004

***

sub65100-25C30

main65100-2E280iKDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..ST..CBU200107-201004

***

sub65100-25D10

main65100-2E280iLY230..TS..WT..CBU200107-200408

sub65100-25D10

main65100-2E320iKDY220..T3..MTM..CBU200107-201004

***

sub65100-25A70

main65100-2E350iKDY28#,LY280..T3..TS..CBU200107-201004

***

sub65100-25C70

main65100-2E360iKDY23#,28#,LY230,280,RZY230,TRY230..1T..CBU200107-201004

***

sub65100-25D70

main65100-2E370iTRY220..1T..CBU200308-201004

***

sub65100-25D80

main65100-2E380iTRY230..TW1..CBU200308-201004

***

sub65100-25E00

main65100-2E420iLY220,RZY220,TRY220..125T..WT..CBU200107-201004

***

sub65100-25C50

main65100-2E440iLY220,RZY220,TRY220..TS..15T..CBU200107-201004

***

sub65100-25C60

main65100-2E460iLY230,RZY230,TRY230..TS..WT..CBU200107-201004

***

sub65100-25D20

main65100-2E470iKDY221,27#,LY270..T3..TS..MTM..CBU200107-201004

***

sub65100-25B60

main65100-2E490iKDY22#,27#,LY220,270..1T..CBU200107-201004

***

sub65100-25D90

main65100-2E500iKDY28#,LY230,280..TW1..CBU200107-201004

***

sub65100-25E10

main65100-2E510iKDY23#,LY230,TRY230..T3..125T..CBU200107-201004

***

sub65100-25C80

main65100-2E530iKDY22#,LY220,RZY220,TRY220..T2..TB..WT200107-201505

***

main65100-2E531iKDY221,TRY220..T2..TB..WT201505

main65100-2E540iKDY22#,LY220,RZY220,TRY220..T4..TB..CBU200107-201505

***

main65100-2E541iKDY221,TRY220..T4..TB..CBU201505

main65100-2E550iKDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU200107-201505

***

sub65100-2E551

main65100-2E551iKDY231,TRY230..T2..TB..WT..CBU201505

main65100-2E560iKDY23#,280,LY230,280,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201505

***

main65100-2E561iKDY231,TRY230..T4..TB..CBU201505

main65100-2E570iLY230,280,RZY231,281..LPG..CBU200107-200708

***

main65100-2E580iKDY23#,280,LY230,280,RZY230,TRY230..T2..15T..ST..CBU200107-201505

***

main65100-2E581iKDY231,TRY230..T2..15T..ST..CBU201505

main65100-2E590iKDY23#,28#,LY230,280,RZY230,TRY230..T3..TB..CBU200107-201505

***

main65100-2E591iKDY231,281,TRY230..T3..15T..CBU201505

65160SILL ASSY, CROSS, NO.2

main65160-25280iLY230..TB..125T..ST;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,270,LY220,270,RZY220,TRY220..T2..TB;KDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU200107

main65160-25290iKDY280,LY280..(T2,T4)..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..T4..TB..CBU200107

main65160-25300iKDY22#,23#,270,280..T2..TS..MTM..CBU200408

main65160-25310iKDY221,27#,LY270..T3..TB..CBU200107

main65160-25320iKDY23#,28#,LY230,280,RZY230,TRY230..T3..TB..CBU200107

main65160-25330iKDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU200107

main65160-25350iLY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU200107

main65160-25360iKDY28#,LY230,280,TRY230..TW1..CBU200107

main65160-25370iRZY220,TRY220..1T..CBU200107-201609

main65160-25380iKDY28#,LY280..T3..TS..CBU;KDY221,27#,LY270..T3..TS..MTM..CBU200107

main65160-95A03iKDY22#,27#,LY220,270..1T..CBU200107

main65160-95A08iKDY28#,LY280..T3..TS..CBU200107

main65160-95A08iKDY220..T3..MTM..CBU200107-200410

65160ASILL ASSY, CROSS, NO.2

main65170-25160iTRY220..T2..ST..IV3;TRY220,230..T2..TB..WT..CBU200107-200408

main65170-25170iKDY280,LY280..(T2,T4)..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..T4..TB..CBU200107

main65170-25190iKDY23#,LY230,RZY230,TRY230..TW2..TB..CBU200107

main65170-25200iKDY23#,280,LY230,280,RZY230..TW4..CBU200107

main65180-25110iKDY221,27#,LY270..T3..TB..CBU200107

main65180-25230iKDY23#,28#,LY230,280,RZY230,TRY230..T3..TB..CBU200107

65160BSILL ASSY, CROSS, NO.2

main65180-25110iLY230..TB..125T..ST;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,270,LY220,270,RZY220,TRY220..T2..TB;KDY23#,LY230,RZY230,TRY230..(T2,TW2)..TB..WT..C200107

main65180-25120iKDY221,27#,LY270..T3..TB..CBU200107

main65180-25130iTRY230..T3..15T..CBU200107-200408

main65180-25230iKDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU200107

65170SILL ASSY, CROSS, NO.2

main65170-25030iTRY230..TW1..CBU200308

main65170-25160iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TB..WT..CBU200107

main65170-25230iKDY220..T3..MTM..CBU200107

main65170-25240iKDY28#,LY280..T3..TS..CBU200107

main65170-95037iKDY28#,LY230,280..TW1..CBU200107

main65170-95037iTRY230..TW1..CBU200308

main65180-25110iKDY221,27#,LY270..T3..TB..CBU200107

main65180-25230iKDY23#,28#,LY230,280,RZY230,TRY230..T3..TB..CBU200107

main65190-25040iLY280..(T2,T4,TW4)..TB..CBU;KDY231,LY230,RZY230..T2..15T..ST..CBU;KDY221,231,LY220,230,RZY220,230,TRY231,281..(T4,TW4)..TB..CBU200107-200408

main65190-25060iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,270,LY220,230,270..T2..TB..(125T,12T)200107

65180SILL ASSY, CROSS, NO.4

main65170-25140iKDY23#,280..T2..TS..MTM..CBU200408

main65170-25160iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TB..WT..CBU200107

main65170-25180iKDY22#,270..T2..TS..MTM..ST..CBU200408

main65170-25210iKDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..ST..CBU200107

main65170-25220iLY230,RZY230,TRY230..TS..15T..CBU200107

main65170-25250iKDY22#..T2..TS..WT..CBU;KDY23#,280..T2..TS..MTM..CBU200408

main65180-25120iKDY221,27#,LY270..T3..TB..CBU200107

main65180-25130iKDY23#,28#,LY230,280,RZY230,TRY230..T3..TB..CBU200107

main65180-25150iKDY23#,28#..T2..ATM..125T..CBU;LY230,280,RZY230,TRY230..T2..TS..ST..CBU200107

main65180-25150iKDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU200107

main65180-25160iKDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..ST..CBU200107

main65180-25170iLY220,RZY220,TRY220..TS..WT..CBU200107

main65180-25180iLY230,RZY230,TRY230..TS..15T..CBU200107

main65180-25190iLY220,RZY220,TRY220..TS..WT..CBU200107

main65180-25200iTRY220,230..TW1..CBU200308

main65180-25260iKDY22#..T2..TS..WT..CBU200408

main65180-25270iKDY22#,270..T2..TS..MTM..ST..CBU200408

main65180-95A04iKDY22#,27#,28#,LY220,230,270,280..TW1..CBU200107

main65180-95A07iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU200107

main65190-25040iKDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU200107

main65190-25060iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,270,LY220,230,270..T2..TB..(125T,12T)200107

65190SILL ASSY, CROSS, NO.5

main65180-25110iLY230..TB..125T..ST;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY23#,LY230,RZY230,TRY230..(T2,TW2)..TB..WT..CBU;KDY22#,27#,LY220,270,RZY220,TRY220..(T2,200107

main65180-25230iKDY280,LY280..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY23#,281,LY230,RZY230..(T3,T4,TW4)..TB..CBU;KDY22#,LY220,RZY220,231,281,TRY220,23#,281..(T3,T4)200107

main65190-25050iKDY22#..T2..TS..WT..CBU;KDY23#,280..T2..TS..MTM..CBU200408

main65190-25090iKDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU200107

65220SILL ASSY, CROSS, NO.4

main65180-25110iKDY220,LY220..TB..ST;KDY231,TRY230..T2..TB..MTM..WT;KDY230,LY230,RZY230..T2..TB..WT..CBU200107-201505

main65180-25230iKDY230,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY22#,23#,LY220,230,RZY220,230,TRY220,230..T4..TB..(DCR,DSL,EFI)..CBU200107-201505

main65220-26010iKDY23#,28#,LY230,280,TRY230..T3..TS..CBU200107

main65220-95A05iKDY22#,271..T3..TS..MTM..CBU200107

main65230-25050iLY230..TB..125T..ST;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,270,LY220,270,RZY220,TRY220..T2..TB;KDY23#,LY230,RZY230,TRY230..(T2,TW2)..TB..WT..C200107

main65230-25060iKDY221,27#,LY270..T3..TB..CBU200107

main65230-25120iKDY231..T3..MTM..CBU200107-201505

main65230-25130iKDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY23#,LY230,RZY230,TRY230..T2..15T..ST..CBU;KDY22#,23#,LY220,230,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU200107

main65230-25140iKDY23#,28#,LY230,280,RZY230,TRY230..T3..TB..CBU200107

65303AFRAME SUB-ASSY, FLOOR SIDE, RH

main65303-25350iKDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU;KDY23#,28#,LY230,280,RZY230,TRY230..T3..TB..CBU200107-201312

main65303-25351iKDY231,TRY230..T2..TB..WT..CBU201312

main65303-25361iKDY231,TRY230..T4..TB..CBU;KDY231,TRY230..T2..15T..ST..CBU201312

main65303-25371iKDY231,281,TRY230..T3..TB..CBU201312

main65303-25380iLY230,280,RZY231,281..LPG..CBU200107-200708

main65303-25390iKDY27#,LY270..T3..TB;KDY22#,LY220,RZY220,TRY220..T2..TB..WT200107-201312

main65303-25391iKDY221,TRY220..T2..TB..WT201312

main65303-25401iKDY221,TRY220..T4..TB..CBU201312

main65303-25411iKDY221,271..T3..TB..CBU201312

main65303-25420iKDY23#,LY230,RZY230,TRY230..TW2..CBU200107-201312

main65303-25421iKDY231,TRY230..TW2..TB..CBU201312

main65303-25430iKDY23#,280,LY230,280,RZY230..TW4..CBU200107-201312

main65303-25431iKDY231..TW4..CBU201312

main65303-25440iKDY23#,281,LY230..T3..MTM..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU200107-201312

main65303-25441iKDY231,TRY230..T2..ATM..WT..CBU201312-201505

main65303-25450iKDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201312

main65303-25451iKDY231,TRY230..T4..TB..CBU201312-201505

main65303-25461iKDY231..T3..MTM..CBU201312-201505

main65303-25470iKDY23#,281,LY230..T3..MTM..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU200107-201312

main65303-25471iKDY231,TRY230..T2..ATM..WT..CBU201312-201505

main65303-25480iKDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201312

main65303-25481iKDY231,TRY230..T4..TB..CBU201312-201505

main65303-25491iKDY281..15T..CBU201312-201505

main65303-25520iKDY22#,LY220..TB..ST;KDY22#,LY220,RZY220,TRY220..T4..TB..CBU200107-201312

main65303-25521iKDY221..TB..ST201312-201505

main65303-25531iKDY221,TRY220..T4..TB..CBU201312

main65303-25540iKDY280,LY280..(T2,T4)..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..ST..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201312

main65303-25550iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,270,LY220,270..T2..TB..ST;KDY22#,LY220,RZY220,TRY220..T4..TB..CBU200107-201312

main65303-25551iKDY221..T2..TB..ST;TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3201312

main65303-25560iTRY231,281..CBU200712-201312

main65303-25561iTRY231,281..CBU201312

main65303-25570iKDY221,271,TRY220..T3..TS..CBU201004

main65303-25580iTRY220..T2..ST..CBU;KDY221..T2..ATM..CBU201003

main65303-25590iKDY231,281,TRY230..T3..TS..CBU201004

main65303-25600iKDY231,281,TRY230..T2..TS..CBU201004

main65303-25610iKDY231,281,TRY230..(TW2,TW3)..TS..CBU201004

main65303-25620iKDY221..T3..MTM..CBU201610

65304AFRAME SUB-ASSY, FLOOR SIDE, LH

main65304-25310iKDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU;KDY23#,28#,LY230,280,RZY230,TRY230..T3..TB..CBU200107-201312

main65304-25311iKDY231,281,TRY230..T3..TB..CBU;KDY231,TRY230..T2..TB..WT..CBU201312

main65304-25320iKDY280,LY280..(T2,T4)..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..ST..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201312

main65304-25321iKDY231,TRY230..T4..TB..CBU;KDY231,TRY230..T2..15T..ST..CBU201312

main65304-25330iLY230,280,RZY231,281..LPG..CBU200107-200708

main65304-25340iKDY27#,LY270..T3..TB;KDY22#,LY220,RZY220,TRY220..T2..TB..WT200107-201312

main65304-25341iKDY221,271..T3..TB..CBU;KDY221,TRY220..T2..TB..WT201312

main65304-25350iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,270,LY220,270..T2..TB..ST;KDY22#,LY220,RZY220,TRY220..T4..TB..CBU200107-201312

main65304-25351iKDY221..T2..TB..ST;TRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,TRY220..T4..TB..CBU201312

main65304-25360iKDY23#,LY230,RZY230,TRY230..TW2..CBU200107-201312

main65304-25361iKDY231,TRY230..TW2..TB..CBU201312

main65304-25370iKDY23#,280,LY230,280,RZY230..TW4..CBU200107-201312

main65304-25371iKDY231..TW4..CBU201312

main65304-25380iKDY23#,281,LY230..T3..MTM..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU200107-201312

main65304-25381iKDY231..T3..MTM..CBU;KDY231,TRY230..T2..ATM..WT..CBU201312-201505

main65304-25390iKDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201312

main65304-25391iKDY231..T2..MTM..15T..ST..CBU201312-201505

main65304-25400iKDY23#,281,LY230..T3..MTM..15T..CBU;KDY23#,LY230,RZY230,TRY230..T2..TB..WT..CBU200107-201312

main65304-25401iKDY281..15T..CBU;KDY231,TRY230..T2..TB..MTM..WT201312-201505

main65304-25410iKDY23#,LY230..T2..MTM..15T..ST..CBU;KDY280,LY280..(T2,T4)..MTM..15T..(DCR,DSL)..CBU;KDY23#,LY230,RZY230,TRY230..T4..TB..(DCR,DSL,EFI)..CBU200107-201312

main65304-25411iKDY231..T2..MTM..15T..ST..CBU201312-201505

main65304-25440iKDY22#,LY220..TB..ST;KDY22#,LY220,RZY220,TRY220..T4..TB..CBU200107-201312

main65304-25441iKDY221,TRY220..T4..TB..CBU201312-201505

main65304-25460iTRY231,281..CBU200712-201312

main65304-25461iTRY231,281..CBU201312

main65304-25470iTRY220..T2..ST..CBU;KDY221..T2..ATM..CBU201003

main65304-25480iKDY231,281,TRY230..(T2,T3)..TS..CBU201004

main65304-25490iKDY231,281,TRY230..(TW2,TW3)..TS..CBU201004

main65304-25500iKDY221..T3..MTM..CBU201610

65307AFRAME SUB-ASSY, FLOOR, REAR

main65307-25120iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

main65307-25130iKDY221,231..TB..MTM..ST..CBU;KDY231,TRY230..T2..ATM..WT..CBU200107-201612

65320PLATE, REAR FLOOR END

main65320-25010iKDY220,270..TB..ST200408-201202

65371INSULATOR, REAR FLOOR

main65039-25020iRZY220,TRY220..T2..TS..CBU200107

main65039-25030iRZY230,TRY230..T2..TS..CBU200107

main65039-25040iKDY230..T4..TS..CBU;KDY22#,27#,28#..T3..TS..MTM..CBU200408-200903

main65039-25050iKDY22#,27#..TB..CBU;KDY23#,28#..(T2,T3,T4)..TB..MTM..CBU200408

main65039-25060iKDY22#,27#..TB..CBU;KDY23#,28#..(T2,T3,T4)..TB..MTM..CBU200408-202106

main65039-25061iKDY221,271..TB..CBU;KDY231,281..(T2,T3,T4)..TB..MTM..CBU202107

main65371-25090iTRY220,230..TW1..CBU200308

main65371-25120iRZY220,230..T2..TS..CBU;TRY220,230..(T2,TW1)..TS..CBU200107

main65371-25150iKDY230..T4..TS..CBU;KDY22#,27#,28#..T3..TS..MTM..CBU200408-200903

main65371-25160iKDY22#,23#,270,280..T2..TS..MTM..CBU200408

main65371-25170iKDY22#,23#,270,280..T2..TS..MTM..CBU200408

65413ABRACKET, GUARD FRAME, RH

main65413-37050iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

65415DBRACKET, GUARD FRAME, LH

main65415-25010iLY230,280,RZY231,281,TRY231,281..LPG..CBU200107

main65415-37030iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TB..(DCR,DSL,EFI)..CBU200107

6554

65635BBOLT, COUNTER SUNK HEAD SQUARE NECK

main65635-92830iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

66010AFENDER ASSY, REAR NO.2 RH

main66010-25020iKDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU200107

main66010-25060iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,270,280,LY220,230,270,280,RZY230,TRY230..T2..TB..ST..CBU200107

main66010-25070iKDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU200107

main66010-25080iKDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU200107

main66010-25090iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU200110

main66010-25100iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TB..WT..CBU200107

main66010-25110iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU200107

main66010-25130iKDY22#,23#,270,280..T2..TS..MTM..ST..CBU200408

main66010-25140iKDY22#,23#..T2..TS..WT..CBU200408

main66010-26010iLY220,230,270,280,RZY220,230..(T3,TW3)..TS..CBU200107-200110

sub66010-25090

66020AFENDER ASSY, REAR NO.2 LH

main66020-25020iKDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU200107

main66020-25040iLY230,280,RZY231,281,TRY231,281..LPG..CBU200107

main66020-25050iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,270,280,LY220,230,270,280,RZY230,TRY230..T2..TB..ST..CBU200107

main66020-25060iKDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU200107

main66020-25070iKDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU200107

main66020-25080iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU200110

main66020-25100iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TB..WT..CBU200107

main66020-25110iKDY22#,23#,280,LY220,230,280,RZY220,230,TRY220,230..(T4,TW4)..TB..(DCR,DSL,EFI)..CBU200107

main66020-25120iKDY22#,23#,270,280..T2..TS..MTM..ST..CBU200408

main66020-25130iKDY22#,23#..T2..TS..WT..CBU200408

main66020-26010iLY220,230,270,280,RZY220,230..(T3,TW3)..TS..CBU200107-200110

sub66020-25080

66210AFENDER ASSY, REAR NO.1 RH

main66010-95A03iKDY22#,23#,270,280..T2..TS..MTM..ST..CBU200408

main66010-95A04iKDY22#,23#..T2..TS..WT..CBU200408

main66205-25010iKDY22#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1..CBU200110

main66205-95A01iLY220,230,270,280,RZY220,230..TW1..CBU200107-200110

sub66205-25010

main66210-25010iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU200107

main66210-25020iKDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU200107

main66210-25030iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TB..WT..CBU200107

main66210-25040iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,270,280,LY220,230,270,280,RZY230,TRY230..T2..TB..ST..CBU200107

main66210-25050iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU200110

main66210-95018iKDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU200107

main66210-95019iKDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU200107

main66210-95A02iLY220,230,270,280,RZY220,230..(T3,TW3)..TS..CBU200107-200110

sub66210-25050

66213BPLATE, REAR FENDER, UPPER

main66203-25010iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU200107-201411

main66203-25011iKDY221,231,TRY220,23#,281..TB..WT..CBU201411

main66203-25020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY230,TRY230..TB..ST..CBU200107-201411

main66203-25021iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY230..TB..ST..CBU201411

66219AEXTENSION, REAR FENDER

main66219-25010iKDY231..T4..TB..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY22#,23#,270,LY220,230,270,RZY230,TRY230..T2..TB..ST.200107

main66219-25020iTRY220..T2..ST..CBU;KDY221..T2..ATM..CBU;KDY231,TRY230..TS..125T..WT201003

66219BEXTENSION, REAR FENDER

main66219-25010iKDY231..T4..TB..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY280,LY280..(T2,T4,TW4)..TB..CBU;KDY22#,23#,270,LY220,230,270,RZY230,TRY230..T2..TB..ST.200107

main66229-25010iTRY220..T2..ST..CBU;KDY221..T2..ATM..CBU;KDY231,TRY230..TS..125T..WT201003

66220AFENDER ASSY, REAR NO.1 LH

main66020-95A03iKDY22#,23#,270,280..T2..TS..MTM..ST..CBU200408

main66020-95A04iKDY22#,23#..T2..TS..WT..CBU200408

main66205-25010iKDY22#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1..CBU200110

main66205-95A01iLY220,230,270,280,RZY220,230..TW1..CBU200107-200110

sub66205-25010

main66220-25010iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..(T4,TW4)..TB..CBU200107

main66220-25020iKDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU200107

main66220-25030iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TB..WT..CBU200107

main66220-25040iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,270,280,LY220,230,270,280,RZY230,TRY230..T2..TB..ST..CBU200107

main66220-25050iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU200110

main66220-95020iKDY231..TS..125T..WT;LY220,230,RZY220,230,TRY220,230..TS..WT..CBU200107

main66220-95021iKDY22#,23#,28#..T2..ATM..125T..CBU;LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU200107

main66220-95A02iLY220,230,270,280,RZY220,230..(T3,TW3)..TS..CBU200107-200110

sub66220-25050

66231ARETAINER, REAR FENDER, FRONT RH

main66231-25010iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU200107-201411

main66231-25011iKDY221,231,TRY220,23#,281..TB..WT..CBU201411

main66231-25020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY230,TRY230..TB..ST..CBU200107-201411

main66231-25021iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY230..TB..ST..CBU201411

66231BRETAINER, REAR FENDER, REAR RH

main66231-25020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY230,TRY230..TB..ST..CBU200107-201411

main66231-25021iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY230..TB..ST..CBU201411

main66232-25010iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU200107-201411

main66232-25011iKDY221,231,TRY220,23#,281..TB..WT..CBU201411

66232ARETAINER, REAR FENDER, FRONT LH

main66231-25020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY230,TRY230..TB..ST..CBU200107-201411

main66231-25021iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY230..TB..ST..CBU201411

main66232-25010iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU200107-201411

main66232-25011iKDY221,231,TRY220,23#,281..TB..WT..CBU201411

66232BRETAINER, REAR FENDER, REAR LH

main66231-25010iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU200107-201411

main66231-25011iKDY221,231,TRY220,23#,281..TB..WT..CBU201411

main66231-25020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY230,TRY230..TB..ST..CBU200107-201411

main66231-25021iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY230..TB..ST..CBU201411

66241BBAFFLE, RUBBER

main66241-25040iKDY23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU200107-200904

sub66241-25041

main66241-25041iKDY221,231,271,281,TRY230..T3..TB..CBU200905

main66241-25050iKDY23#..T4..TS..CBU200605-200903

sub66241-25051

main66241-25050iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU200107-200904

sub66241-25051

main66241-25051iKDY221,231,TRY220,23#,281..TB..WT..CBU200905

main66241-25070iKDY23#..T4..TS..CBU200605-200903

sub66241-25071

main66241-25090iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,270,280,LY220,230,270,280,RZY230,TRY230..T2..TB..ST..CBU200107-200904

sub66241-25091

main66241-25091iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,TRY230..T2..TB..ST..CBU200905

main76625-25010iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..CBU200107-200904

sub76625-25011

main76625-25011iKDY221,231,281,TRY220,230..(T2,TW2)..TS..CBU200905

main76625-25030iLY220,230,270,280,RZY220,230..(T3,TW1,TW3)..TS..CBU200110-200308

sub76625-25040

main76625-25040iKDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..(T3,TW1,TW3)..TS..CBU200308-200908

sub76625-25041

main76625-25041iKDY221,231,271,281,TRY220,230..(T3,TW1,TW3)..TS..CBU200909

main76625-37010iLY220,230,270,280,RZY220,230..(T3,TW1,TW3)..TS..CBU200107-200110

sub76625-25030

66241CBUFFLE, RUBBER

main66241-25040iKDY23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU200107-200904

sub66241-25041

main66241-25041iKDY221,231,271,281,TRY230..T3..TB..CBU200905

main66241-25070iKDY22#,23#,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU200107-200904

sub66241-25071

main66241-25071iKDY221,231,TRY220,23#,281..TB..WT..CBU200905

main66241-25090iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,270,280,LY220,230,270,280,RZY230,TRY230..T2..TB..ST..CBU200107-200904

sub66241-25091

main66241-25091iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,TRY230..T2..TB..ST..CBU200905

main76625-25010iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU200107-200904

sub76625-25011

main76625-25011iKDY221,231,281,TRY220,230..T2..TS..ST..CBU200905

main76625-25020iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..T2..TS..WT..CBU200107-200904

main76625-25021iKDY221,231,TRY220,230..(T2,TW2)..TS..WT..CBU200905

main76625-25030iLY220,230,270,280,RZY220,230..(T3,TW1,TW3)..TS..CBU200110-200308

sub76625-25040

main76625-25040iKDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..(T3,TW1,TW3)..TS..CBU200308-200908

sub76625-25041

main76625-25041iKDY221,231,271,281,TRY220,230..(T3,TW1,TW3)..TS..CBU200909

66242APLATE, BAFFLE RUBBER

main66242-25050iKDY230..T2..TB..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,231,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,23#,2200107

main66242-25050iKDY231..T4..TS..CBU200107-200903

main66242-25060iKDY230..T2..TB..WT..CBU;KDY230..(T4,TW2,TW4)..CBU;KDY22#,231,280,LY220,230,280,RZY220,23#,281,TRY220,23#,281..TB..WT..CBU200107-200903

main66242-37070iKDY221,23#,27#,28#,LY230,270,280,RZY230,TRY230..T3..TB..CBU200107

main66242-95011iKDY22#,23#,LY220,230,RZY220,230,TRY220,230..(T2,TW2)..TS..WT..CBU200107

main66242-95012iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW1,TW3)..TS..CBU200107

main66242-95A00iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..T2..TS..ST..CBU200107

66259ACOVER, REAR BODY FLOOR, REAR

main66259-25010iLY220,RZY220,TRY220..TS..WT..CBU200107

main66259-25020iLY220,RZY220,TRY220..TS..WT..CBU200107

main66259-25030iLY230,RZY230,TRY230..TS..15T..CBU200107

main66259-25040iLY230,RZY230,TRY230..TS..15T..CBU200107

main66259-25050iKDY230..T4..TS..CBU;LY280..T3..125T..CBU;KDY22#,27#,28#,LY270..T3..TS..MTM..CBU200107-200903

main66259-25060iKDY230..T4..TS..CBU;LY280..T3..125T..CBU;KDY22#,27#,28#,LY270..T3..TS..MTM..CBU200107-200903

main66259-25070iKDY22#,27#,LY270..T3..TS..MTM..CBU200107

main66259-25080iKDY231..T4..TS..CBU200107-200903

main66259-25090iKDY22#,270..T2..TS..MTM..ST..CBU200408

main66259-25100iKDY23#,280..T2..TS..MTM..CBU200408

main66259-25110iKDY22#,270..T2..TS..MTM..ST..CBU200408

main66259-37010iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107-201505

66271STEP, REAR BODY

main66271-25010iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

main66271-95A00iKDY231..T4..TS..CBU200107-200903

main66271-95A01iKDY22#,23#,270,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T2,TW2)..TS..CBU200107

66311HHOOK, ROPE

main66311-25060iLY230,280,RZY231,281,TRY231,281..LPG..CBU200107

main66311-37020iKDY220,LY220..TB..ST;KDY22#,LY220,RZY220,TRY220..T4..TB..CBU200107-201505

main66311-37020iRZY220..T2..ST..IV3;KDY22#,LY220..T2..ATM..IV3;KDY22#,27#,LY220,270,RZY220,TRY220..TB..CBU200107

main66311-37020iTRY220..T2..ST..IV3200308

66312HOOK, ROPE, NO.2

main66311-37020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

main66311-95011iKDY281..T3..TS..CBU;KDY221,271..T3..TS..MTM..CBU200910

main66311-95014iKDY28#,LY280..T3..TS..CBU;KDY221,27#,LY270..T3..TS..MTM..CBU200107-200909

sub66311-95011

66312JHOOK, ROPE, NO.2

main66312-37020iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

66313SUPPORT, REAR FENDER

main66235-25010iKDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TR200107-200903

main66235-25040iKDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU200107

main66235-25050iKDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU200107

main66235-26010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU200107

main66235-95A03iKDY22#,23#,270,280..T2..TS..MTM..CBU200408

main66236-25020iKDY230..(T3,T4)..15T..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY230..(T2,TW2,TW4)..TB..CBU;KDY22#,231,27#,28#,LY220,230,270,280,RZY220,23#,281,TR200107-200903

main66236-25060iKDY22#..T2..ATM..CBU;LY220,270,RZY220,TRY220..T2..TS..CBU200107

main66236-25070iKDY231..TS..MTM..125T..WT;KDY23#,28#..(T2,TW2)..TS..ATM..CBU;LY230,280,RZY230,TRY230..(T2,TW2)..TS..CBU200107

main66236-25080iKDY22#,270..T2..TS..MTM..CBU200408

main66236-25090iKDY23#,280..T2..TS..MTM..CBU200408

main66236-26020iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..(T3,TW3)..TS..CBU200107

66321EBUMPER, GATE RUBBER

main66321-37010iKDY22#,27#,28#,TRY220,230..TW1..CBU200505

main66321-37030iTRY220..T2..ST..IV3;KDY221..T2..ATM..IV3;KDY221,231,271,281,TRY220,23#,281..TB..CBU201411

main66321-92803iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107

main66321-92805iKDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..TB..CBU200107-201410

main66321-95406iLY220,230,RZY220,230..TW1..IV3200107-200504

sub66321-37010

66321GBUMPER, GATE RUBBER

main66321-25010iLY220,230,270,280,RZY220,230..(T2,T3,TW3)..TS..CBU200107-200308

sub66321-25020

main66321-25020iKDY230..TS..CBU;KDY22#,231,27#,28#,LY220,230,270,280,TRY220,230..(T2,T3,TW2,TW3)..TS..CBU200308-200903

main66321-37030iKDY221..T2..TB..ST;TRY230..TB..15T..WT..CBU;KDY231..TB..ATM..15T..WT..CBU;KDY231,281..TB..MTM..15T..CBU;KDY221,TRY220..(T3,T4)..TB..MTM..CBU201411

main66321-92805iKDY281..TB..125T;LY230,280..LPG..CBU;LY280..TB..ATM..DSL..CBU;KDY280..ATM..15T..WT..CBU;KDY22#,LY220..T2..ATM..IV3;RZY220,TRY220..T2..ST..IV3;LY280..(T3,TW4)..TB..M200107-201410

main66331-95010iKDY281..T3..TS..ATM..CBU;KDY23#,LY230..T2..TS..WT..CBU;KDY22#,271,LY220,RZY220,TRY220..T3..TS..MTM..CBU;KDY22#,270,LY220,270,RZY220,TRY220..T2..TS..ST..CBU200107-200903

main66331-95010iTRY230..TS..15T..CBU201008

66441DSHIM, MOUNTING, NO.1

main66441-37010iLY230..TB..125T..ST;RZY220..T2..ST..IV3;LY230,280,RZY220,230..(T2,T4,TW2,TW4)..TB..(EFI,LPG)..CBU200107-200708

9014950065

main90149-50065

9015150006

main90151-50006

9015960047

main90159-60047

9017906159

main90179-06159

9017910036

main90179-10036

9155180820

main91551-80820

91621J0612

main91621-J0612

9164281025

main91642-81025

9321016016

main93210-16016

9331316014

main93313-16014

9418401001

main94184-01001

53 parts on this diagram · 16 diagrams in section
