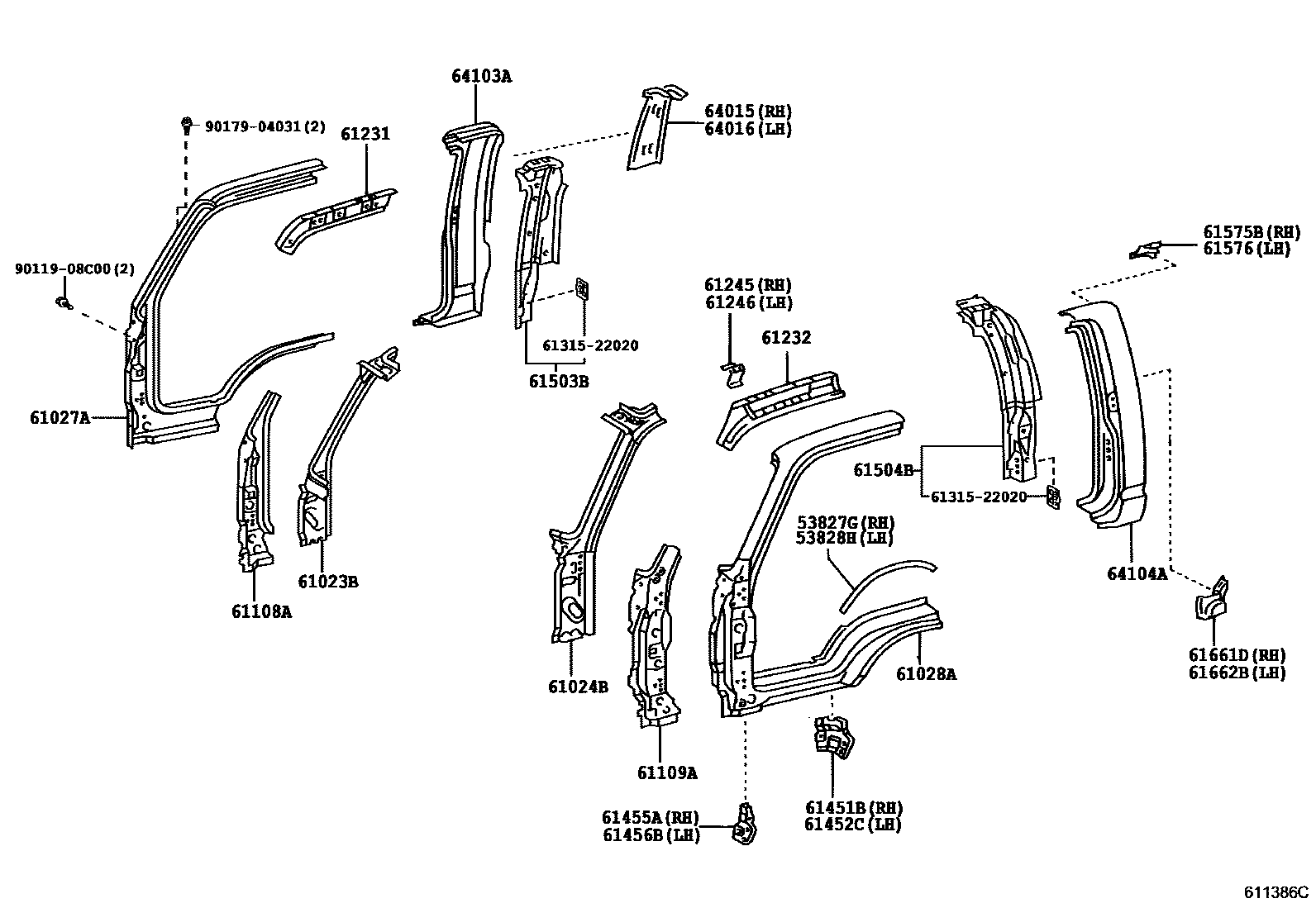

SIDE MEMBER

0001 1���� 0002 1���� 0003 1���� 0004 1RH,���� 0005 1LH,���� 0006 1 0007 1������-� 0008 1������-�

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53827-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37040iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201501

main61023-37041iKDY221,231,241,271,281,TRY220,23#,281201501-202111

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37090iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201301

main61024-37091iKDY221,231,241,271,281,TRY220,23#,281201610-202111

main61024-37220iKDY221,231,241,271,281,TRY220,23#,281201302-201501

main61024-37221iKDY221,231,241,271,281,TRY220,23#,281201501-201610

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61131-37061iLY230..TW2,TW3,TW4;LY220,270,280,TRY220,230..TW1,TW2,TW3,TW4200107-200401

main61131-37062iKDY22#,23#,27#,28#,TRY231,281..CBU,IV3;LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4200401-201412

main61131-37063iKDY221,231,271,281,TRY220,23#,281..CBU,IV3201501

main61131-37081iLY230,280,RZY230,TRY230..IV6200107-200408

main61131-37082iKDY23#,28#,TRY230..IV6200408-201412

main61131-37083iKDY231,281,TRY230..IV6201501-202111

main61131-37101iKDY24#,290,LY240,290200107-201412

main61131-37102iKDY241201501

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61112-37151iKDY24#,290,LY240,290200107-201501

main61112-37152iKDY241201501

main61132-37041iLY220,230,270,280,RZY220,23#,281,TRY220,230200107-200406

main61132-37042iKDY221..T4..TB;KDY221..T2,T3,TW1;KDY220,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281200407-201412

main61132-37043iKDY221..T4..TB;KDY221..T2,T3,TW1;KDY231,271,281,TRY220,23#,281201501-201610

main61132-37061iLY220,230,270,280,RZY220,23#,281,TRY220,230200107-200406

main61132-37062iKDY22#,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281200407-201412

main61132-37063iKDY221..T2,T4;KDY221..T3..TB;KDY231,271,281,TRY220,23#,281..T2,T3,T4201501-202111

main61132-37081iKDY24#,290,LY240,290200107-201412

main61132-37082iKDY241201501-201610

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-37031iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281200107-202111

main61108-37041iKDY24#,290,LY240,290200107

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-37011iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281200107-202111

main61109-37021iKDY24#,290,LY240,290200107

61231RAIL, ROOF SIDE, INNER RH

main61203-37050iKDY24#,290,LY240,290200107-200903

main61231-37050iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281200107-202111

main61231-37080iKDY24#,290,LY240,290200107

61232RAIL, ROOF SIDE, INNER LH

main61204-37050iKDY24#,290,LY240,290200107-200903

main61232-37050iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281200107-202111

main61232-37090iKDY24#,290,LY240,290200107

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281200107-202111

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61245-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281200107-202111

61451BPLATE, STEP, LOWER RH

main61451-37010iLY280..ATM..125T..WT..IV3200107-200312

61452CPLATE, STEP, LOWER LH

main61452-37010iKDY221..T2,T4;KDY221..T3..TB;KDY231,271,281,TRY220,23#,281..T2,T3,T4200107-202111

61455ARETAINER, FRONT STEP, RH

main61455-37010iLY280..ATM..125T..WT..IV3200107-200312

61456BRETAINER, FRONT STEP, LH

main61456-37010iKDY221..(T3,TW1)..TS;KDY231,271,281,TRY220,230..TW1,TW2,TW3,TW4;KDY220,230,24#,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281200107

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-201407

main61503-37011iKDY221,231,271,281,TRY220,23#,281..T2,T3,T4201408

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-201407

main61504-37011iKDY221,231,271,281,TRY220,23#,281..T2,T3,T4201408-202111

61575BPLATE, CAB REAR PILLAR, UPPER RH

main61575-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107

61576PLATE, CAB REAR PILLAR, UPPER LH

main61576-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107

61661DEXTENSION, QUARTER PANEL TO UPPER BACK, RH

main61661-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107

61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH

main61662-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main61531-37010iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-201402

main61531-37011iKDY221,231,271,281,TRY220,23#,281..T2,T3,T4201403-201412

main61531-37012iKDY221,231,271,281,TRY220,23#,281..T2,T3,T4201501

main61531-37020iKDY221,23#..T2,T3;KDY221,23#..T4..TB;KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..T2,T3,T4200107-201402

main61531-37021iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4201403-201412

main61531-37022iKDY221,231..T2,T3;KDY221,231..T4..TB;KDY271,281,TRY220,23#,281..T2,T3,T4201501

main64123-37140iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107-201402

main64123-37141iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201403

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main61532-25010iKDY23#,28#,LY230,280,RZY230,TRY230..IV6200107-201402

main61532-25011iKDY231,281,TRY230..IV6201403-201412

main61532-25012iKDY231,281,TRY230..IV6201501

main61532-25040iKDY23#,28#,LY230,280,RZY230,TRY230..IV6200107-201402

main61532-25041iKDY231,281,TRY230..IV6201403-201412

main61532-25042iKDY231,281,TRY230..IV6201501

main61532-37010iKDY221,23#..T4..TB;KDY221,23#..(T2,T3)..(CBU,IV3);KDY220,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-201402

main61532-37011iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201403-201412

main61532-37012iKDY221,231..T4..TB;KDY221,231..(T2,T3)..(CBU,IV3);KDY271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201501-202111

main61532-37021iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)200107-201402

main61532-37022iKDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201403-201412

main61532-37023iKDY221,231,271,281,TRY220,23#,281..(T2,T3,T4)..(CBU,IV3)201501

main64124-37160iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107-201402

main64124-37161iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201403

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main61611-37060iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107-201412

main61611-37061iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201501

main61611-37140iLY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4200107-200408

main61611-37141iKDY22#,23#,27#,28#,RZY231,281,TRY220,23#,281..T2,T3,T4200408-201412

main61611-37142iKDY231,281,TRY230..IV6201501-202111

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main61612-37050iKDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4200107-201412

main61612-37051iKDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4201501

main61612-37110iLY220,230,270,280,RZY220,23#,281,TRY220,230..T2,T3,T4200107-200406

main61612-37111iKDY22#,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281..T2,T3,T4200407-201412

main61612-37112iKDY221,231,271,281,TRY220,23#,281..T2,T3,T4201501-202111

6131522020RETAINER, DOOR LOCK STRIKER PLATE

main61315-22020

9011908C00

main90119-08C00

9017904031

main90179-04031

29 parts on this diagram · 8 diagrams in section
