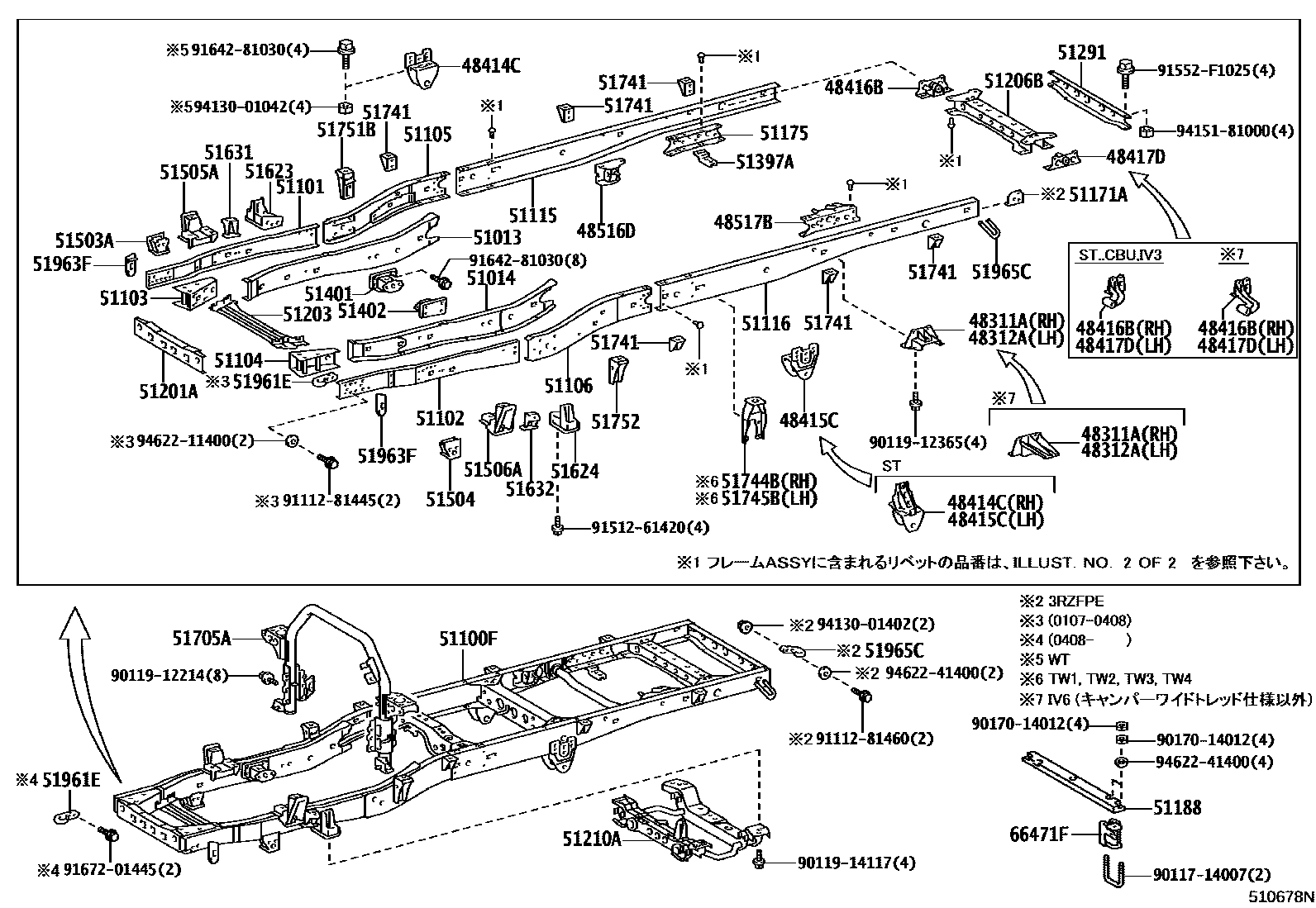

FRAME

0001 1���� 0002 1���� 0003 1�����

48311ABRACKET, HOLLOW SPRING, RH

main48311-25060iRZY220,230..(T2,T3)..ST..(CBU,IV3)200108

main48311-25070iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

48312ABRACKET, HOLLOW SPRING, LH

main48311-25060iRZY220,230..(T2,T3)..ST..(CBU,IV3)200108

main48311-25070iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

48414CBRACKET, SPRING, NO.3 RH

main48414-25090iKDY231..WT..IV6201812-201909

main48414-25110iRZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT200107

main48414-25120iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

48415CBRACKET, SPRING, NO.3 LH

main48414-25090iRZY230..(T3,TW1,TW3)..TS;KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..ST200107

main48414-25110iRZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT200107

main48414-25120iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

48416BBRACKET, SPRING, NO.4 RH

main48405-25030iRZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT200107

main48416-25110iRZY230..(T3,TW1,TW3)..TS;KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..ST200107

main48416-25130iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

48417DBRACKET, SPRING, NO.4 LH

main48405-25030iRZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT200107

main48417-25090iRZY220,230..(T2,T3)..ST..(CBU,IV3)200108

main48417-25100iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-25070iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main51016-25040iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT200107

main51016-25050iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51013CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH

main51013-25020iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51014CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH

main51014-25060iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51100FFRAME SUB-ASSY

main51001-25A00iKDY23#,280,TRY230..125T..WT..IV3200505-201008

main51001-25A01iKDY231,TRY230..TB..125T..CBU201505

main51001-25A10iKDY23#,280,TRY230..15T..WT..IV3200505-201008

main51001-25A11iKDY231,TRY230..15T..WT..CBU201505

main51001-25A20iKDY23#,280,TRY230..15T..WT..IV3200505-201008

main51001-25A21iKDY231,TRY230..15T..WT..IV3201008

main51001-25A30iKDY231,281,TRY230..IV6200308-201008

main51001-25A31iKDY281..T3..125T..IV3201104-201505

main51001-25A40iKDY221,271,TRY220..125T..ST201505

main51001-25A50iKDY281..15T..CBU;KDY281..T3..TS..ATM..CBU201104

main51001-25A60iKDY231,281,TRY230..ST..IV6201505

main51001-25A70iKDY221,TRY220..T4..TB..CBU201104

main51001-25A80iTRY220..TS..15T..IV3201104

main51001-25A90iKDY231,TRY230..T2..ATM..WT..CBU201104-201505

main51001-25B00iKDY231..T4..TS..IV3;TRY230..T2..WT..IV3201104

main51001-25B10iKDY221,TRY220..T4..TB..CBU201104

main51001-25B20iTRY220..15T..IV3;KDY221..TB..WT..IV3;KDY221..T2..WT..IV3201104

main51001-25B30iKDY231,TRY230..T2..ATM..WT..CBU201104-201505

main51001-25B40iKDY231,TRY230..15T..WT..IV3201104

main51001-25B50iTRY231..IV3201104

main51001-25B60iKDY221,271..T3..IV3;TRY220..T3..MTM..IV3201505

main51001-25B70iKDY231,281,TRY230..ST..IV6201505

main51001-2E010iLY220,270..(125T,12T)..ST200107-200408

sub51001-2E011

sub91672-01445

sub94622-11400

main51001-2E020iRZY220,TRY220..125T..ST200108-200408

sub91672-01445

sub94622-11400

main51001-2E021iKDY22#,27#,TRY220..125T..ST200408-201008

main51001-2E022iKDY221,271,TRY220..125T..ST201008-201505

main51001-2E030iLY220,270..1T200107-200408

main51001-2E040iTRY220..1T200308-200408

sub91672-01445

sub94622-11400

main51001-2E041iKDY22#,27#,TRY220..1T..CBU200408-201008

main51001-2E042iKDY221,271,TRY220..1T..CBU201008-201505

main51001-2E050iLY220..WT200107-200408

main51001-2E060iTRY220..WT200308-200408

sub91672-01445

sub94622-11400

main51001-2E061iKDY220,TRY220..WT..IV3200408-200505

main51001-2E062iKDY221,TRY220..WT..CBU201008-201505

main51001-2E070iKDY221..TB..ST201104-201505

main51001-2E100iLY230,280..(T2,T3)..ST200107-200408

sub51001-2E101

sub91672-01445

sub94622-11400

main51001-2E110iRZY230..(T2,T3)..ST;TRY230..(T2,T3)..ST..(CBU,IV3)200108-200408

sub91672-01445

sub94622-11400

main51001-2E111iKDY230..125T..ST;KDY23#..15T..ST..CBU;KDY280..(T2,T3)..(CBU,IV6);KDY231..125T..ST..(CBU,IV3);KDY281,TRY230..(T2,T3)..ST..CBU;KDY28#,TRY230..(T2,T3)..125T..IV3200408-201008

main51001-2E112iKDY231..15T..ST..CBU;KDY231..125T..ST..(CBU,IV3);KDY281,TRY230..(T2,T3)..ST..CBU;KDY281,TRY230..(T2,T3)..125T..IV3201008-201505

main51001-2E120iLY230,280..TW1,TW3200107-200408

main51001-2E130iRZY230,TRY230..TW1,TW3200107-200408

sub91672-01445

sub94622-11400

main51001-2E131iTRY230..(TW1,TW3)..IV3200408-200505

main51001-2E132iKDY231,281,TRY230..(TW1,TW3)..CBU201008-201505

main51001-2E140iLY230,280..(15T,175T)..WT..DSL200107-200408

main51001-2E150iRZY230,TRY230..15T..WT200107-200408

sub91672-01445

sub94622-11400

main51001-2E151iKDY230,280,TRY230..15T..WT..IV3200408-200505

main51001-2E152iKDY231,TRY230..15T..WT..CBU201008-201505

main51001-2E160iLY230,280..(125T,12T)..WT200107-200408

main51001-2E170iRZY230,TRY230..125T..WT200107-200408

sub91672-01445

sub94622-11400

main51001-2E171iKDY23#,280,TRY230..125T..WT..CBU200408-201008

main51001-2E172iKDY231,TRY230..125T..WT..CBU201008-201505

main51001-2E200iLY230,280,RZY231,281..LPG200107-200408

sub91672-01445

sub94622-11400

main51001-2E201iRZY231,281200408-200504

main51001-2E202iRZY231,281,TRY231,281200505-201008

main51001-2E203iTRY231,281201008

main51001-2E231iKDY24#,290200408-201008

main51001-2E232iKDY241201008

main51001-2E300iLY240,290200107-200408

main51001-2E310iLY230,280..IV6200107-200408

main51001-2E370iLY220..WT200107-200408

main51001-2E380iTRY220..WT200308-200408

sub91672-01445

sub94622-11400

main51001-2E381iKDY220,TRY220..WT..IV3200408-200505

main51001-2E382iKDY221,TRY220..WT..CBU201008-201505

main51001-2E391iKDY24#,290200408-201008

main51001-2E392iKDY241201008

main51001-2E410iLY230,280..(15T,175T)..WT..DSL200107-200408

main51001-2E420iTRY230..15T..WT200308-200408

sub91672-01445

sub94622-11400

main51001-2E421iKDY230,280,TRY230..15T..WT..IV3200408-200505

main51001-2E422iKDY231,TRY230..15T..WT..CBU201008-201505

main51001-2E430iLY230,280..(125T,12T)..WT200107-200408

main51001-2E440iTRY230..125T..WT200308-200408

sub91672-01445

sub94622-11400

main51001-2E441iKDY230,280,TRY230..125T..WT..IV3200408-200505

main51001-2E442iKDY231,TRY230..125T..WT..CBU201008-201505

main51001-2E470iLY230,280,RZY231,281..LPG200107-200408

sub91672-01445

sub94622-11400

main51001-2E471iRZY231,281200408-200504

main51001-2E472iRZY231,281,TRY231,281200505-201008

main51001-2E473iTRY231,281201008

main51001-2E480iKDY22#,TRY220..1T..IV3200505-201008

main51001-2E481iKDY221,TRY220..1T..IV3201008

main51001-2E490iKDY22#,TRY220..WT..IV3200505-201008

main51001-2E491iKDY221,TRY220..WT..CBU201505

main51001-2E500iLY240,290200107-200408

main51001-2E620iKDY22#,TRY220..WT..IV3200505-201008

main51001-2E621iKDY221,TRY220..WT..IV3201008

main51001-2E630iKDY23#,28#,TRY230..15T..ST..IV3200505-201008

main51001-2E631iKDY231,281,TRY230..15T..ST..IV3201008

main51001-2E640iTRY230..(TW1,TW3)..IV3200505-201008

main51001-2E641iTRY230..(TW1,TW3)..IV3201008

main51001-2E650iKDY23#,280,TRY230..125T..WT..IV3200505-201008

main51001-2E651iKDY231,TRY230..TB..125T..CBU201505

main51003-25430iTRY230..IV6200308-200408

sub91672-01445

sub94622-11400

main51003-25431iKDY23#,28#,TRY230..IV6200408-201008

main51003-25432iKDY231,281,TRY230..IV6201008-201505

51101RAIL, FRONT FRAME SIDE, RH

main51101-25020iRZY220,230..(T2,T3)..ST..(CBU,IV3)200108

51102RAIL, FRONT FRAME SIDE, LH

main51102-25020iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51103REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT RH

main51103-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51104REINFORCEMENT SUB-ASSY, INNER CHANNEL, FRONT LH

main51103-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51105RAIL SUB-ASSY, CENTER FRAME, RH

main51105-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,TRY220,230..DCR,DSL,EFI200107

main51105-25020iLY230,280,RZY231,281,TRY231,281..LPG200107

51106RAIL SUB-ASSY, CENTER FRAME, LH

main51106-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51115RAIL, FRAME SIDE, REAR RH

main51115-25080iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

main51115-25090iRZY220..125T..ST200108

main51115-25100iRZY231,281200505

main51115-25110iKDY24#,290,LY240,290200107

main51115-25120iLY230,280,RZY231,281..LPG200107-200505

51116RAIL, FRAME SIDE, REAR LH

main51116-25020iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

main51116-25030iRZY220..125T..ST200108

main51116-25040iRZY231,281200505

main51116-25050iKDY24#,290,LY240,290200107

main51116-25060iLY230,280,RZY231,281..LPG200107-200505

51171AREINFORCEMENT, SIDE RAIL REAR HOOK

main51171-25020iLY230,280..LPG200107-200308

51175REINFORCEMENT, SIDE RAIL, NO.3 RH

main51015-25040iKDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT200107

main51175-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51188WEIGHT, FRAME, REAR A

main51188-25020iKDY271..CBU;KDY221..(T3,TW1)..TS..CBU200709

main51188-25030iKDY221..ST..CBU;TRY220..T3..CBU201610

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-25100iRZY220..WT200107-200111

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-25150iRZY220,230..(T2,T3)..ST..(CBU,IV3)200108

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-25130iKDY23#,28#,LY230,280,TRY230..ST..IV6200107

main51206-25140iKDY231..WT..IV6201812-201909

main51206-25150iRZY230..15T..WT;KDY22#,23#,24#,280,290,LY220,230,240,280,290,RZY231,281,TRY220,23#,281..WT200107-202109

main51206-25160iKDY221,231,271,281,TRY220,230..ST202110

main51206-25170iKDY221,231,241,TRY220,23#,281..WT202110

51210AMEMBER ASSY, FRONT SUSPENSION

main51210-25010iKDY22#,23#,24#,LY220,230,240,RZY220,23#,TRY220,23#200107-200803

main51210-25011iKDY221,231,241,TRY220,23#200804-202111

sub51210-25040

main51210-25020iKDY27#,28#,290,LY270,280,290,RZY281,TRY281200107-200803

main51210-25021iKDY271,281,TRY281200804

sub51210-25060

51291CROSSMEMBER, FRAME, REAR

main51291-25030iKDY221..T3..TB;KDY280..TB..IV3;TRY220..WT..IV3;RZY231,281,TRY231,281;KDY231,TRY230..TS..125T..WT;KDY23#,TRY220,230..(TW1,TW2,TW4)..IV3;KDY22#,23#,281,TRY230..(15T,1200505

51397ABRACKET, EXHAUST PIPE CLAMP, NO.3

main51397-25030iRZY230..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-25190iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-25090iRZY220,230..(T2,T3)..ST..(CBU,IV3)200108

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51505ASUPPORT SUB-ASSY, UPPER CONTROL ARM

main51505-25020iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51506ASUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-25020iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51623BRACKET, FRONT SPRING BOUND STOPPER, RH

main51603-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51624BRACKET, FRONT SPRING BOUND STOPPER, LH

main51604-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51631STOPPER, FRONT SUSPENSION REBOUND, RH

main51631-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51632STOPPER, FRONT SUSPENSION REBOUND, LH

main51631-25010iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY231,281,TRY220,23#,281200107

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-25050iKDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..(T2,T3,T4)..(DCR,DSL,EFI)200107-200704

sub51480-25010

sub51480-25020

sub51480-25030

sub90467-09189

sub91651-B0814

main51705-25051iKDY22#,23#,27#,28#,TRY220,23#,281..T2,T3,T4200704-200812

sub51705-25090

main51705-25052iKDY221,231,271,281,TRY220,23#,281..T2,T3,T4200812-202111

main51705-25060iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN200107-200812

sub51705-25100

main51705-25061iKDY221,231,241,271,281,TRY220,230..TW1,TW2,TW3,TW4,VAN200812

main51705-25070iLY230,280,RZY231,281..LPG200107-200708

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-25060×6iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY22#,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281200107

51744BBRACKET, REAR BODY MOUNTING, NO.3 RH

main51744-25030iRZY230..TW1,TW3;KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4200107-202109

main51744-25040iKDY231,271,281,TRY230..TW1,TW2,TW3,TW4202110

51745BBRACKET, REAR BODY MOUNTING, NO.3 LH

main51745-25040iRZY230..TW1,TW3;KDY22#,23#,27#,28#,LY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4200107-202109

main51745-25050iKDY231,271,281,TRY230..TW1,TW2,TW3,TW4202110

51751BBRACKET, BODY SUPPORT, NO.1 RH

main51751-25020iRZY230..IV6;RZY230..15T..WT;KDY22#,23#,27#,28#,LY220,230,270,280,RZY231,281,TRY220,23#,281..T2,T3,T4200107

51752BRACKET, BODY SUPPORT, NO.1 LH

main51752-25010iRZY220,230..(T2,T3)..ST..(CBU,IV3)200108

51961EHOOK, FRONT

main51961-25040iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;LY220,230,240,270,280,290,TRY220,230..DSL,EFI200107-200408

main51961-25041iKDY22#,23#,24#,27#,28#,290,TRY220,23#,281200408-202111

main51961-25060iLY230,280,RZY231,281..LPG200107-200408

main51961-25061iRZY231,281200408-200708

51963FHOOK, TRANSPORT

main51963-25010×2iRZY220,230..(T2,T3)..ST..(CBU,IV3)200108

51965CHOOK, REAR

main51961-36040iLY230,280,RZY231,281..LPG200107-200408

main51965-25030iKDY24#,290,LY240,290200107

main51965-25040iKDY221,231,271,281,TRY220,23#,281..CBU,IV3201008

main51965-26031iRZY230..15T..WT;RZY230..(T3,TW1,TW3)..TS;KDY231,281,TRY23#,281..CBU,IV3;KDY22#,230,27#,280,LY220,230,270,280,TRY220..DCR,DSL,EFI200107-201008

66471FREINFORCEMENT, FRAME U BOLT

main66471-25020iKDY221,271..ST..CBU200709

main66472-25010iKDY221,271..ST..CBU200709

9011714007

main90117-14007

9011912214

main90119-12214

9011912365

main90119-12365

9011914117

main90119-14117

9017014012

main90170-14012

9111281445

main91112-81445

9111281460

main91112-81460

9151261420

main91512-61420

91552F1025

main91552-F1025

9164281030

main91642-81030

9167201445

main91672-01445

9413001042

main94130-01042

9413001402

main94130-01402

9415181000

main94151-81000

9462211400

main94622-11400

9462241400

main94622-41400

64 parts on this diagram · 3 diagrams in section
