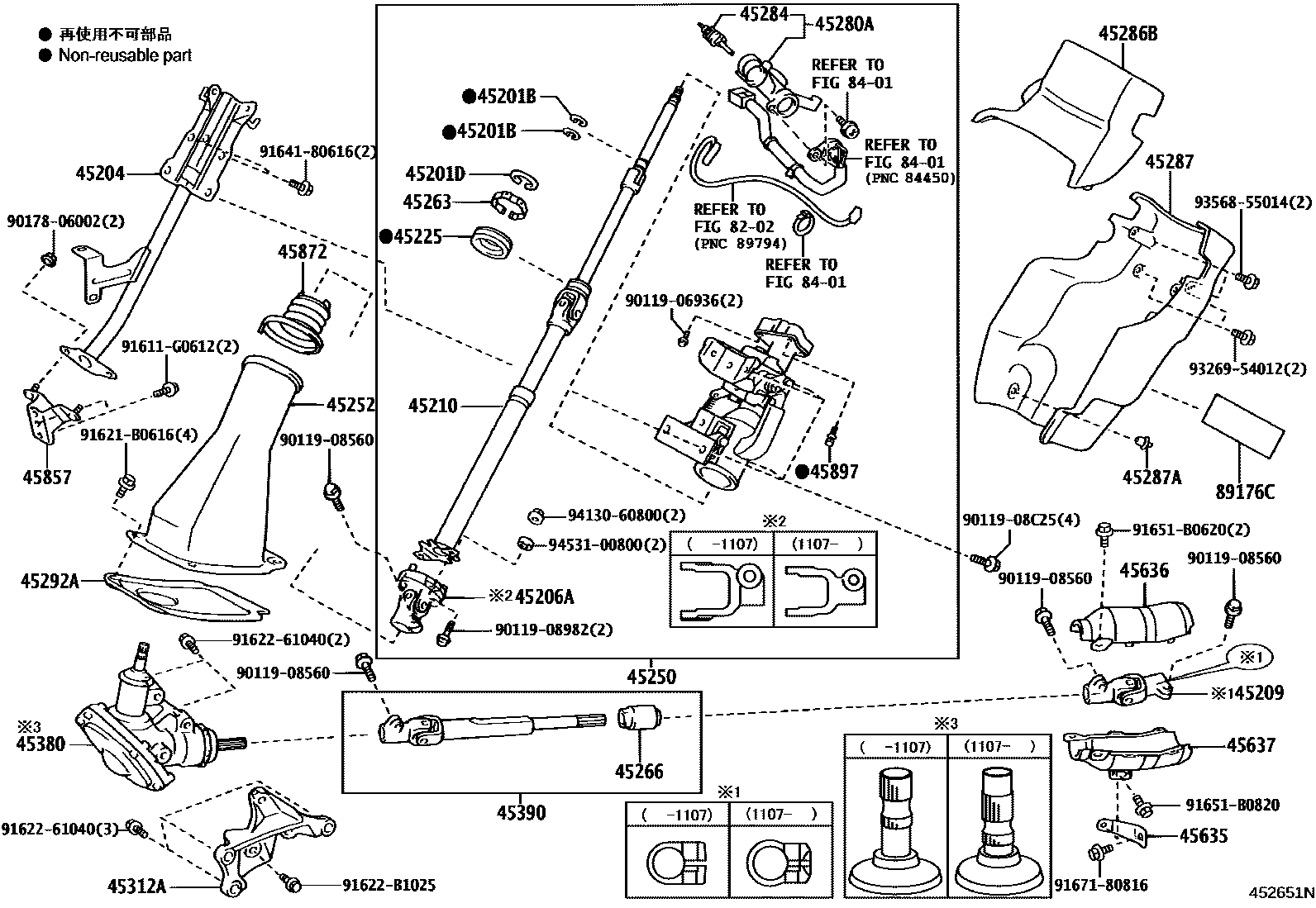

STEERING COLUMN & SHAFT

0001 1 0002 1

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269×2iLY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL200107-200408

45201DRING(FOR STEERING MAIN SHAFT)

main90520-28065iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-37130iLY220..15T,1T;LY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY240,270,280,290..DSL;LY230..TB..(12T,15T,175T)..DSL200107-200408

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-25020iKDY221,231,241,271,281,TRY220,23#,281201107-201610

main45206-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201107

main45206-37050iKDY221,231,241,271,281,TRY220,23#,281201610-202111

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-14020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201107

main45209-25030iKDY221,231,241,271,281,TRY220,23#,281201107-202111

45210SHAFT ASSY, STEERING MAIN

main45210-37090iLY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI200107-200408

main45210-37190iKDY220,230,240,270,280,290,RZY231,281200408-200708

45225BLOCK, BEARING

main45225-26010iLY220..125T..ST;LY230..125T..WT;LY230..(T2,T3,TW3)..TS;LY220,RZY231,281..15T,1T;LY230..TB..(12T,15T,175T)..DSL;LY240,270,280,290,TRY220,230..DSL,EFI200107-200408

main45274-37020iKDY220,230,240,270,280,290,RZY231,281200408-200708

45250COLUMN ASSY, STEERING

main45250-25620iLY220,230,280,RZY220,23#,281,TRY220,230..ATM200107-200407

main45250-25621iKDY221,231,281,TRY220,230..ATM200408-201008

main45250-25660iLY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..MTM200107-200407

main45250-25661iKDY221..TS..MTM;KDY221..TB..CBU;KDY231..T4..MTM..CBU;KDY241,271,281,TRY220,230..MTM;KDY231..(T2,T3,TW2,TW3,TW4)..MTM200408-201008

main45250-25680iKDY221,231,281,TRY220,230..ATM201008-201107

main45250-25690iKDY221,231,241,271,281,TRY220,230..MTM201008-201107

main45250-25700iTRY231,281..ATM201107-201610

main45250-25710iTRY231,281..MTM201107-201610

main45250-25740iKDY221,231,281,TRY220,230..ATM201107-201610

main45250-25750iKDY221,231,241,271,281,TRY220,230..MTM201107-201610

main45250-37E32-C0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

BLACK,TRIM1#

45252TUBE, STEERING COLUMN, LOWER

main45252-37030-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200909

MD.CHARCOAL,TRIM1#

main45252-37031-B0iKDY221,231,241,271,281,TRY220,23#,281200910-201505

MD.CHARCOAL,TRIM1#

main45252-37031-C0iKDY221,231,241,271,281,TRY220,23#,281201505-201610

BLACK,TRIM1#

main45252-37050-C0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

BLACK,TRIM1#

45263RING, STEERING COLUMN, NO.1

main45263-32010iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-37100iKDY221..TS..MTM;KDY221..TB..CBU;KDY231..T4..MTM..CBU;KDY231..(T2,T3,TW2,TW3,TW4)..MTM;KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230200107-201008

main45280-37110iKDY221,231,281,TRY220,230..ATM200107-201008

main45280-37121iKDY221,231,241,271,281,TRY220,230..MTM201008-201610

main45280-37131iKDY221,231,281,TRY220,230..ATM201008-201610

main45280-37140iKDY221,231,241,271,281,TRY220,23#,281..MTM201610

main45280-37150iKDY221,231,281,TRY220,23#,281..ATM201610

45284SHAFT, STEERING LOCK CAM

main45284-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main45284-37020iKDY221,231,241,271,281,TRY220,23#,281201610

45286BCOVER, STEERING COLUMN, UPR

main45286-37080-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200909

MD.CHARCOAL,TRIM1#

main45286-37081-B0iKDY221..TS;KDY221..TB..CBU;KDY231..T4..CBU;KDY231..T4..ATM..IV3;KDY241,271,281,TRY220,230;KDY231..T2,T3,TW2,TW3,TW4200910-201008

MD.CHARCOAL,TRIM1#

main45286-37081-C0iKDY221..TB..IV3;KDY231..T4..MTM..IV3201505-201610

BLACK,TRIM1#

main45286-37120-B0iKDY221,231,241,271,281,TRY220,230201008-201505

MD.CHARCOAL,TRIM1#

main45286-37120-C0iKDY221,231,241,271,281,TRY220,230201505-201610

BLACK,TRIM1#

main45286-37130-C0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-37080-B0iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-200909

MD.CHARCOAL,TRIM1#

main45287-37081-B0iTRY231,281200910-201505

MD.CHARCOAL,TRIM1#

main45287-37081-C0iKDY221..TB..IV3;KDY231..T4..MTM..IV3201505-201610

BLACK,TRIM1#

main45287-37110-B0iKDY221,231,241,271,281,TRY220,230201008-201505

MD.CHARCOAL,TRIM1#

main45287-37110-C0iKDY221,231,241,271,281,TRY220,230201505-201610

BLACK,TRIM1#

main45287-37120-C0iKDY221,231,241,271,281,TRY220,23#,281201610-202111

BLACK,TRIM1#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-07041-B8iKDY220,230,240,270,280,290,RZY231,281200107-200708

MD.CHARCOAL,TRIM1#

main90467-07041-C0iKDY271,281;KDY231,TRY230..TW2..TB;KDY231,TRY230..ST..IV6;KDY221,241,TRY231,281..(T2,T4,VAN)..(03S,TB,TS);KDY231,TRY220,230..(T2,T3,T4,TW1,TW4)..(125T,15T)..(CBU,IV3201505

BLACK,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37030iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45312ABRACKET, STEERING BEVEL GEAR HOUSING

main45312-25190iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45380GEAR ASSY, STEERING BEVEL

main45380-25010iKDY221,231,241,271,281,TRY220,23#,281201107-202111

main45380-37020iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201107

45390SHAFT ASSY, STEERING TORQUE

main45390-25010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202002

main45390-25011iKDY221,231,241,271,281,TRY220,23#,281202003-202111

45635SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR

main45635-25010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

main45636-25010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45637PROTECTOR, INTER LINK JOINT, LWR NO.1

main45637-25010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-202111

45857BRACKET, TILT STEERING COLUMN TUBE, NO.1

main45857-37020iKDY220,230,240,270,280,290,RZY231,281200107-200708

45872COVER, STEERING COLUMN TUBE

main45872-37010iKDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281200107-201610

main45872-37020iKDY221,231,241,271,281,TRY220,23#,281201610-202111

45897BOLT, STEERING LOCK SET

main45897-12030iLY220,230,240,270,280,290,RZY220,230200107-200202

main45897-25010iTRY231,281..MTM200202-201107

main45897-E0020×2iKDY221,231,241,271,281,TRY220,23#,281201610

8202

8401

89176CLABEL, AIRBAG SENSOR COVER CAUTION

main89176-26020iLY230..TW1;LY220..125T..WT;LY230..TB..125T..ST;LY230,280,RZY220,230..EFI,LPG200107-200308

9011906936

main90119-06936

9011908560

main90119-08560

9011908982

main90119-08982

9011908C25

main90119-08C25

9017806002

main90178-06002

91611G0612

main91611-G0612

91621B0616

main91621-B0616

9162261040

main91622-61040

91622B1025

main91622-B1025

9164180616

main91641-80616

91651B0620

main91651-B0620

91651B0820

main91651-B0820

9167180816

main91671-80816

9326954012

main93269-54012

9356855014

main93568-55014

9413060800

main94130-60800

9453100800

main94531-00800

46 parts on this diagram · 2 diagrams in section
