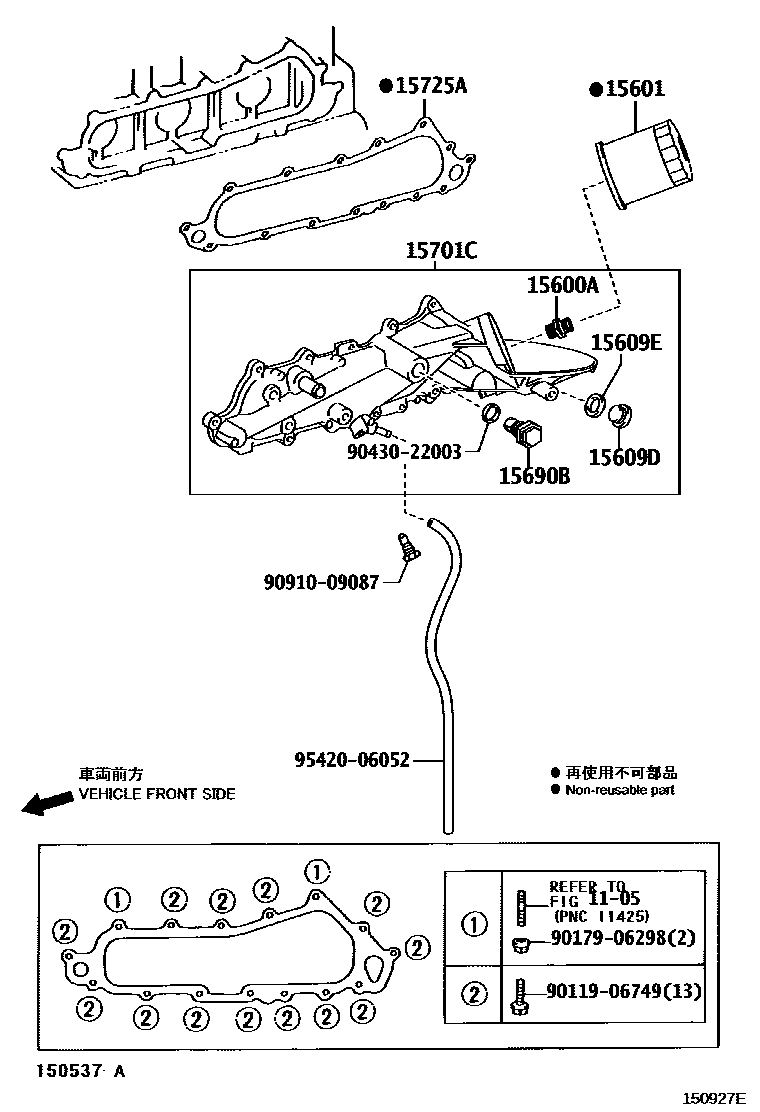

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54021i5L..LY220,230,240,270,280,290200107-200408

main90404-19002i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

main90404-19015i1TRFE..TRY220,230200308-200712

main90404-19017i3RZFPE..LY230,280200107-200708

15601FILTER SUB-ASSY, OIL

main90915-20003i3RZFPE..LY230,280200107-202009

sub90915-20005

main90915-20003i1TRFE..TRY220,230200308-200712

sub90915-20005

main90915-20005i1KDFTV..KDY221,231,241,271,281202010

main90915-30002i5L..LY220,230,240,270,280,290200107-200408

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54072i5L..LY220,230,240,270,280,290200107-200408

main15609-75010i1RZE..RZY220,230200107-200308

sub15609-75050

sub90404-19015

main15609-75030i3RZFPE..LY230,280200107-200708

main15609-75050i1TRFE..TRY220,230200308-200712

main15609-75080i1TR#..TRY220,23#,281200701

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-16023i1TRFE..TRY220,230200308-200712

main90341-16023i1TR#..TRY220,23#,281200701

main90341-20002i1KDFTV..KDY221,231,241,271,281200408-202106

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408-201510

main90430-16009i1TR#..TRY220,23#,281200701

main90430-16009i1TRFE..TRY220,230200308-200712

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408-201101

sub15690-64011

main15690-64011i1KDFTV..KDY221,231,241,271,281201101

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30060i2KDFTV..KDY220,230,240,270,280,290200408-200708

main15701-30100i1KDFTV..KDY221,231,241,271,281200709-201008

main15701-30110i1KDFTV..KDY221,231,241,271,281201008-201509

sub15701-30111

main15701-30111i1KDFTV..KDY221,231,241,271,281201510

15725AGASKET, OIL COOLER COVER

main15725-67010i1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290200408

9011906749

main90119-06749

9017906298

main90179-06298

9043022003

main90430-22003

9091009087

main90910-09087

9542006052

main95420-06052

14 parts on this diagram · 8 diagrams in section
