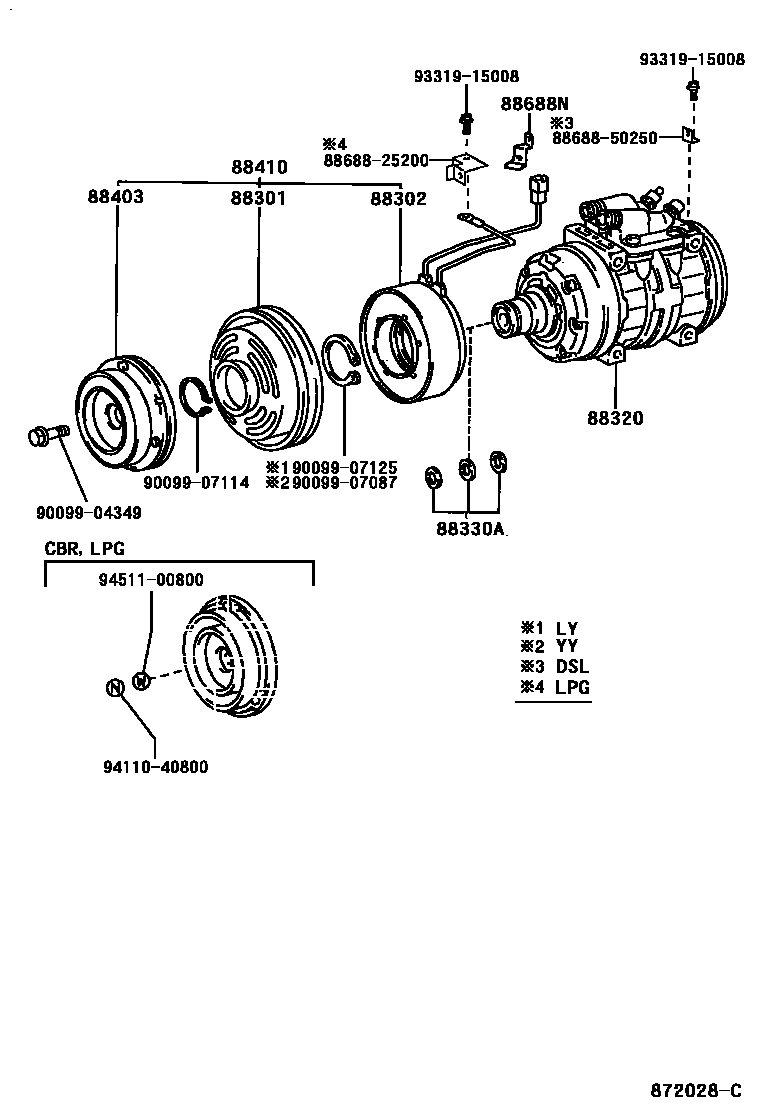

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1������ 0004 1������

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22070iLY15#..T3..IV3;LY16#..T3..15T..DSL..IV3;LY102,202..TS..MTM..(125,15T)..IV3;LY12#,13#,212..(T2,T4)..MTM..15T..IV3199610-200107

main88412-22240iLY16#,YY101,121,131,201,211..CBR,LPG199505-200107

main88412-25030iLY10#,202..TS..MTM..(125,15T)..IV3;LY12#,13#,201,21#..(T2,T4)..MTM..15T..IV3199505-200107

main88412-26050iLY101..MTM..125..IV3199610-199905

main88412-30430iLY121..125;LY121..15T..CBU;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY131..(T3,TW2)..MTM..IV3;LY101,131,151,161..CBU,IV5;LY101,121..ST..(15T,1T)..199505-200107

sub88412-2A060

main88412-30430iLY151..T3..IV3;LY101..MTM..125..IV3;LY161..T3..15T..DSL..IV3;LY121,131..T2..MTM..15T..IV3199610-199905

sub88412-2A060

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22280iLY121..125;LY121..15T..CBU;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY131..(T3,TW2)..MTM..IV3;LY101,131,151,161..CBU,IV5;LY101,121..ST..(15T,1T)..199505-200107

main88411-22280iLY151..T3..IV3;LY101..MTM..125..IV3;LY161..T3..15T..DSL..IV3;LY121,131..T2..MTM..15T..IV3199610-199905

main88411-22300iLY162,YY101,121,131..CBR,LPG199505-200107

main88411-22310iLY151..T3..IV3;LY161..T3..15T..IV3;LY121,131..T2..MTM..15T..IV3199610-199708

sub88411-2A030

main88411-25040iLY10#,202..TS..MTM..(125,15T)..IV3;LY12#,13#,201,21#..(T2,T4)..MTM..15T..IV3199505-200107

main88411-2A030iLY15#..T3..IV3;LY16#..T3..15T..DSL..IV3;LY102,202..TS..MTM..(125,15T)..IV3;LY12#,13#,212..(T2,T4)..MTM..15T..IV3199708-200107

main88411-38010iLY101..MTM..125..IV3199610-199905

88320COMPRESSOR ASSY, COOLER

main88320-22700iYY211..LPG199610-199905

sub88320-43H90

main88320-25060iLY10#,202..TS..MTM..(125,15T)..IV3;LY12#,13#,201,21#..(T2,T4)..MTM..15T..IV3199505-200107

sub88320-27H90

main88320-26470iYY201,211199505-200107

sub88320-27H91

main88320-26480iLY211..ATM199505-199905

sub88320-35H92

main88320-26480iLY121,201..125,1T;LY151,161..T2..IV3;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY211..(T3,TW2)..MTM;LY211..(T2,T4)..MTM..CBU;LY101,131,151,161..CB199505-200107

sub88320-35H92

main88320-26570iLY15#..T3..IV3;LY16#..T3..15T..DSL..IV3;LY12#,13#,212..MTM..WT..15T..IV3;LY10#,202..TS..MTM..(125,15T)..IV3199708-200107

main88320-26570iLY101..MTM..125..IV3;LY121,131..MTM..WT..15T..IV3199610-199708

main88320-26580iLY15#..T3..IV3;LY16#..T3..15T..DSL..IV3;LY102,202..TS..MTM..(125,15T)..IV3;LY12#,13#,212..(T2,T4)..MTM..15T..IV3199610-200107

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iYY211..LPG;LY161,YY121,131..CBR,LPG199610-200107

main88335-14020iLY101..MTM..125..IV3;LY121,131..T2..MTM..15T..IV3199610-199905

main88335-14020iLY121..125;LY111,201,211;LY121..15T..CBU;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY101,131,151,161..CBU;LY131..(T3,TW2)..MTM..IV3;LY101,121..ST..199505-200107

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iLY16#,YY101,121,131,201,211..CBR,LPG199505-200107

main88403-30290iLY151..T3..IV3;LY161..T3..15T..IV3;LY101..MTM..125..IV3;LY121,131..T2..MTM..15T..IV3199610-199905

main88403-30290iLY121..125;LY111,201,211;LY121..15T..CBU;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY101,131,151,161..CBU;LY131..(T3,TW2)..MTM..IV3;LY101,121..ST..199505-200107

main88403-36030iLY102,202..TS..MTM..(125,15T)..IV3;LY122,132,212..(T2,T4)..MTM..15T..IV3199905-200107

88410CLUTCH ASSY, MAGNET

main88410-22470iLY16#,YY101,121,131,201,211..CBR,LPG199505-200107

main88410-25080iLY101..MTM..125..IV3;LY121,131,201,211..(T2,T4)..MTM..15T..IV3199505-200107

main88410-25090iLY151..T3..IV3;LY101..MTM..125..IV3;LY161..T3..15T..DSL..IV3;LY121,131,201,211..(T2,T4)..MTM..15T..IV3199505-199905

main88410-25090iLY211..T3,TW2;LY121,201..125,1T;LY151,161..T2..IV3;LY101,131..ATM..IV3;LY161..T3..125..IV3;LY121,201..15T..CBU;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,131,151199505-200107

main88410-26190iLY101..MTM..125..IV3199610-199905

main88410-60330iLY151..T3..IV3;LY161..T3..15T..IV3199610-200107

88688NBRACKET, COOLER

main88569-60070iLY101..MTM..125..IV3199610-199612

main88569-60070iLY101,111,151,161,201,211..DSL199612-199905

main88688-2D770iLY15#..T3..IV3;LY16#..T3..15T..DSL..IV3;LY102,202..TS..MTM..(125,15T)..IV3;LY12#,13#,212..(T2,T4)..MTM..15T..IV3199610

8868825200BRACKET, COOLER DIAPHRAGM

main88688-25200

8868850250BRACKET, COOLER DIAPHRAGM

main88688-50250

9009904349

main90099-04349

9009907087

main90099-07087

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

16 parts on this diagram · 4 diagrams in section
