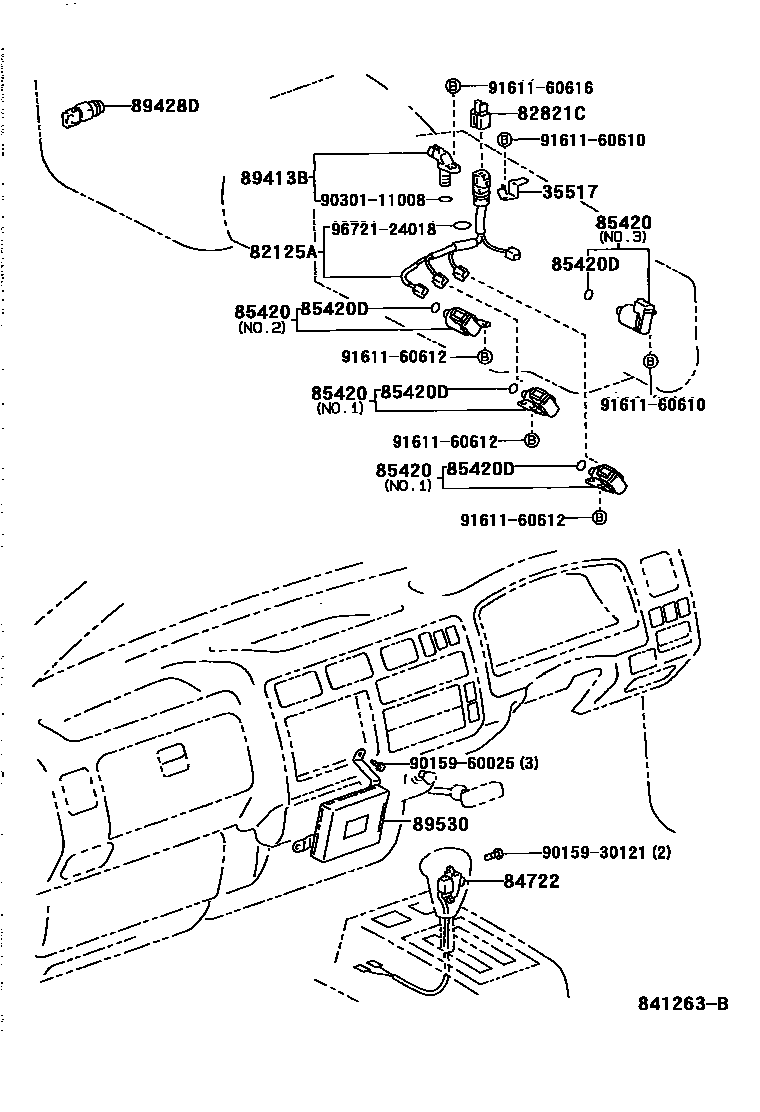

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-26010iLY161..ATM199708-199905

main35517-37010iLY13#,21#..ATM199505

82125AWIRE, TRANSMISSION

main82125-28010iLY10#,11#,16#..ATM199610

main82125-36010iLY13#,21#..ATM199505

82821CCOVER, CONNECTOR

main82821-37040iLY13#,21#..ATM199508

84722SWITCH, TRANSMISSION CONTROL

main84722-25010-B0iLY10#,11#,13#,16#,21#,YY211..ATM199505

BLUISH GRAY,TRIM1#

sub84722-14080

85420SOLENOID ASSY, TRANSMISSION

main85420-30050iLY10#,11#,16#..ATM199610

SHIFT

main85420-30070iLY10#,11#,16#..ATM199610

main85420-36010iLY131,211..ATM199505-199712

main85420-36020iLY131,211..ATM199505-199712

main85420-36030iLY131,211..ATM199505-199712

main85420-60020iLY13#,21#..ATM199712

sub85420-60050

main85420-60030iLY13#,21#..ATM199712

sub85420-60060

main85420-60040iLY13#,21#..ATM199712

sub85420-60070

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iLY13#,21#..ATM199505

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iLY13#,21#..ATM199505

sub89413-32011

89428DSWITCH, TEMPERATURE, NO.2

main89428-60090iLY211..ATM199505-199610

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-25010iLY131,211..ATM199505-199905

main89530-25020iLY101,111,161..ATM199610-199905

main89530-25040iLY132,212..ATM199905

main89530-25050iLY102,112,162..ATM199905

9015930121

main90159-30121

9015960025

main90159-60025

9030111008

main90301-11008

9161160610

main91611-60610

9161160612

main91611-60612

9161160616

main91611-60616

9672124018

main96721-24018

16 parts on this diagram · 3 diagrams in section
