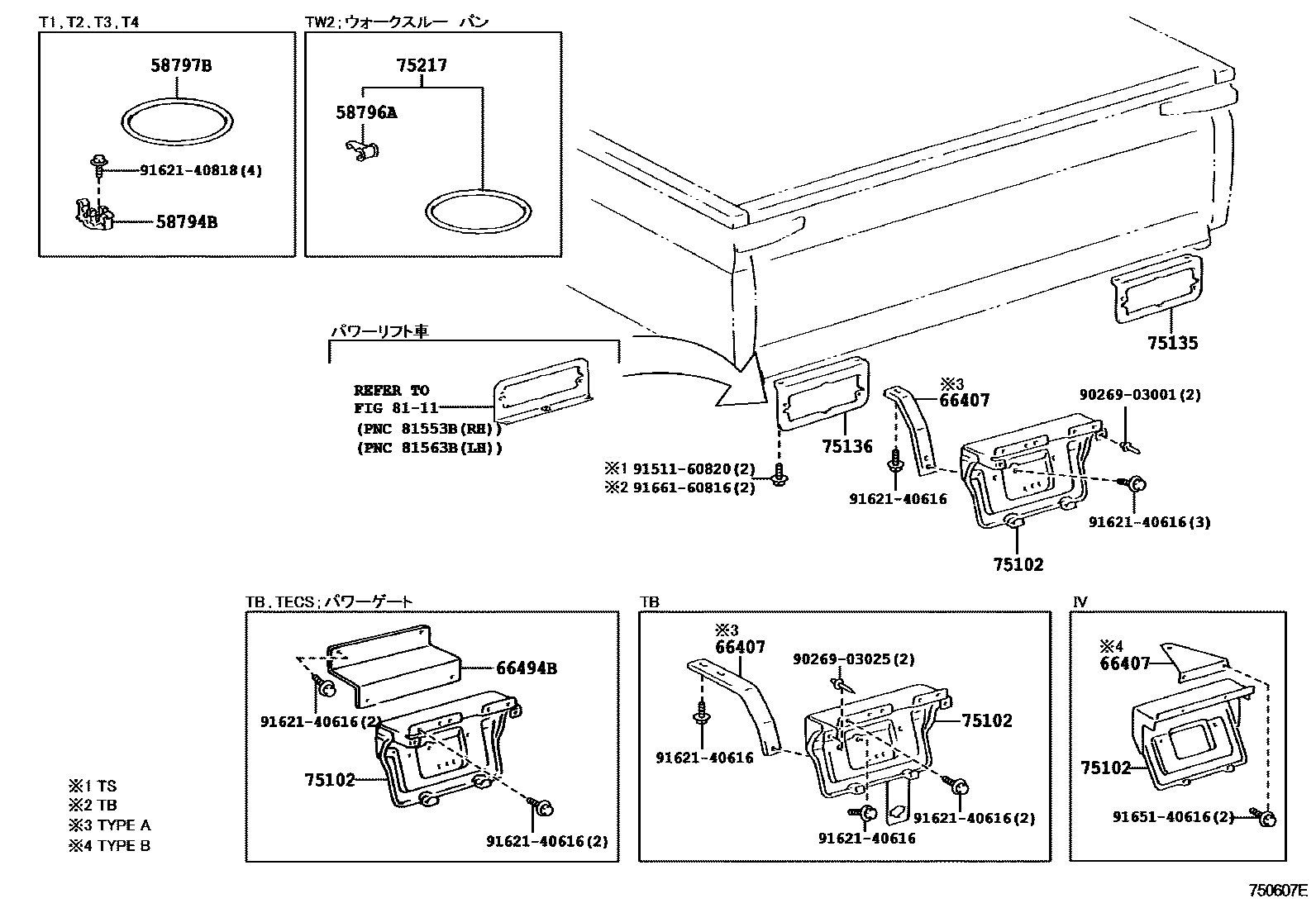

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

58794BSUPPORT, JACK HANDLE

main58794-37020iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4199505

58796AHOOK, JACK CLAMP

main58796-20012iLY132..125..CBU;LY132..ST..125..IV3;LY132,212..(T2,TW2)..WT..IV3;LY10#,11#,131,15#,16#,201,21#,YY101,131,201,211..TW1,TW2199505

main58796-20012iLY131,211..T2..WT..IV3199505-199905

58797BBAND, JACK CLAMP

main58797-37020iLY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,T4199505

66407STAY SUB-ASSY, LICENSE PLATE BRACKET

main66407-95017iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

sub66407-25050

main66407-95020iLY13#,202,211,YY131,211..TS..15T;LY10#,11#,12#,15#,16#,201,YY101,121,201..T2..TS..CBU199505

main66407-95020iLY201,YY201..WT199805

main66407-95A02iLY10#,11#,15#,16#,YY101..(T3,TW1)..TS..CBU199610

sub66407-25040

main66493-25010iLY202,212..T3;LY201,211,YY201,211..T3..CBU199505

main66493-25010iLY201,211,YY201,211..T3199805

main66493-25020iYY211..LPG;YY101..T2..IV3;LY10#..T2..ATM..IV3199505

main66493-25020iLY21#,YY211..T2..(CBR,DSL)199805

main66493-25030iLY15#..TB199610

main66495-25010iLY201,211,YY201,211..IV3199505-199808

sub66495-25011

66494BPLATE, LICENSE BRACKET

main66494-25020iLY111,161..T2..TB..CBU;LY211..TB..MTM..WT..15T..CBU;LY131,YY131,211..T2..TB..WT..CBU199505

main66494-25020iLY132..TB..WT..15T..CBU;LY112,162,212..(T2,T4)..TB..MTM..CBU199905

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-95019iLY15#,16#..TB;LY10#,11#..T3..TB;LY15#..(T2,TW2)..TS;LY12#,13#,20#,21#,YY121,131,201,211;LY10#,11#,16#,YY101..(T1,T2,TW2)..(125,1T);LY10#,11#,15#,16#,YY101..T3..125.199505

sub66490-25030

main66490-95A06iLY10#,11#,15#,16#,YY101..(T3,TW1)..TS..CBU199610

sub66490-25040

75135BRACKET, COMBINATION REAR LAMP, RH

main75135-25040iLY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU199505-199805

sub75136-25030

main75135-25040iYY211..LPG;YY101..T2..IV3;LY101..T2..ATM..IV3199505

sub75136-25030

main75135-95A02iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T2,T3,TW1)..TS..CBU199505-199805

sub75136-25010

75136BRACKET, COMBINATION REAR LAMP, LH

main75135-25040iLY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU199505-199805

sub75136-25030

main75135-25040iYY211..LPG;YY101..T2..IV3;LY101..T2..ATM..IV3199505

sub75136-25030

main75135-95A02iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T2,T3,TW1)..TS..CBU199505-199805

sub75136-25010

75217BAND, TOOL BAG

main58705-95A01iLY131,211..T2..WT..IV3199505-199905

main58705-95A01iLY132..125..CBU;LY132..ST..125..IV3;LY132,212..(T2,TW2)..WT..IV3;LY10#,11#,131,15#,16#,201,21#,YY101,131,201,211..TW1,TW2199505

8111

9026903001

main90269-03001

9026903025

main90269-03025

9151160820

main91511-60820

9162140616

main91621-40616

9162140818

main91621-40818

9165140616

main91651-40616

9166160816

main91661-60816

17 parts on this diagram · 2 diagrams in section
