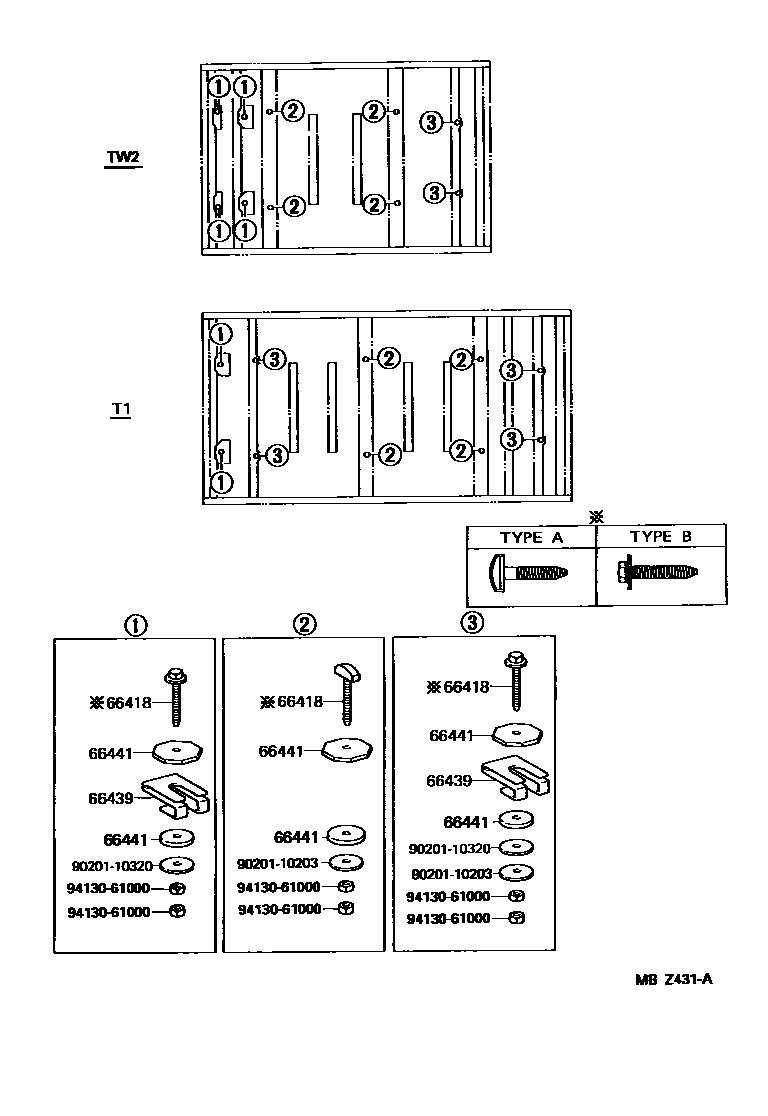

REAR BODY MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0010 1 0011 1

66418BOLT, MOUNTING

main66418-95400×6iLY201,211,YY201,211..T2..TS..CBU199505-199610

main66461-92200×2iLY201,211,YY201,211..T3..CBU199505-199610

L=322

main66462-92200×2iLY201,211,YY201,211..T3..CBU199505-199610

L=261

main66463-92200×2iLY201,211,YY201,211..T3..CBU199505-199610

L=282

main90109-10156×8iLY102..T2..ATM..IV3;LY21#,YY211..T2..(CBR,DSL);LY10#,11#,21#,YY211..TB..CBU;LY12#,13#,15#,16#,YY121,131..T2..TB..CBU199805-200107

main90119-10102×8iLY11#..T2..TS..MTM..CBU;LY10#,YY101..(T2,TW2)..TS..CBU199610-200107

main90119-10490×8iLY10#,11#,YY101..T3..TS..CBU;LY12#,13#,15#,16#,YY121,131..(T2,T3)..TS..CBU199610-200107

66439SHIM, SUPPORT

main66439-95400×3iLY201,211,YY201,211..(T1,T2)..TS..CBU199505-199610

66441SHIM, MOUNTING, NO.1

main90564-12013×10iLY101,111,YY101..T3..TS..CBU;LY121,131,151,161,201,211,YY121,131,201,211..(T1,T2,T3)..TS..CBU199505-199805

main90564-15142×8iLY101,YY101..1T..CBU;LY131,211,YY131,211..WT..125..CBU199505-199807

9020110203

main90201-10203

9020110320

main90201-10320

9413061000

main94130-61000

6 parts on this diagram · 9 diagrams in section
