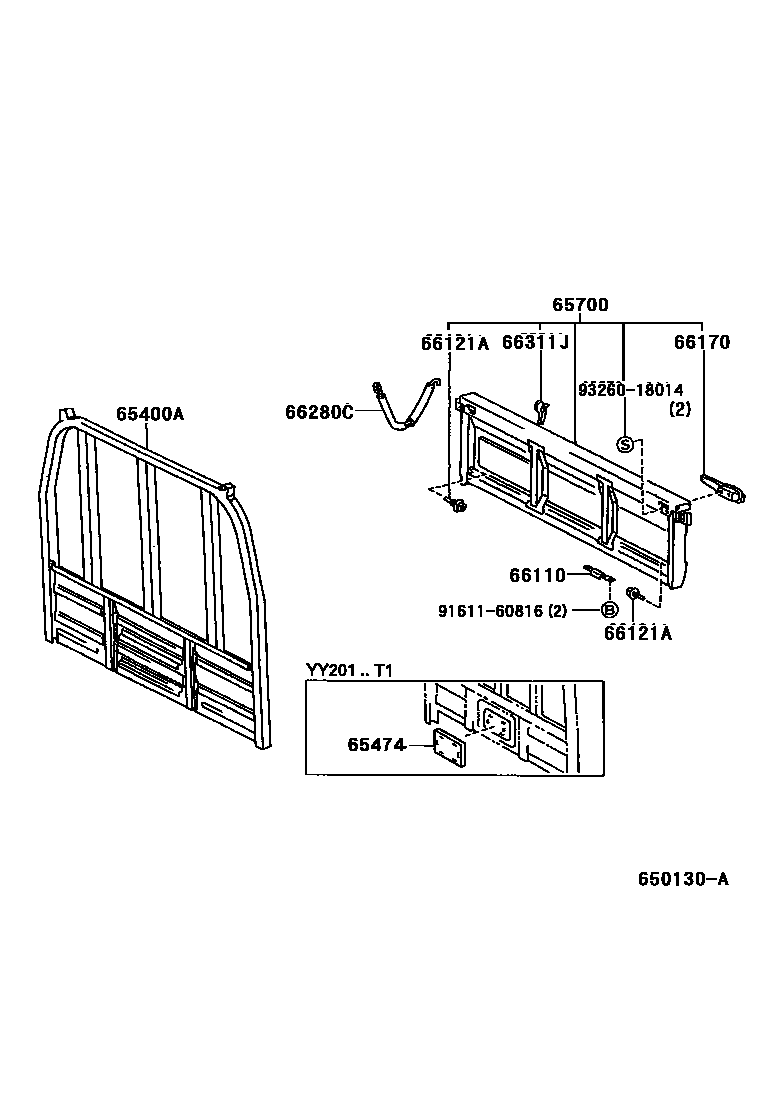

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1 0004 1

65400AGUARD ASSY, REAR BODY

main65400-25020iYY201..WT199505-199610

main65400-25041iYY201..T1199505-199610

main65400-25051iLY201..T1199505-199610

main65400-25060iLY20#..WT199505-199610

main65400-25140iLY201,YY201..1T..CBU199505-199610

main65400-25150iLY211,YY211..ST..125..CBU199505-199610

main65400-25210iLY122,132,162,YY121,131..T3..15T..CBU199610-200006

main65400-25230iLY20#,21#,YY201,211..T3199505-199610

main65400-25240iLY21#..T4..CBU199505

main65400-25250iLY201,211..T2..TB..CBU199505-199610

main65400-25260iLY211,YY211..WT..125..CBU199505-199610

main65400-25270iYY201,211..T2..TB..CBU199505-199610

main65400-25280iLY15#..T3..TB199610

main65400-25290iYY101..T2..IV3;LY101..T2..ATM..IV3199610

main65400-25300iLY11#..T2..TB199610

main65400-25310iLY15#..T2..TB199610

main65400-25320iLY10#..T3..TB199610

main65400-25330iLY11#..T3..TB199610

main65400-25340iLY132,162,YY131..T2..ST..15T..CBU199610-200006

main65400-25350iLY13#,YY131..WT..125..CBU199610

main65400-25360iYY211..LPG199505

main65400-25370iLY12#,13#,16#..T3..15T..CBU199610-200006

sub65400-25210

main65400-25380iLY13#,16#..T2..ST..15T..CBU199610-200006

sub65400-25340

main65400-25390iYY121,131..TS..WT..CBU199610

main65400-25400iLY12#,13#..TS..WT..CBU199610

main65400-25410iLY10#,YY101..1T..CBU199610

main65400-25420iLY10#,YY101..T1199610

main65400-25430iLY13#,15#,16#,YY131..TW2..ST..CBU199610

main65400-25440iLY122,132,162,YY121,131..TB..WT..15T..CBU199610-200006

main65400-25450iLY12#,13#,162..TB..WT..15T..CBU199610-200006

sub65400-25440

main65400-26011iLY10#,11#,YY101..T2..TS..CBU199610

main65400-26021iLY11#..1T199610

main65400-26032iLY16#..T3..125..CBU199610

main65400-26041iLY16#..1T199610

main65400-26080iLY10#,11#,YY101..T3..TS..CBU199610

main65400-26091iLY15#..T3..TS..CBU199610

main65400-95A15iLY15#,16#..T2..TS..CBU199610

65474INSULATOR, HEADER

main65474-25010iYY201..WT199505-199610

main65474-25030iYY211..LPG199505

main65474-25030iYY201,211..(T2,T4)..TB..CBU199505-199805

main65474-25060iYY121,131..TB..15T..CBU199610

main65474-25070iYY121,131..TS..WT..CBU199610

65700GATE ASSY, REAR BODY TAIL

main65700-25010iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

main65700-25030iYY211..LPG;YY101..T2..IV3;LY101..T2..ATM..IV3199505-199911

sub65700-37110

main65700-25030iLY152,162..TB..CBU199911

sub65700-37110

main65700-26010iLY13#,20#,YY131,201..TS..15T;LY10#,11#,12#,15#,16#,YY101,121..(T2,T3,TW1)..TS..CBU199505-199805

main65700-37110iYY101..T2..IV3;LY102..T2..ATM..IV3;LY122,132,212,YY121,131,211..TB..CBU;LY102,112,202,212,YY201,211..(T2,T3)..TB199911

66110HINGE ASSY, TAIL GATE

main66110-26010iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T2,T3,TW1)..TS..CBU199505-199805

main66110-37010iLY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU199505-199805

sub66110-37012

main66110-37010iYY211..LPG;YY101..T2..IV3;LY101..T2..ATM..IV3199505

sub66110-37012

main66110-95014iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

66121ABOLT, TAIL GATE MALE

main66121-95012iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

66280CCHAIN ASSY, TAIL GATE

main66280-25010iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T2,T3,TW1)..TS..CBU199505-199805

main66280-37010iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

main66280-37020iLY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU199505-199805

main66280-37020iYY211..LPG;YY101..T2..IV3;LY101..T2..ATM..IV3199505

66311JHOOK, ROPE

main66311-90K00iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

9161160816

main91611-60816

9326018014

main93260-18014

10 parts on this diagram · 4 diagrams in section
