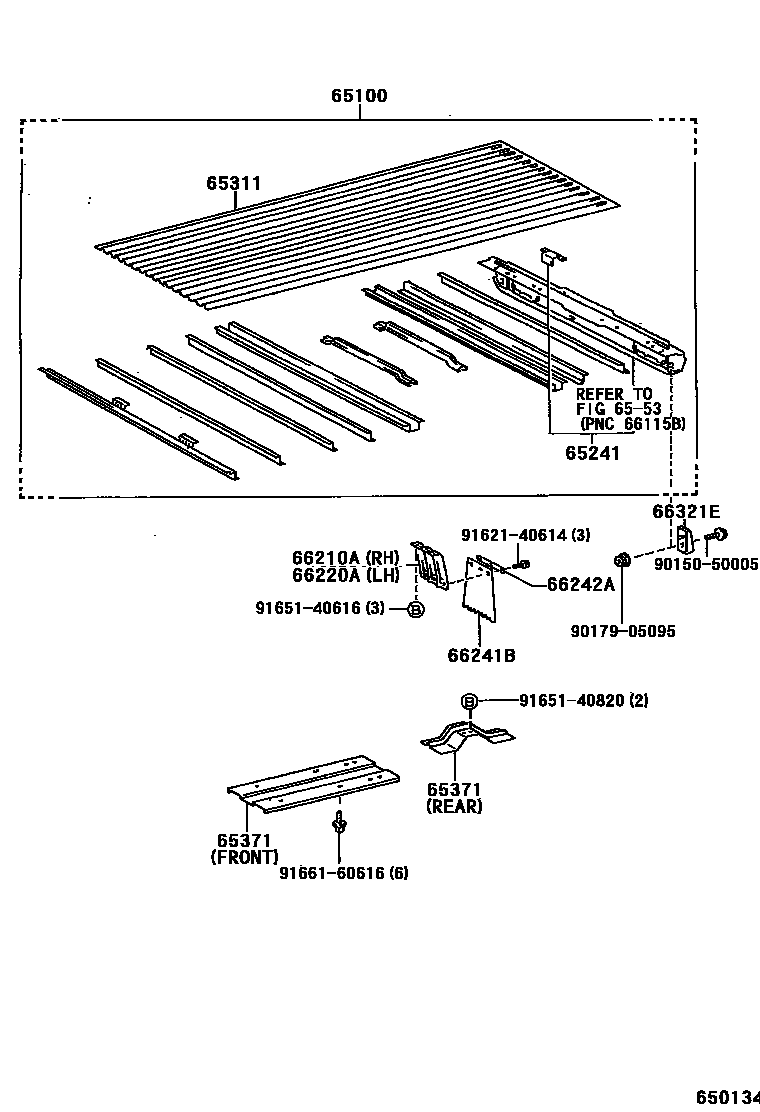

REAR BODY FLOOR & FENDER

0001 1 0002 1 0004 1 0005 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1

65100FLOOR ASSY, REAR BODY

main65100-25021iYY201..T2..TS..CBU199505-199610

main65100-25041iYY201..T1199505-199610

main65100-25051iYY201..1T..CBU199505-199610

main65100-25061iYY211..ST..125..CBU199505-199610

main65100-25071iYY211..TS..15T199505-199610

main65100-25161iLY201..T1199505-199610

sub65100-25041

main65100-25210iLY10#,YY101..T3..TS..MTM..CBU199610

sub65100-2E320

main65100-25220iLY201..1T..CBU199505-199610

sub65100-25051

main65100-25230iLY211..ST..125..CBU199505-199610

sub65100-25061

main65100-25260iLY211,YY211..T2..TB..CBU199505-199610

main65100-25270iLY211,YY211..T2..TB..MTM..WT..CBU199505-199610

main65100-25280iLY211,YY211..T2..TB..MTM..WT..CBU199505-199610

main65100-25290iLY21#,YY211..T3199505-199610

main65100-25300iLY211,YY211..T4..CBU199505-199708

sub65100-25840

main65100-25310iLY211,YY211..WT..125..CBU199505-199610

main65100-25320iLY15#..T3..TB199610

main65100-25330iLY15#..T2..TB199610

main65100-25340iLY10#..T2..TB;YY101..T2..IV3;LY10#..T2..ATM..IV3199610

main65100-25350iLY11#..T2..TB199610

main65100-25360iLY10#..T3..TB199610

main65100-25370iLY11#..T3..TB199610

main65100-25380iLY20#,YY201..ST199505-199610

main65100-25390iLY201,YY201..TB..WT199505-199610

main65100-25400iLY10#..T2..TB199610

main65100-25410iLY10#..T2..TB199610

main65100-25420iLY11#..T2..TB199610

main65100-25430iLY11#..T2..TB199610

main65100-25440iLY201..ST..15T..CBU199505-199610

main65100-25450iLY201..ST..15T..CBU199505-199610

main65100-25460iLY211..T3..MTM..CBU199505-199610

main65100-25470iLY211..T3..MTM..CBU199505-199610

main65100-25480iLY211..T4..MTM..CBU199505-199708

sub65100-25850

main65100-25490iLY211..T4..MTM..CBU199505-199708

sub65100-25860

main65100-25500iLY10#,YY101..T2..TS..CBU199610

main65100-25510iLY15#..T2..TS..CBU199610

sub65100-25770

main65100-25520iYY211..LPG199505-199708

sub65100-25870

main65100-25530iLY20#..WT199505-199610

sub65100-25021

main65100-25540iLY211..TS..15T199505-199610

sub65100-25071

main65100-25550iLY11#..T3..TS..CBU199610

main65100-25560iLY10#,YY101..T2..TS..CBU199610

sub65100-25500

main65100-25570iLY11#..T2..TS..MTM..CBU199610

sub65100-26041

main65100-25580iLY151..T2..TS..CBU;LY121..TS..15T..CBU199610-199703

sub65100-25770

main65100-25590iLY16#..T2..MTM..125..CBU199610-199703

sub65100-25790

main65100-25600iLY201..TS..15T..CBU199512-199610

sub65100-25021

main65100-25610iLY211..TS..15T199512-199610

sub65100-25071

main65100-25620iLY12#,YY121..ST..CBU199610

main65100-25630iLY12#,YY121..TB..WT199610

main65100-25640iLY13#,16#,YY131..T3..15T..CBU199610-199701

main65100-25650iLY13#,16#,YY131..T2..ST..15T..CBU199610-199701

main65100-25660iLY13#,YY131..WT..125..CBU199610

main65100-25670iLY161..T3..15T..CBU199610-199701

sub65100-25640

main65100-25680iLY161..T2..15T..CBU199610-199701

sub65100-25650

main65100-25690iLY16#..T2..ST..15T..CBU199610

main65100-25700iLY16#..T2..ST..15T..CBU199610

main65100-25710iLY12#..ST..CBU199610

main65100-25720iLY12#..ST..CBU199610

main65100-25730iLY13#..T3..MTM..CBU199610

main65100-25740iLY13#..T3..MTM..CBU199610

main65100-25750iYY131..ST..125..CBU199610

main65100-25760iLY13#,16#..TW2..ST..CBU199610

sub65100-25750

main65100-25770iYY121..TS..CBU199610

main65100-25780iLY12#..TS..CBU199610

sub65100-25770

main65100-25790iYY131..TS..15T199610

main65100-25800iLY13#..TS..15T199610

sub65100-25790

main65100-25810iLY13#,162,YY131..TB..WT..15T..CBU199610

main65100-25820iLY13#,162,YY131..TB..WT..15T..CBU199610

main65100-25830iLY13#,162,YY131..TB..WT..15T..CBU199610

main65100-25840iLY21#,YY211..CBU199708

main65100-25850iLY21#..MTM..CBU199708

main65100-25860iLY21#..MTM..CBU199708

main65100-25870iYY211..WT..125..CBR199905

main65100-25870iYY211..LPG199708

main65100-25880iLY12#..TS..15T..CBU199703

sub65100-25770

main65100-25890iLY13#..TS..15T199703

sub65100-25790

main65100-26010iLY11#,16#..1T199610

main65100-26020iLY16#..T3..125..CBU199610

main65100-26031iLY16#..T2..125..CBU199610

sub65100-25790

main65100-26041iLY11#..T2..TS..CBU199610

main65100-26090iLY10#,YY101..T1199610

main65100-26100iLY10#,15#,YY101..1T..CBU199610

main65100-95A23iLY10#,15#,YY101..T3..TS..CBU199610

65241SILL, REAR CROSS

main65240-26010iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

main65240-95A08iLY10#,11#,15#,16#,YY101..(T3,TW1)..TS..CBU199610

main65240-95A10iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..T2..TS..CBU199505-199805

65311PANEL, FLOOR, CENTER

main65311-25010iLY13#,16#,211,YY131,211..TW2..ST..CBU199505

main65311-25020iLY10#,15#,201,YY101,201..1T..CBU199505

main65311-26010iLY10#,201,YY101,201..T1199505

65371INSULATOR, REAR FLOOR

main65039-25010iYY131..TS..15T199610

main65371-25010iYY131,211..ST..125..CBU199505-199905

main65371-25010iYY131..ST..125..CBU199905

main65371-25020iYY121..TS..CBU199610

main65371-25020iYY201,211..TS..WT..CBU199505-199610

main65371-25020iYY131,201..TS..15T199610-199805

main65371-25030iYY201..WT199805

main65371-25030iYY201..TS..(125,15T)..CBU199505-199610

main65371-25040iYY211..TS..15T199505-199610

main65371-25050iYY201..1T..CBU199505-199610

main65371-25060iYY131..ST..125..CBU199505-199905

6553

66210AFENDER ASSY, REAR NO.1 RH

main66010-25040iLY201,211,YY201,211..TS..WT..CBU199505-199610

main66010-25050iLY12#,13#,YY121,131..TS..WT..CBU199610

main66010-95019iLY201,YY201..T2..ST..CBU199505-199610

main66205-95A01iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

sub66205-25010

main66210-25010iLY21#,YY211..T4..CBU199505

main66210-25020iLY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST199505-199805

main66210-25020iYY101..T2..IV3;LY101..T2..ATM..IV3199610

main66210-25030iLY121,131,201,211,YY121,131,201,211..(T2,TW2)..TB..WT..CBU199505-199805

main66210-25030iYY211..LPG199505

main66210-95A02iLY10#,11#,15#,16#,YY101..(T3,TW1)..TS..CBU199610

sub66210-25050

main66210-95A03iLY10#,11#,15#,16#,YY101..T2..TS..CBU199610

66220AFENDER ASSY, REAR NO.1 LH

main66020-95018iLY201,211,YY201,211..TS..WT..CBU199505-199610

main66020-95019iLY201,YY201..T2..ST..CBU199505-199610

main66020-95A05iLY12#,13#,YY121,131..TS..WT..CBU199610

main66205-95A01iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

sub66205-25010

main66220-25010iLY21#,YY211..T4..CBU199505

main66220-25020iLY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..ST..CBU199505-199805

main66220-25020iYY101..T2..IV3;LY101..T2..ATM..IV3199610

main66220-25030iYY211..LPG199505

main66220-25030iLY121,131,201,211,YY121,131,201,211..(T2,TW2)..TB..WT..CBU199505-199805

main66220-95A02iLY10#,11#,15#,16#,YY101..(T3,TW1)..TS..CBU199610

sub66220-25050

main66220-95A03iLY10#,11#,15#,16#,YY101..T2..TS..CBU199610

66241BBAFFLE, RUBBER

main66241-25040iYY101..T2..IV3;LY101..T2..ATM..IV3199610-200107

sub66241-25041

main66241-25040iLY211,YY211..T2..ST..CBU199505-200107

sub66241-25041

main66241-25050iYY211..LPG199505-200107

sub66241-25051

main66241-25050iLY21#,YY211..T2..WT..(CBR,DSL);LY12#,13#,162,21#,YY121,131,211..TB..WT..CBU199505-200107

sub66241-25051

main66241-25070iLY21#,YY211..T2..WT..(CBR,DSL);LY12#,13#,162,21#,YY121,131,211..TB..WT..CBU199505-200107

sub66241-25071

main66241-25070iYY211..LPG199505-200107

sub66241-25071

main66241-37090iLY201,211,YY201,211..T3..CBU199505-199508

main76625-25010iLY121,131,201,211,YY121,131,201,211..TS..WT..CBU199505-200107

230 X 280

sub76625-25011

main76625-25010iLY10#,11#,15#,16#,201,YY101,201..T2..TS..ST..CBU199505-200107

sub76625-25011

main76625-25020iLY121,131,201,211,YY121,131,201,211..TS..WT..CBU199505-200107

230 X 340

main76625-37010iLY10#,11#,13#,15#,16#,201,211,YY101,131,201,211..(T1,T3,TW1,TW2)..TS..CBU199505-200107

sub76625-25030

66242APLATE, BAFFLE RUBBER

main66242-25050iYY211..LPG199505

main66242-25050iLY21#,YY211..T2..WT..(CBR,DSL);LY12#,13#,162,21#,YY121,131,211..TB..WT..CBU199505-199805

main66242-25060iLY21#,YY211..T2..WT..(CBR,DSL);LY12#,13#,162,21#,YY121,131,211..TB..WT..CBU199505-199805

main66242-25060iYY211..LPG199505

main66242-37070iLY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..ST..CBU199505-199805

main66242-37070iYY101..T2..IV3;LY101..T2..ATM..IV3199610

main66242-95011iLY121,131,YY121,131..TS..WT..CBU199610-199805

main66242-95011iLY201,211,YY201,211..TS..WT..CBU199505-199610

main66242-95012iLY10#,11#,13#,15#,16#,201,211,YY101,131,201,211..(T1,T3,TW1,TW2)..TS..CBU199505

main66242-95A00iLY12#,YY121..TS..CBU;LY13#,20#,YY131,201..TS..15T199610-199805

main66242-95A00iLY201,211,YY201,211..TS..WT..CBU199505-199610

66321BUMPER, GATE RUBBER

main66321-92803iLY101,111,121,131,151,161,201,211,YY121,131,201,211..TB..CBU199505-199805

main66321-92803iYY211..LPG;YY101..T2..IV3;LY101..T2..ATM..IV3199505

66321EBUMPER, GATE RUBBER

main66321-25010iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T2,T3,TW1)..TS..CBU199505-199805

sub66321-25020

main66321-92805iLY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)199505-199905

main66321-92805iLY101,111,161..T2..TB..CBU;LY211..T2..TB..MTM..WT..CBU;LY131,YY131,211..T2..TB..WT..CBU;LY121,131,201,211..(T3,T4)..MTM..CBU199505

main66321-92805iLY101,111,161..T2..TB..CBU;LY211..T2..TB..MTM..WT..CBU;LY131,YY131,211..T2..TB..WT..CBU;LY121,131,201,211..(T3,T4)..MTM..CBU199505

main66321-95406iLY10#,13#,15#,16#,201,211,YY101,131,201,211..(T1,TW2)..ST..CBU199505

sub66321-37010

main66331-95010iLY101,111,121,131,151,161,201,211,YY101,121,131,201,211..(T2,T3,TW1)..TS..CBU199505-199805

main66331-95010iLY132,202..TS..15T;LY102,112,122,152,162..(T2,T3,TW1)..TS..CBU199905

main66331-95010iYY101..(T2,T3)..CBU;LY121,201..TS..15T..CBU;LY101..T3..TS..MTM..CBU;LY111,161..T2..TS..MTM..CBU;LY101,131,151,211..T2..TS..CBU199512

9015050005

main90150-50005

9017905095

main90179-05095

9162140614

main91621-40614

9165140616

main91651-40616

9165140820

main91651-40820

9166160616

main91661-60616
