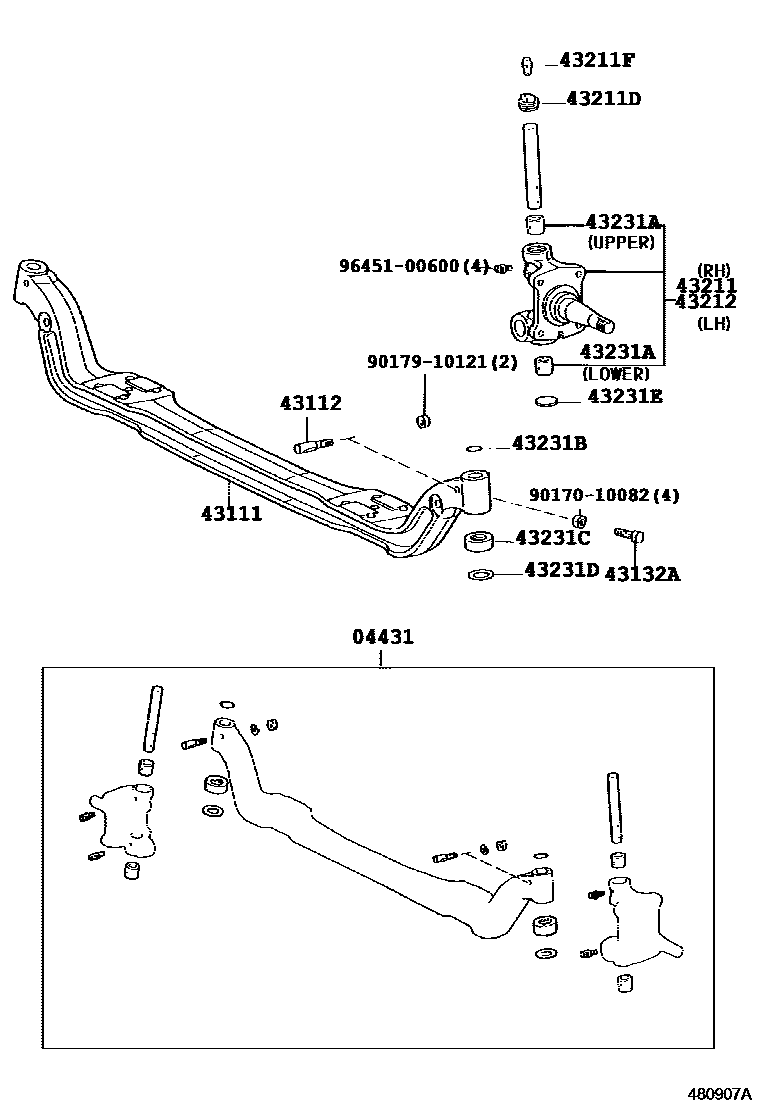

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1 0004 1

04431PIN KIT, STEERING KNUCKLE KING

main04431-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main04431-36041iLY21#,YY211..T4199505

43111I BEAM, FRONT AXLE

main43111-25041iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main43111-36090iLY21#,YY211..T4199505

43112PIN, KING PIN LOCK

main43112-25010iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main43112-36020iLY21#,YY211..T4199505

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-10005iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90106-12001iLY21#,YY211..T4199505

43211KNUCKLE, STEERING, RH

main43201-25070iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main43201-25080iLY12#,13#,YY121,131199610

main43201-26030iLY15#,16#199610

sub43201-26031

sub90304-76005

main43201-36090iLY21#,YY211..T4199505

main43211-26051iLY10#,11#,YY101199610

main43211-26120iLY11#..IV5199805

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33004iLY20#,21#,YY201,211199505

43211FPLUG, BLEEDER (FOR STEERING KNUCKLE)

main90930-03031iLY20#,21#,YY201,211199505

43212KNUCKLE, STEERING, LH

main43202-25060iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main43202-25070iLY12#,13#,YY121,131199610

main43202-26030iLY15#,16#199610

sub43202-26031

sub90304-76005

main43202-36080iLY21#,YY211..T4199505

main43212-26021iLY10#,11#,YY101199610

main43212-26090iLY11#..IV5199805

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73084iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

sub90999-73160

main90999-73085iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

sub90999-73159

main90999-73086iLY21#,YY211..T4199505

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96711-19025iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main96711-19028iLY21#,YY211..T4199505

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-25002iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90367-28001iLY21#,YY211..T4199505

43231DSHIM (FOR KING PIN)

main90564-25125iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90564-25126iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90564-25127iLY20#,21#,YY201,211..T1,T2,T3,TW2199505

main90564-28128iLY21#,YY211..T4199505

main90564-28129iLY21#,YY211..T4199505

main90564-28130iLY21#,YY211..T4199505

main90564-28131iLY21#,YY211..T4199505

main90564-28144iLY21#,YY211..T4199505

main90564-28145iLY21#,YY211..T4199505

43231EPLUG (FOR STEERING KNUCKLE)

main90345-33003iLY20#,21#,YY201,211199505

9017010082

main90170-10082

9017910121

main90179-10121

9645100600

main96451-00600

16 parts on this diagram · 4 diagrams in section
